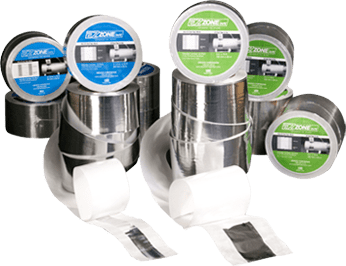

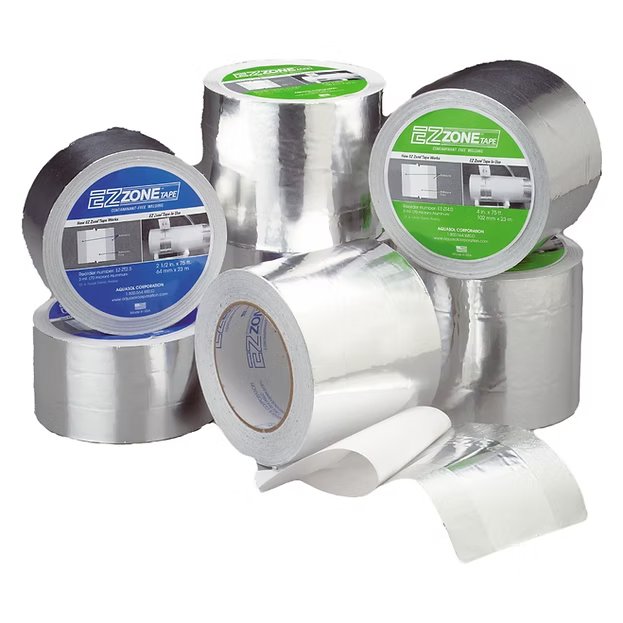

Aquasol Zone Tape Adhesive Free Centre Aluminium Tape

Features and Benefits

Contaminant Free Weld

• EZ Zone Tape eliminates the worry of adhesive contaminating the weld area when sealing the root gap between pipes because it is composed of two outside adhesive sections, separated by an adhesive-free center “zone”
• Only the adhesive-free “zone” is placed over the weld, therefore the adhesive never comes in contact with the pipe as it is welded; creating a clean, contaminant-free weld
• The “Zone” acts as a centering guide, making correct placement of tape and ensuring no adhesive contamination
• Reduces pipe clean-up time and avoids costly x-rays

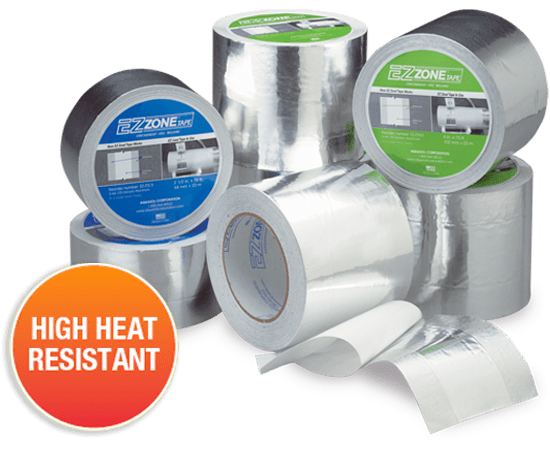

Flexible & Heat Resistant

• Malleable aluminum tape easily conform to a number of complex shapes and uneven surfaces including stainless steel and aluminum pipes
• Pressure-sensitive adhesive makes for easy application
• Adhesive portion of aluminum tape withstands temperatures up to 500°F (260°C)
• Aluminum foil portion of tape withstands temperatures up to 1100°F (593°C

High Quality and Safe Components

• EZ Zone Tape is free of halogens including fluoride, chloride and bromide as well as chlorofluorocarbon, increasingly important in today’s highly regulated safety environment

How EZ Zone Tapes Work

Clean

• Clean the weld area of all contaminants

Align

• Line up adhesive – free section of EZ Zone Tape over the root gap
• Adhesive sections of the EZ Zone Tape should be secured on each side of the root gap of the adjoining pipes

Introduce Gas

• Insert purge gas needle into root gap, ensuring connection to gas line
• Introduce noble gas, evacuating oxygen
• Commence welding when desired PPM level is achieved
