Argweld® PurgEye® 300 Nano Weld Purge Monitor®
Price on Application
Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.
Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.
+ 0% interest
+ Instant approval decisions
+ No extra charges – ever
Subject to status. Terms apply.
Couldn't load pickup availability
Small, Lightweight and Inexpensive

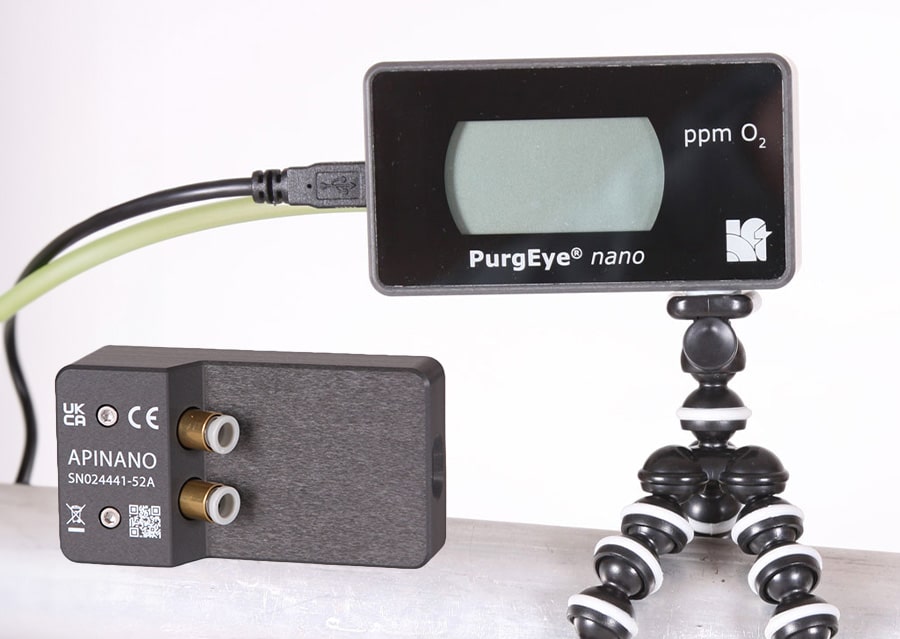

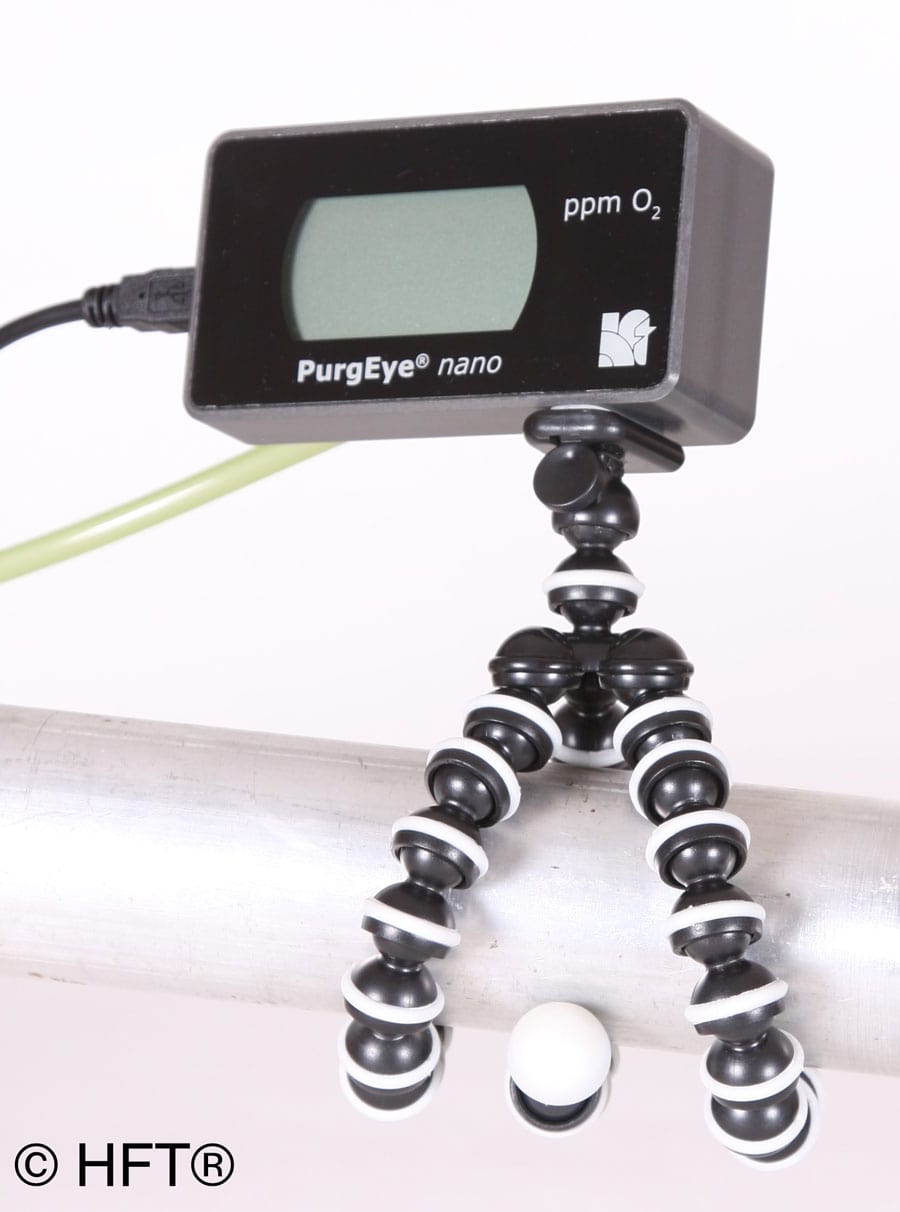

The Argweld PurgEye® 300 Nano Weld Purge Monitor® is small, lightweight and inexpensive.
The PurgEye® 300 Nano is equipped with an integrally mounted sensor to eliminate electrical interference.
The PurgEye® 300 Nano is specifically developed for weld purging of critical stainless steel and titanium joints and others where data logging, alarms and welder control are not necessarily required.
The PurgEye® 300 Nano is perfect for operation with manual welding, orbital welders, welding enclosures, pipe welding, chamber welding, duplex steel and titanium welding and ideal for welding stainless steel in ultra clean applications.
The PurgEye® 300 Nano has secure 'leak tight' connectors for weld purge hoses. Also, the instrument can be used with optional accessory hand pump and gas sampling probe.
The PurgEye® 300 Nano has low repair, refurbishment and re-calibration costs. There is no pump needed and hence there are no moving parts to fail.
Technical Data and Specifications
The PurgEye® 300 Nano has an operating voltage of AC 115/230 V single phase 50/60Hz. The unit uses an external 12 V Power Supply Unit with an input voltage range of AC 90 to 260 V (included).
The PurgEye® 300 Nano has a large alpha-numeric display.
Display readings can only be shown in ppm.
The PurgEye® 300 Nano has a warm up time of less than 60 seconds.
Supplied with:
External 12 V Power Supply Unit (including multiple international mains adaptor connections)
Sample tube set (40 cm red tubing and 1 metre green tubing)
User instruction booklet
Storage and presentation case
Calibration Certificate for the purpose of Quality Control Procedures and Management Systems
Argweld® PurgEye® 300 Nano Weld Purge Monitor® Accuracy Range
