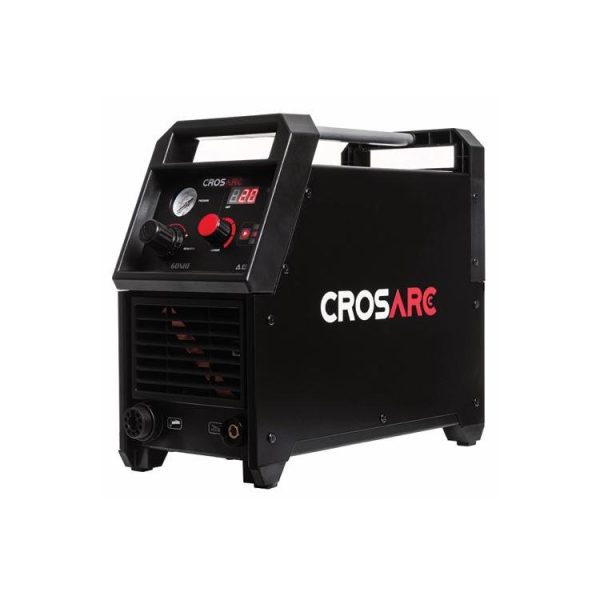

Cros Arc 61 NHF Plasma Cutter

• Current range: 20 – 60 Amps
• 230V 1Ph Power supply
• Weight: 20Kg

Cros Arc Plasma 61 Cutter – Three Phase

The Cros Arc Plasma 61 NHF Cutter is a single phase inverter based plasma cutter.  Capable of cutting materials such as steel, stainless steel and aluminium up to a depth of 20mm (clean cut) or around 25mm (severance cut). This lightweight portable unit weighs 20kg and is supplied with a 6 meter PT60 plasma torch, earth return lead and clamp, plus a 16A plug.  This unit has a digital amp display and is generator friendly.

Offering NHF (No High Frequency) ignition functionality, the plasma arc is initiated without the requirement for high-frequency voltage.  The Cros Arc 61 NHF plasma cutter also features 2T / 4T technology which allows for a single press of the torch button to made to initiate the arc and then a single press of the torch button at the end of the pass to stop (when in 4T mode).  In 2T the torch button needs to be held down through the cutting process.

This IGBT inverter power source is highly efficient, and equipped with air pressure adjustment.  Optional extras include a circle cutting attachment (SCP2550) and inverter trolley (CAP0216).

Features:

• Latest IGBT Inverter Power Source

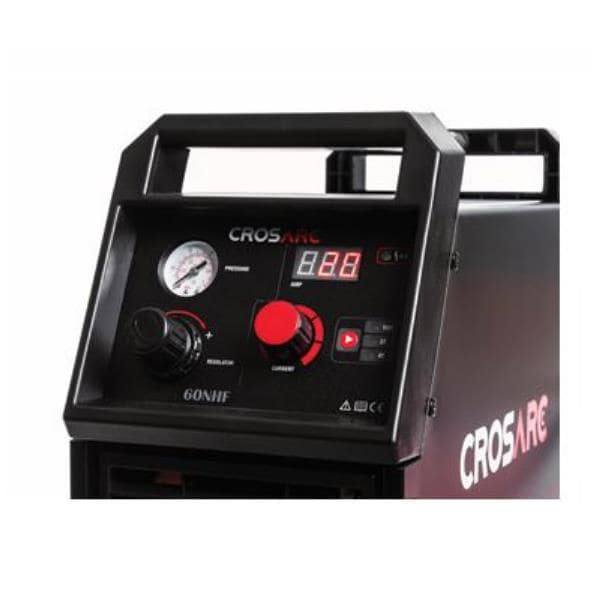

• Digital Amp Display
• 20mm Clean Cut
• Air Pressure Adjustment
• Portable
• Generator Friendly
• Easy Set Up & Operation

Functions:

• Plasma Cutting
• 2T/4T

Package includes:

• 61 NHF Inverter Power Source
• 6 Mtr PT60 Plasma Cutting Torch
• Earth Return Lead & Clamp

Options:

• Circle Cutting Attachment (SCP2550)
• Inverter Trolley (CAP0216)
