Cros-Arc Crosarc Mig 393S - Aircooled

Package Includes:

• Cros Arc 393S Inverter Power Source
• M4-4 Metre MIG Welding Torch
• 5 Metre Interconnecting Cables
• Earth Return Lead & Clamp
• Gas Hose

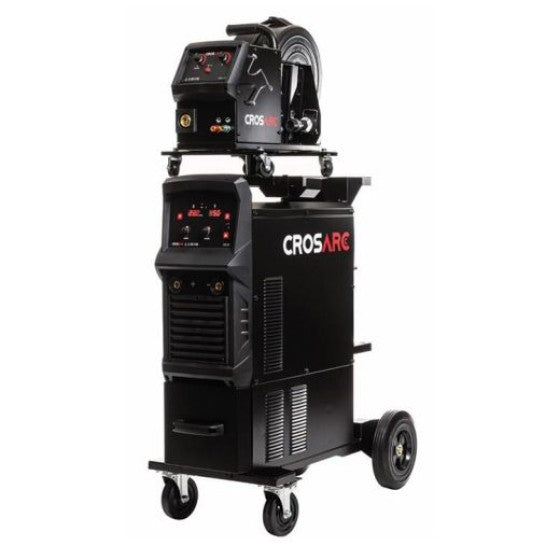

Cros Arc 393S MIG Welding Inverter with Separate Wire Feed – Air Cooled

The Cros Arc 393S Air Cooled MIG inverter welder with separate wire feed unit is a robust and versatile solution for a wide range of welding tasks. Whether you're tackling industrial metalwork, automotive repair, sheet metal fabrication, or maintenance jobs, this machine delivers outstanding performance with an amperage range of 30–350A.

Thanks to its separate wire feeder, you gain greater mobility and safer working conditions — simply move the wire feeder to the job, ideal for projects like boat building or truck repairs where access is restricted.

Built using the latest IGBT inverter technology, the 393S offers an incredibly stable arc and superb weld characteristics. It can also be used for MMA/Arc welding with electrode sizes from 1.6mm to 5.0mm, ensuring you have maximum flexibility for your projects. Its 4-roll wire feed system guarantees a smooth, stable feed, even with aluminium MIG wires or long torches.

The 393S is fully adjustable across all welding parameters, empowering you to find your ideal settings easily.

This is ideal for:

• Maintenance & repair work
  Automotive repairs
  Sheet metal fabrication
  Industrial welding projects

What does it weld?

Mild Steel
Stainless Steel
Aluminium

Features

• Latest IGBT Inverter Technology
• Digital Volt/Amp Display
• Independent Voltage and Amperage Adjustment
• 4 Roll Wire Feed Unit for enhanced wire control
• Suitable for 0.6mm, 0.8mm, 1.0mm & 1.2mm Wires
• Trolley Mounted with integrated gas bottle tray
• Easy Setup and Operation
• Capable of MIG/MAG and MMA Welding
• Fully Adjustable Welding Parameters for Maximum Control
• Separate Wire Feed Unit for Improved Accessibility
• Smooth and Stable Arc Characteristics

Technical Specifications

Input Voltage      3P~400V (+/-20%) 50/60Hz
Input Current      25A
Current Range    30–350A
Voltage Adjustment Range   12–38V
Duty Cycle @ 40°C   350A @ 60%
Wire Speed (m/min)   0–24
Arc Adjustment  -9 soft to +9 hard (default 0)
Efficiency (%)  87%
Power Factor @ 100%   0.90
Protection/Insulation Class    IP23/F
Dimensions (mm)    685 x 300 x 560
Weight (Kg)    103
Conforms to   EN IEC 60974-10:2021 / EN IEC 60974-1:2022
Approvals  CE / UKCA

Warranty
Supplied with a 2-year warranty for your peace of mind.
