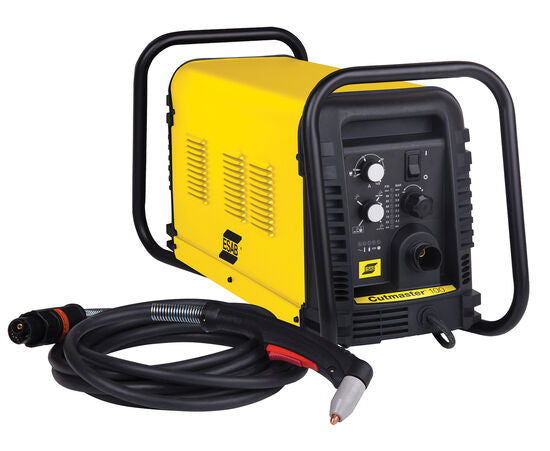

The ESAB Cutmaster 100 weighs in at 28 kg and provides 100 amps of cutting power. This unit’s light weight compact design makes it the most portable and powerful cutting machine available. This unit combined with the 1Torch® has a maximum cut capacity of 45 mm (1 3/4"). More cut capacity than any other system in its class! Packages include power source, SL100 1Torch, spare parts kit, air filter/regulator, work cable and clamp and power cable.
Highlights
- True CutTM – 35mm (1-3/8”)
- Quick Disconnect Torch for easy maintenance or machine torch conversion
- Auto-Restrike on mesh or expanded metal for maximum productivity
- True-GuardTM roll bar for ultimate protection
- TD Surelok® technology for better quality cuts and longer parts life
Industries
- Heavy Fabrication
- Ship/Barge Building
- Civil Construction
- General Manufacturing
- Pipeline
- Mining
Specifications
| Specifications | |
|---|---|
| Recommended Generator | 12 kW |
| Input Volts | 400 V, 3 Φ, 50/60 Hz |
| Duty Cycle |
100 A @ 80 % % welding duty cycle |
| Input Voltage | 27 A @ 400 V / 400 V |
| Gas Pressure | 5.2 bar |
| Gas Flow | 212 l/min |
| Pierces | 20 mm |
| Torch Air Pressure | 5.2 bar |
| Torch Air Consumption | 212 l/min |
| Dimensions, L x W x H |
762 x 305 x 381 mm |
| Weight | 28.1 kg |
| Recommended Cut | 35 mm |
| Maximum Cut | 45 mm |
