ESAB Cutmaster 120 Plasma Cutter with 6m SL100 Hand Torch, 40mm Cut, 400v 3ph CE
Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.
Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.
+ 0% interest
+ Instant approval decisions
+ No extra charges – ever
Subject to status. Terms apply.
Couldn't load pickup availability

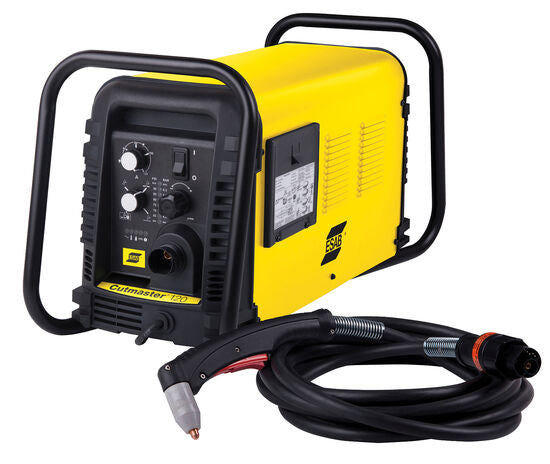

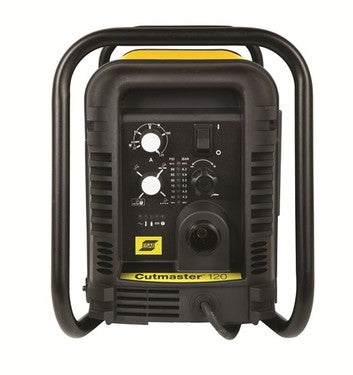

The ESAB Cutmaster 120, weighing only 28 kg and provides 120 amps of cutting power for a 40mm (1-1/2”) recommended cut and 55mm (2-1/8”) maximum cut. This compact unit, like all other Cutmasters, comes standard with the 1Torch® providing you with the well known comfort and reliability famous throughout the industry. Packages include power source, SL100 1Torch, spare parts kit, air filter/regulator, work cable and clamp and power cable.
Highlights
- True CutTM– 40mm 1-1/2”)
- Quick Disconnect Torch for easy maintenance or machine torch conversion
- Auto-Restrike on mesh or expanded metal for maximum productivity
- True-GuardTM roll bar for ultimate protection
- TD Surelok® technology for better quality cuts and parts life
Industries
- Heavy Fabrication
- Ship/Barge Building
- General Manufacturing
- Civil Construction
- Pipeline
- Mining
Specifications
| Specifications | |
|---|---|
| Recommended Generator | 15.4 kW |
| Input Volts | 400 V, 3 Φ, 50/60 Hz |
| Duty Cycle |
120 A @ 40 % % welding duty cycle |
| Input Voltage | 32 A @ 400 V / 400 V |
| Gas Pressure | 5.2 bar |
| Gas Flow | 212 l/min |
| Pierces | 25 mm |
| Torch Air Pressure | 5.2 bar |
| Torch Air Consumption | 212 l/min |
| Dimensions, L x W x H |
762 x 305 x 381 mm |
| Weight | 28.1 kg |
| Recommended Cut | 40 mm |
| Maximum Cut | 55 mm |
