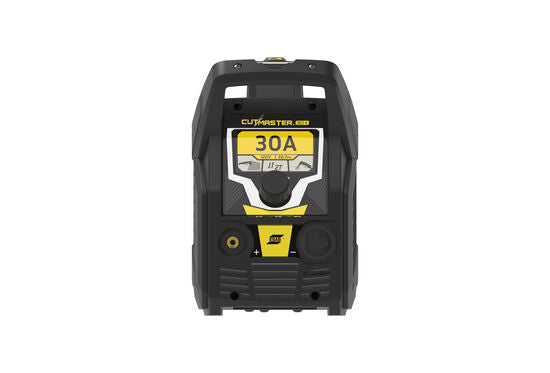

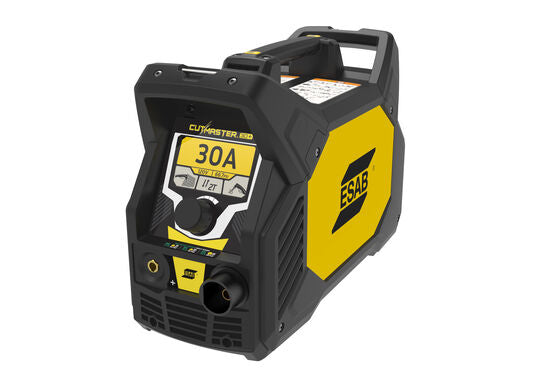

ESAB Cutmaster 30+

Cutmaster 30+ is the perfect combination of power and portability for hand-held plasma cutting machine. Plus means more, so we’ve added a user-friendly 10.9 cm TFT LCD screen and upgraded features that give you even more control and flexibility to master any cut up to 12 mm. Together with the SL60 1Torch, it all adds up to the total plasma cutting package.

Pierce Capacity: 10 mmCutting Capacity: 12 mmMaximum Severance: 16 mmResults may vary based on material used.

Highlights

• Portable and durable with three handles and lightweight, industrial all-weather housing
• Bright 10.9 cm TFT LCD display with glove-friendly adjustment knob simplifies use and provides greater control and flexibility
• Automatic voltage detection that sets max output amperage
• Includes industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air
• Switch between normal and grate cutting modes
• Compatible with all ATC torch connections
• Includes a complete package of general cutting and gouging consumables for most applications
• Post-cut air purge to expand consumable life
• Industry leading 3-year warranty on power supply and 1-year warranty on torch and leads

Industries

• Industrial and General Fabrication
• Light Fabrication
• Industrial Production & Manufacturing
• Automotive Bodies
• Hobbyist
• Agricultural Equipment
• HVAC
• Repair and Maintenance
• Pipeline
• Training Schools

Features and Benefits

Power + Portability.

Tackle cuts in any terrain with industrial housing and a compact design.

• Pierce and cut capacity of 3/8 in. and a maximum edge cut capacity of 5/8 in.

• 40% duty cycle at 30 A and 100% duty cycle at 20 A

• Runs on both 110 and 240 V input with auto-voltage detection

• Lightweight design with three handles for easy transportation

• Durable, weather-protected IP23S housing

Efficiency + Ease.

Mastering cuts is simple with our user-friendly TFT LCD screen.

• Bright 4.3 in. screen is optimal for displaying settings and making adjustments

• Adjustable 2T/4T trigger lock to achieve long cuts by hand or with MechPak

• Automatic air pressure recognition and purging for proper cutting pressure and extended consumable life

• Comes standard with long-lasting Cutmaster Black Series electrodes

Simplicity + Flexibility.

Dominate any plasma cutting job with built-in functionality and flexibility.

• Switch from normal plate to grate cutting mode to extend consumable life when working with expanded metal

• Equipped with SL60TM 1Torch® and a full range of consumables for both shielded and unshielded cutting and gouging
