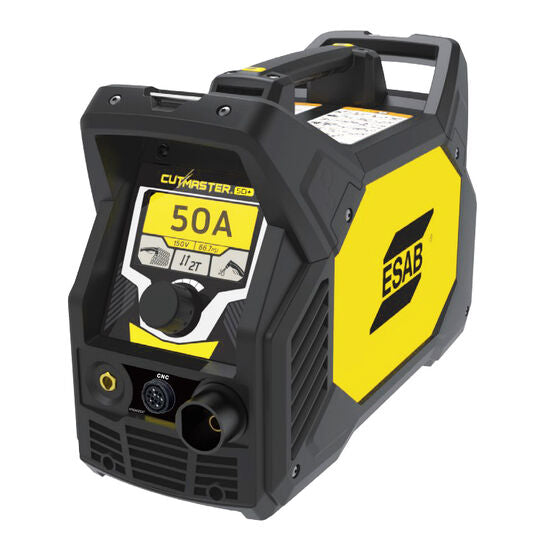

Cutmaster 50+ is the perfect combination of power and portability for hand-held plasma cutting machines. Plus means more, so we’ve added a user-friendly 10.9 cm TFT LCD screen and upgraded features that give you even more control and flexibility to master any pierce and cut up to 25 mm. Together with the SL60 1Torch, it all adds up to the total plasma cutting package.Pierce Capacity: 16 mmCutting Capacity: 25 mmMaximum Severance: 32 mmResults may vary based on material used.
Highlights
- Portable and durable with three handles and lightweight, industrial all-weather housing

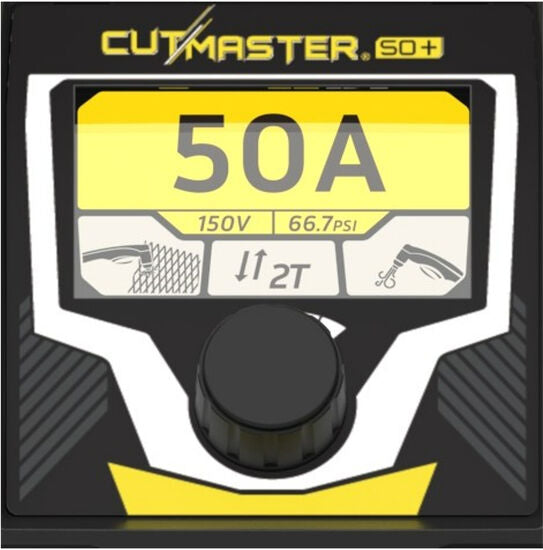

- Bright 10.9 cm TFT LCD display with glove-friendly adjustment knob simplifies use and provides greater control and flexibility
- Input 400 V, 3-phase power
- Comes with industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air
- Switch between normal and grate cutting modes
- Compatible with all ATC torch connections
- Includes a complete package of general cutting and gouging consumables for most applications
- Post-cut air purge to expand consumable life
- Industry leading 3-year warranty on power supply and 1-year warranty on torch and leads
- CNC functionality with pre-installed 14 pin CPC receptacle and voltage divider which allows:
1. Start/Stop
2. OK to Move
3. Divided arc voltage (ratio 20:1, 30:1, 40:1, 50:1, 80:1)
Industries
- Industrial and General Fabrication
- Automotive
- Light Fabrication
- Automotive Bodies
- Hobbyist
- HVAC
- Agricultural Equipment
- Repair and Maintenance
- Pipeline
- Training Schools
| Specifications | |
|---|---|
| Amp Low - High | 10 A - 50 A, Continuously adjustable |
| Recommended Generator | 12+ kW |
| Input Volts | 400 VAC, 3 Φ, 50/60 Hz |
| Duty Cycle |
40 A @ 100 % % welding duty cycle 50 A @ 60 % % welding duty cycle |
| Operating Temperature | -10 – 50 °C |
| Gas Requirements | Compressed air: Clean, dry, oil-free per ISO 8573-1 Class 1.2.2 Compressed Nitrogen: 99.95% pureCompressed Nitrogen: 99.95% pure |
| Gas Pressure | 6.2 –8.6 bar |
| Gas Flow | 142 –235 l/min |
| Pierces | 16 mm |
| Enclosure Class | IP23S |
| Certification | CE, UKCA |
| Dimensions, L x W x H |
465 x 200 x 315 mm |
| Weight | 16.5 kg |
| Maximum Cut | 25 mm |
| Maximum Edge Start | 32 mm |
