ESAB Cutmaster 70+ Plasma Cutter with 6.1m SL60 Hand Torch, 19mm Cut, 400v 3ph CE
Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.
Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.
+ 0% interest
+ Instant approval decisions
+ No extra charges – ever
Subject to status. Terms apply.
Couldn't load pickup availability

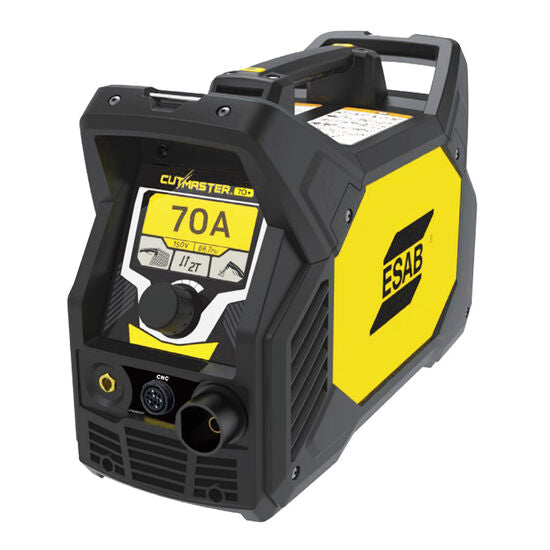

Cutmaster 70+ is the perfect combination of power and portability for hand-held plasma cutting machines. Plus means more, so we’ve added a user-friendly 10.9 cm TFT LCD screen and upgraded features that give you even more control and flexibility to master any cut up to 30 mm. Together with the SL60 1Torch, it all adds up to the total plasma cutting package.
Pierce Capacity: 20 mmCutting Capacity: 30 mmMaximum Severance: 38 mm
Results may vary based on material used.
Highlights
- Portable and durable with three handles and lightweight, industrial all-weather housing

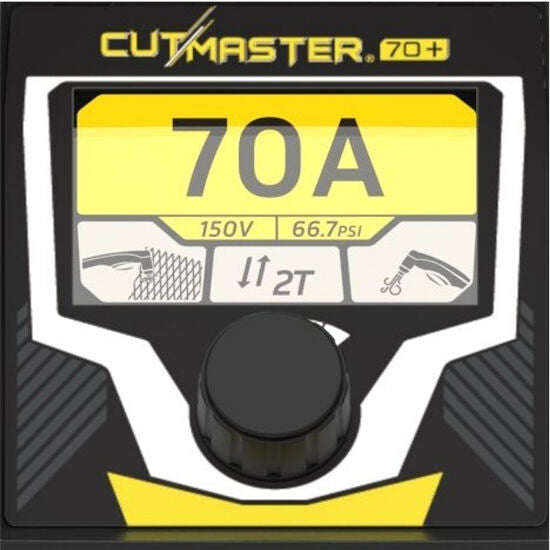

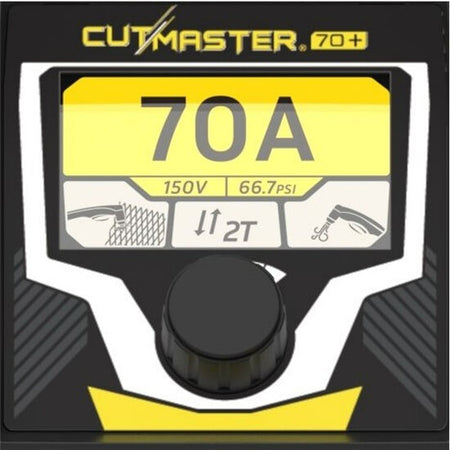

- Bright 10.9 cm TFT LCD display with glove-friendly adjustment knob simplifies use and provides greater control and flexibility
- Input 400 V, 3-phase power
- Includes industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air
- Switch between normal and grate cutting modes
- Post-cut air purge to expand consumable life
- Compatible with all ATC torch connections
- Includes a complete package of general cutting and gouging consumables for most applications
- Industry leading 3-year warranty on power supply and 1-year warranty on torch and leads
- CNC functionality with pre-installed 14 pin CPC receptacle and voltage divider which allows:
- Start/Stop
- OK to Move
- Divided arc voltage (ratio 20:1, 30:1, 40:1, 50:1, 80:1)
Industries
- Industrial and General Fabrication
- Industrial Production & Manufacturing
- Light Fabrication
- Automotive Bodies
- Hobbyist
- HVAC
- Agricultural Equipment
- Repair and Maintenance
- Pipeline
- Training Schools
Specifications
| Specifications | |
|---|---|
| Amp Low - High | 15 A - 70 A, continuously adjustable |
| Recommended Generator | 20+ kW |
| Input Volts | 400 VAC, 3 Φ, 50/60 Hz |
| Duty Cycle |
50 A @ 100 % % welding duty cycle 70 A @ 50 % % welding duty cycle |
| Operating Temperature | -10 – 50 °C |
| Gas Requirements | Compressed Nitrogen : 99.95% pureCompressed air Clean, dry, oil-free per ISO 8573-1 Class 1.2.2 |
| Gas Pressure | 6.2 –8.6 bar |
| Gas Flow | 142 –235 l/min |
| Pierces | 20 mm |
| Enclosure Class | IP23S |
| Certification | CE, UKCA |
| Dimensions, L x W x H |
465 x 200 x 315 mm |
| Weight | 17 kg |
| Maximum Cut | 30 mm |
| Maximum Edge Start | 38 mm |
* Depending on material
