Hand-held, light and portable power source for plasma cutting with a 220/ 230V 50/60Hz single phase power supply.
Very simple to use and with a colour LCD panel and all adjustments in just one knob.
No need to adjust the gas the machine automatically detects the inlet and outlet pressure. An automatic system purges gas after cutting, increasing the useful life of the consumables.

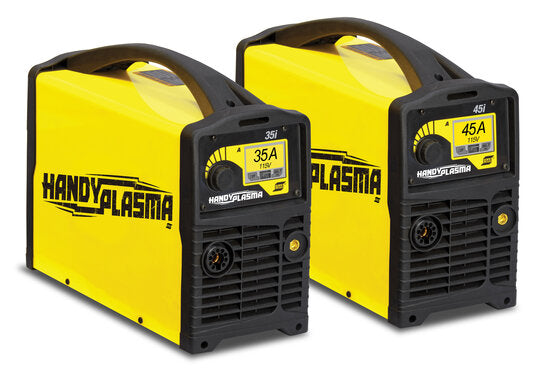

Available in two versions:
HandyPlasma35i
Recommended cutting capacity = 6 mm
Maximum cutting capacity = 12 mm
HandyPlasma45i
Recommended cutting capacity = 10 mm
Maximum cutting capacity = 16 mm
Highlights
- Light and portable, weighing only 13.5 kg (including torch)
- Easy to use 2.8 in. colour LCD panel, with all adjustments in just one knob

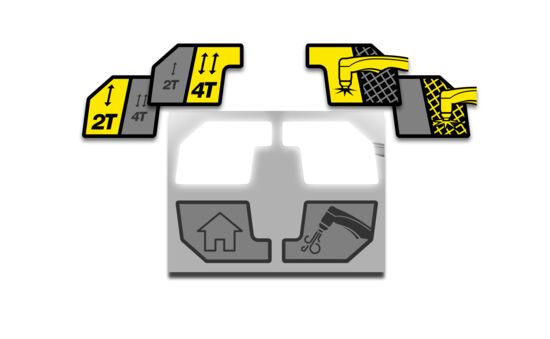

- Torch trigger 2T/4T function
- Torch trigger lock for greater safety
- Grate or plate cutting functions
- Comes with torch included
- Two-year guarantee for the power source and three months for the torch
Industries
- General Manufacturing
- Hobbyist
- Transportation
- Agricultural Equipment
- Civil Construction
- Industrial and General Fabrication
- Repair and Maintenance
Specifications
| 35i | 45i | |||
|---|---|---|---|---|
| Recommended Generator | 8 kVA |
9 kVA |
||
| Input Volts | 220 VAC, 1 Φ, 50/60 Hz |
220 VAC, 1 Φ, 50/60 Hz |
||
| Output Current AC | 35 A, | 45 A, | ||
| Duty Cycle |
35 A @ 35 % % welding duty cycle |
45 A @ 35 % % welding duty cycle |
||
| Gas Pressure | 7.3 bar | |||
| Gas Flow | 110 l/min | |||
| Pierces Mild Steel Stainless Steel Aluminium |
||||
| Torch Air Pressure | 4.6 bar |
4.6 bar |
||
| Enclosure Class | IP21C |
|||
| Certification | CE | |||
| Dimensions, L x W x H | 415 x 176 x 324 mm |
415 x 176 x 324 mm |
||
| Weight | 11.8 (13.5) kg |
11.8 (13.5) kg |
||
| Recommended Cut Mild Steel Stainless Steel Aluminium |
||||
| Maximum Cut Mild Steel Stainless Steel Aluminium |
12 mm 10 mm 8 mm |
16 mm |
||
