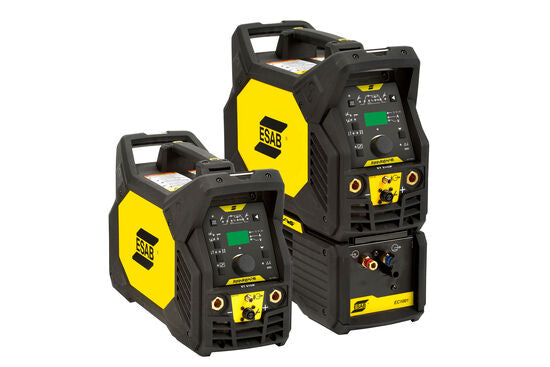

ESAB Renegade ET 210iP Ready To Weld Water-Cooled Package with 4m TIG Torch - 115 / 230v, 1ph
Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.
Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.
+ 0% interest
+ Instant approval decisions
+ No extra charges – ever
Subject to status. Terms apply.
Couldn't load pickup availability
Renegade ET is a professional single phase, high frequency start TIG and MMA welding machine with the most resistant IP23 housing designed to be used in demanding environments. Equipped with a high-quality carry strap with multiple lift points, Renegade is ready to move with you when portability is required.Renegade ET have a build in active PFC circuit that allow to work perfectly even on a poor-quality power supply and on very long extension cables (up to 100 m).Superior weld quality is a priority in this range, additionally supported by direct access to wide parameters selection on simple and intuitive user interface makes machine very easy to work with.
Highlights
- Highest durability housing with IP23 for indoor and outdoor use
- TIG Pulse up to 999 Hz to increase control of heat input and weld pool
- PFC for stable arc even with extra long mains cable, up to 100 m
- Easy to read and quick to set panel increasing the accuracy and reduces the down time
- Dual-current mode trigger functionality to switch between two output current levels which controls the heat input and size of the weld pool
- Modular system with tool-less connection to water cooler and trolley
- ESAB SR-B TIG torch included
Industries
- Civil Construction
- Heavy Fabrication
- Industrial and General Fabrication
- Pipe Construction
- Repair and Maintenance
- Ship and Offshore Yards
- Steel Erectors
- Mining
Process
- GTAW (TIG)
- GTAW-DC (TIG DC)
- SMAW/MMA (Stick)
| Specifications | |
|---|---|
| Input Voltage | 115/230 VAC ±15 %, 1 Φ, 50/60 Hz |
| MMA Welding Output | 110 A24.4 V (115 VAC) @ 25 % Duty Cycle 71 A22.8 V (115 VAC) @ 60 % Duty Cycle 55 A22.2 V (115 VAC) @ 100 % Duty Cycle 210 A28.4 V (230 VAC) @ 25 % Duty Cycle 135 A25.4 V (230 VAC) @ 60 % Duty Cycle 105 A24.2 V (230 VAC) @ 100 % Duty Cycle |
| TIG Welding Output | 140 A15.6 V (115 VAC) @ 25 % Duty Cycle 90 A13.6 V (115 VAC) @ 60 % Duty Cycle 70 A12.8 V (115 VAC) @ 100 % Duty Cycle 210 A18.4 V (230 VAC) @ 25 % Duty Cycle 135 A15.4 V (230 VAC) @ 60 % Duty Cycle 105 A14.2 V (230 VAC) @ 100 % Duty Cycle |
| Setting Range |
20.6-28.4 V (15-180 A) 20.6-24.4 V (15-110 A) 10.4-18.4 V (10-210 A) 10.4-15.6 V (10-140 A) |
| Open Circuit Voltage | 78 VDC |
| Power Factor at Maximum Current | 0.99 |
| Fuse Slow | 16 A |
| Energy Save Mode | <30 W |
| Supply Plug | CEE 16 A |
| Operating Temp | -10 to +40 °C |
| rated kVA | 6 kVA 3.3 kVA |
| Enclosure Class | IP23 |
| Dimensions, L x W x H |
460 x 200 x 320 mm |
| Weight | 11 kg |
