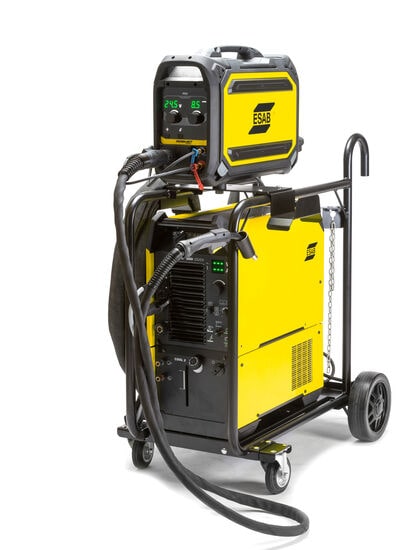

ESAB Warrior 400i Multi Process Air-Cooled Welder Package
Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.
Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.
+ 0% interest
+ Instant approval decisions
+ No extra charges – ever
Subject to status. Terms apply.
Couldn't load pickup availability
With Warrior, You’ll be Ready for Anything
You’re not an ordinary welder. You need the right tool to master your work. With Warrior, you’ll get the arc welding features you need for any job and the unparalleled innovation you expect from ESAB. This multi-purpose machine is designed for MIG, Flux-Cored, Stick and TIG welding and ACAG – with up to 500 amps at 60% duty cycle.
Warrior Stands Tough…Yet is so Easy to Use.
Having power, gas, and control in an all-in-one bundle with quick disconnect will slash your set-up time and get you welding quicker. And, because they're housed in a tough, protective cover, your cables will last longer. Plus, once you’re working, all your controls are right on the front panel for easy access. It even offers a sun-friendly display you can read outside, making your job simpler.
Outstanding Performance at an Affordable Price.
Warrior offers increased energy efficiency, while also giving you more power from a lighter, smaller, and more portable unit. Simply put, it provides the functionality welders want at a competitive price. For long runs across a variety of applications, this machine works as hard as you do with a high-duty cycle. And, with total arc control – hot start, arc force, and inductance settings – you can optimize the welder for the job
Specifications
Specifications | |
---|---|
Input Voltage | 380-415 V ±10 %, 3, 50/60 Hz |
MIG/MAG Welding Output | 400 A34 V @ 60 % Duty Cycle 300 A29 V @ 100 % Duty Cycle 500 A39 V @ 60 % Duty Cycle 400 A26 V @ 100 % Duty Cycle |
MMA Welding Output | 400 A36 V @ 60 % Duty Cycle 300 A32 V @ 100 % Duty Cycle 500 A40 V @ 60 % Duty Cycle 400 A36 V @ 100 % Duty Cycle |
TIG Welding Output | 400 A26 V @ 60 % Duty Cycle 300 A22 V @ 100 % Duty Cycle 500 A30 V @ 60 % Duty Cycle 400 A26 V @ 100 % Duty Cycle |
Current Range | 16-500 (TIG 5-500) A 16-400 (TIG 5-400) A |
Open Circuit Voltage | 56 (VRD 28) VDC |
Power Factor at Maximum Current | 0.91 |
Efficiency at Maximum Current | 90 % |
Fuse Slow | 25 A 32 A |
Energy Save Mode | 30 W |
Operating Temp | -10 to +40 °C |
MCableX | 4x6 |
Enclosure Class | IP23 |
Certification | CE |
Description or Qualifier | 712 mm |
Dimensions, L x W x H w/Cooling Unit |
712 x 325 x 700 mm 712 x 325 x 470 mm |
Weight | 59 kg 74 kg |
