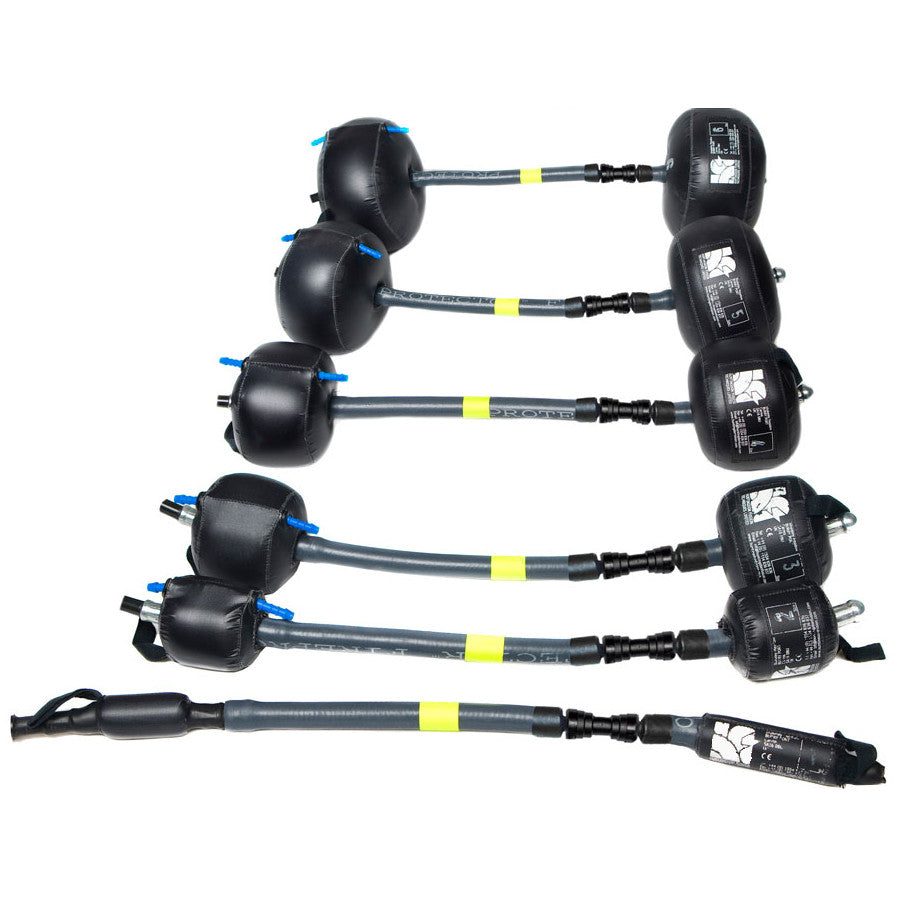

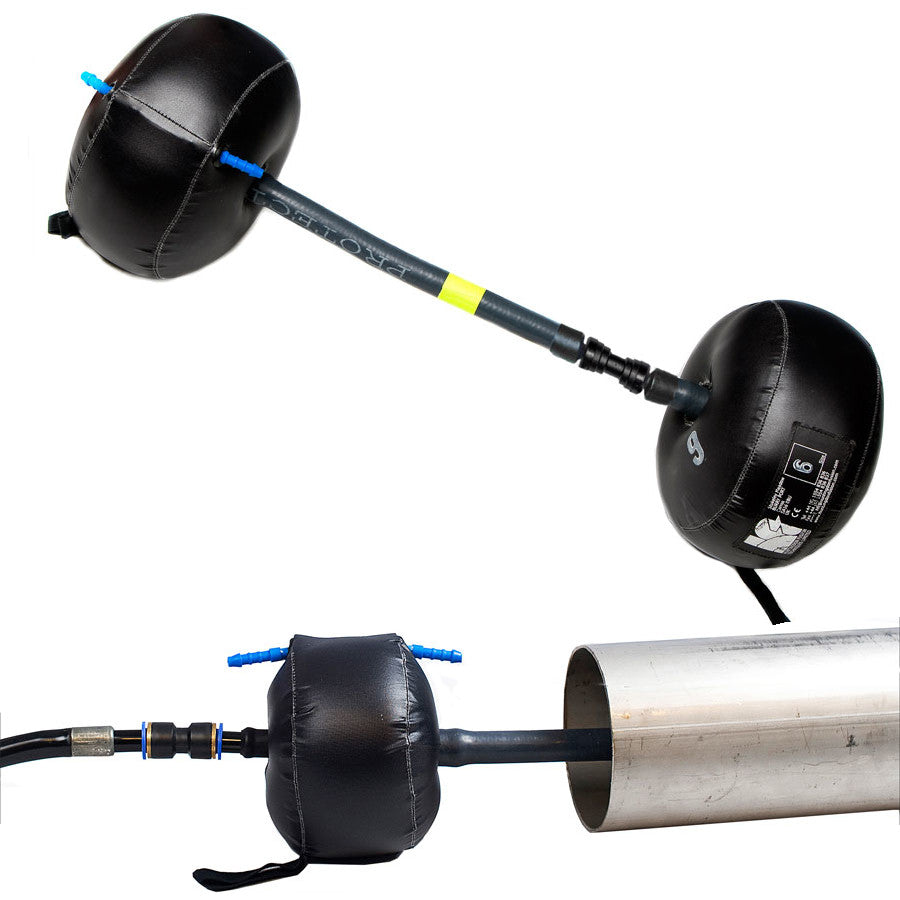

The Argweld Purge Elite range of inflatable weld purge systems from Huntingdon Fusion Techniques (HFT) is designed for nominal diameter pipes and tubes from 25mm to 600mm (1" - 24").
This simple and easy to fit system features quick fit connectors for a gas tight seal and inflates from one line which removes the risk of bursting due to excessive pressure.
These reusable Argweld purge systems will deliver a quick payback on your investment through faster set up and purging times, along with a significant reduction in the volume of inert gas used.
Benefits:
- No metallic parts to scratch internal polished pipes
- Innovative purge gas feed device
- Reduced set up time for increased efficiency
- No risk of bursting due to over inflation
- Only needs one hose from inert gas supply
- Luminous glow strip for accurate positioning
HFT Purge Elite Product Data
Part No. |
Nominal |
Int. Dia. Range |
PL10001 |
1" - 25mm |
13 - 38mm |
PL10001.5 |
1.5" - 38mm |
32 - 45mm |
PL10002 |
2" - 51mm |
38 - 64mm |
PL10003 |
3" - 76mm |
64 - 89mm |
PL10004 |
4" - 102mm |
89 - 114mm |
PL10005 |
5" - 127mm |
114 - 140mm |
PL10006 |
6" - 152mm |
140 -165mm |
PL10007 |
7" - 178mm |
165 - 191mm |
PL10008 |
8" - 203mm |
191 - 216mm |
PL10010 |
10" - 254mm |
241 - 267mm |
PL10012 |
12" - 305mm |
292 - 318mm |
PL10014 |
14" - 356mm |
343 - 368mm |
PL10016 |
16" - 406mm |
394 - 419mm |
PL10018 |
18" - 457mm |
445 - 470mm |
PL10020 |
20" - 508mm |
495 - 521mm |
PL10021 |
21" - 533mm |
521 - 546mm |
PL10022 |
22" - 559mm |
546 - 572mm |
PL10023 |
23" - 584mm |
572 - 597mm |
PL10024 |
24" - 610mm |
597 - 622mm |
