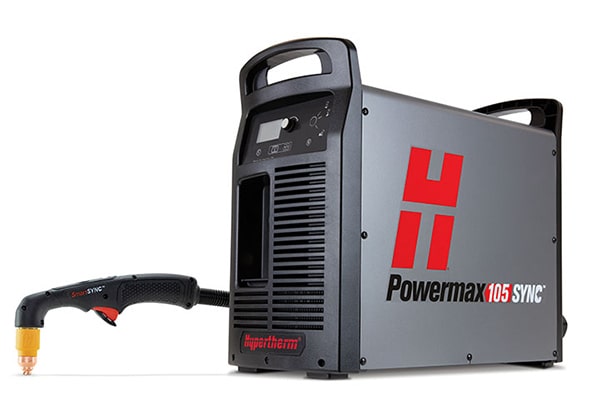

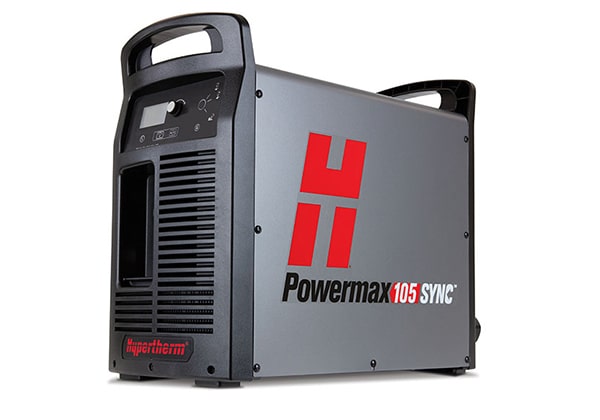

HYPERTHERM POWERMAX 105 SYNC HAND PLASMA CUTTER (415V)
Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.
Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.
+ 0% interest
+ Instant approval decisions
+ No extra charges – ever
Subject to status. Terms apply.
Couldn't load pickup availability
Applications
Drag cutting
For dragging the torch directly across the work piece
Extended reach cutting
For improved visibility and accessibility when cutting in confined spaces
Extended reach gouging
For improved visibility and accessibility when gouging in confined spaces
Fine feature cutting
For narrow kerf width with minimal dross and heat affected zone
Flush cutting
For cutting closer to base materials using a 45 degree
Max control gouging
For precise metal removal, shallower gouge profiles and light metal washing
Max removal gouging
For aggressive metal removal, deep gouge profiles, and extreme metal washing
Mechanized cutting
For portable automation and table cutting
Specifications

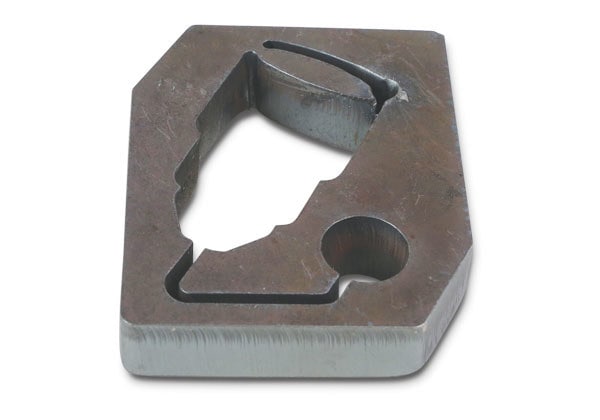

Cut capacity
| Capacity | Thickness | Cut speed |
|---|---|---|
| Recommended | 32 mm (1-1/4″) | 500 mm/min (20 ipm) |
| 38 mm (1-1/2″) | 250 mm/min (10 ipm) | |
| Severance (hand cutting) | 50 mm (2″) | 125 mm/min (5 ipm) |
| Pierce* | 22 mm (7/8″) |
Maximum removal gouging
| Capacity | Metal removal rate | Gouge profile |
|---|---|---|
| Typical gouge | 8,6 kg (19.1 lbs.) per hour | 6,6 mm D x 6,0 mm W (0.26″ D x 0.24″ W) |
General specifications
| Input voltages | 200–600 V, 3-PH, 50/60 Hz |
|---|---|
| Kilowatt output | 16.8 kW |
| Input current | 200/208/240/480/600 V,
3-PH 58/56/49/25/22 A @ 16.8 kW |
| Output current | 30–105 A |
| Rated output voltage | 160 VDC |
| Duty cycle @ 104° F | 70% @ 105 A, 240 V, 3-PH
80% @ 105 A, 480–600 V, 3-PH 100% @ 94 A, 480–600 V, 3-PH 100% @ 88 A, 240 V, 3-PH |
| Open circuit voltage (OCV) | 300 VDC |
| Dimensions with handles | 592 mm D; 274 mm W; 508 mm H (23.3″ D; 10.8″ W; 20.0″ H) |
| Weight w/7,6 m (25′) torch | 45.3 kg (95 lbs.) |
| Gas supply | Clean, dry, oil-free air or nitrogen |
| Optimum inlet gas pressure | 7.6–8.3 bar (110–120 psi) |
| Minimum inlet gas pressure | 5.5 bar (80 psi) |
| Recommended inlet gas flow rate | Cutting: 260 I/min @ 5.9 bar (550 scfh, 9.2 scfm @ 90 psi)
Gouging: 260 I/min @ 4.8 bar (550 scfh, 9.2 scfm @ 70 psi) |
| Input power cable length | 3 m (10′) |
| Power supply type | Inverter–IGBT |
| Engine drive requirement | 30 kW for full 105 A output |
| Certifications | CSA-certified for use in the Americas and Asia, except China |
| Warranty | Power supplies have a 3-year warranty and torches a 1-year warranty |
