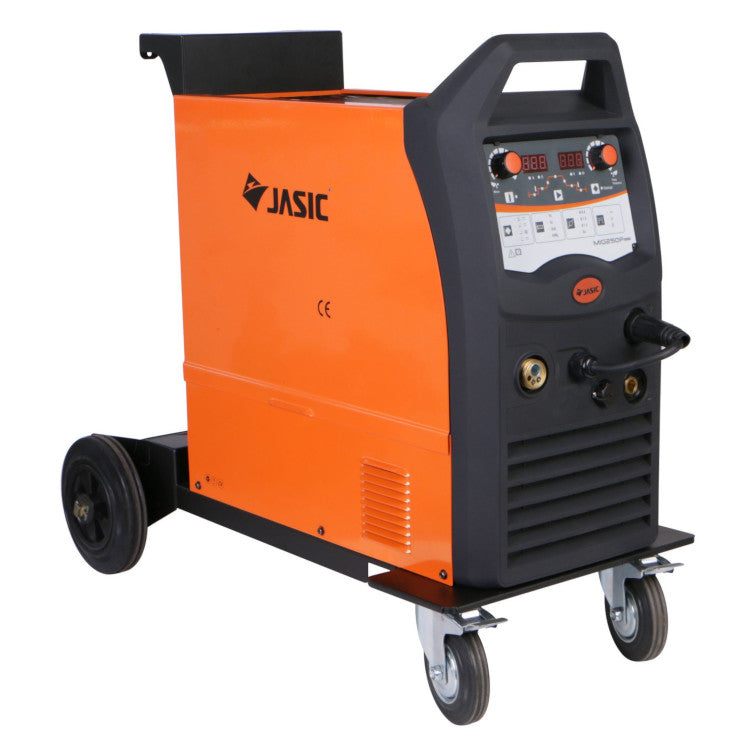

The Jasic MIG 250P is a 230v single phase welder with multi process functionality.
The JM-250P inverter features include 4 roll drive unit, 2T/4T operation mode and pre-loaded synergic programs.
As with all Jasic inverters this comes with a five year warranty which provides customers with long term support and commitment.
CONTACT US FOR FURTHER REDUCTIONS 0800 047 2317
- ZXJM-250P mig inverter

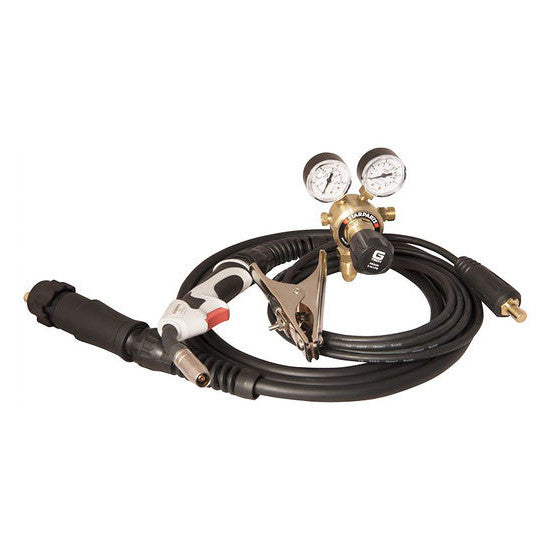

- MIG torch and earth return lead
- Gas regulator
- 5 year warranty*
- Input Voltage 230V +/- 15% 1P
- Leff 29.2A
- Input power 9.13kVA
- Voltage adjust range 13.5 - 36V
- Current range 40 - 250A
- VRD voltage MMA 15V
- Duty Cycle @ 40°C:
- MIG/TIG 250A | MMA 220A @ 40%
- No-load voltage 75V
- Wire speed 1.5 - 16m/min
- Efficiency 82%
- Power Factor: 0.76
- Protection/Insulation IP21S/F
- Dimensions 895 x 455 x 760mm
- Weight 49.7kg
*5 year warranty is subject to product registration
