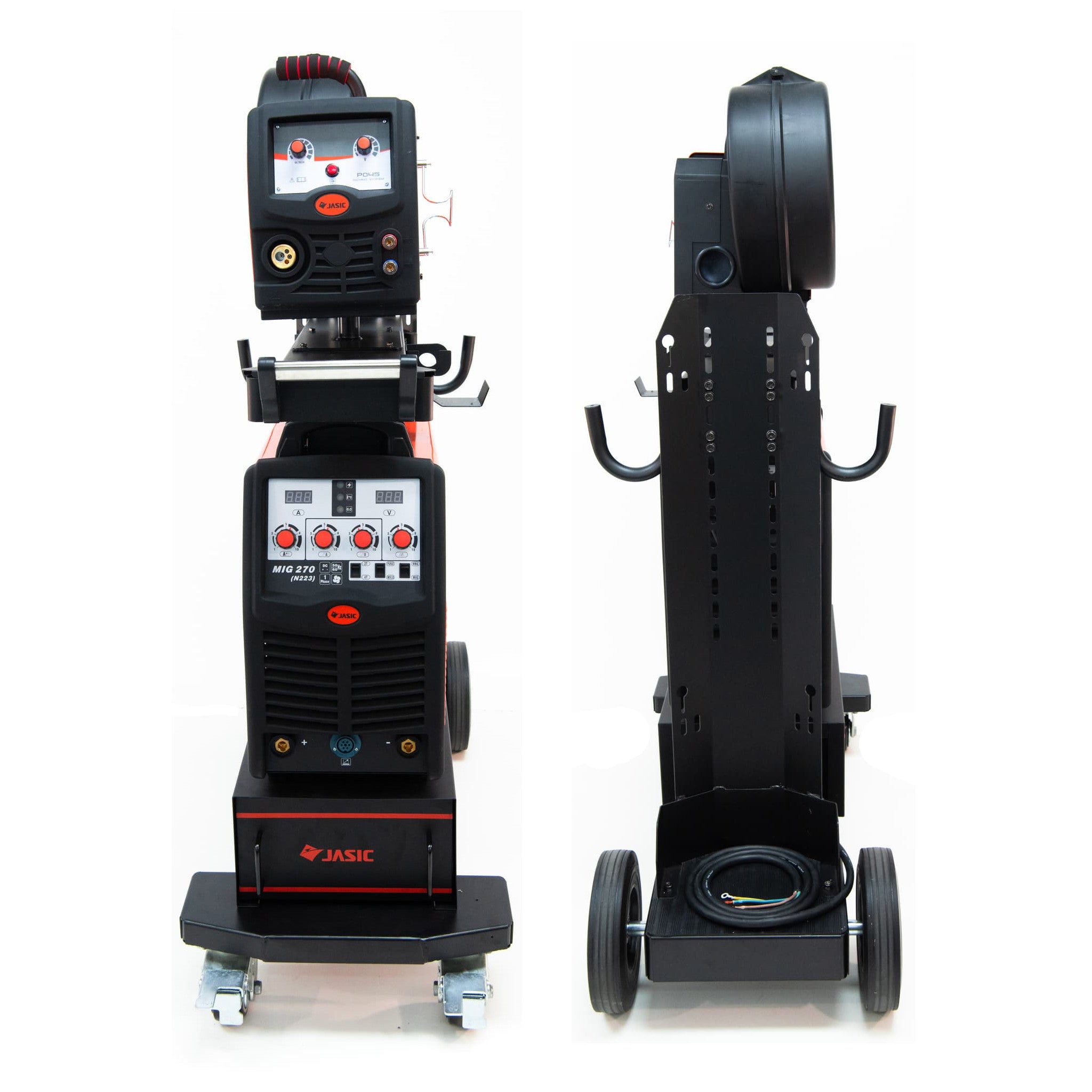

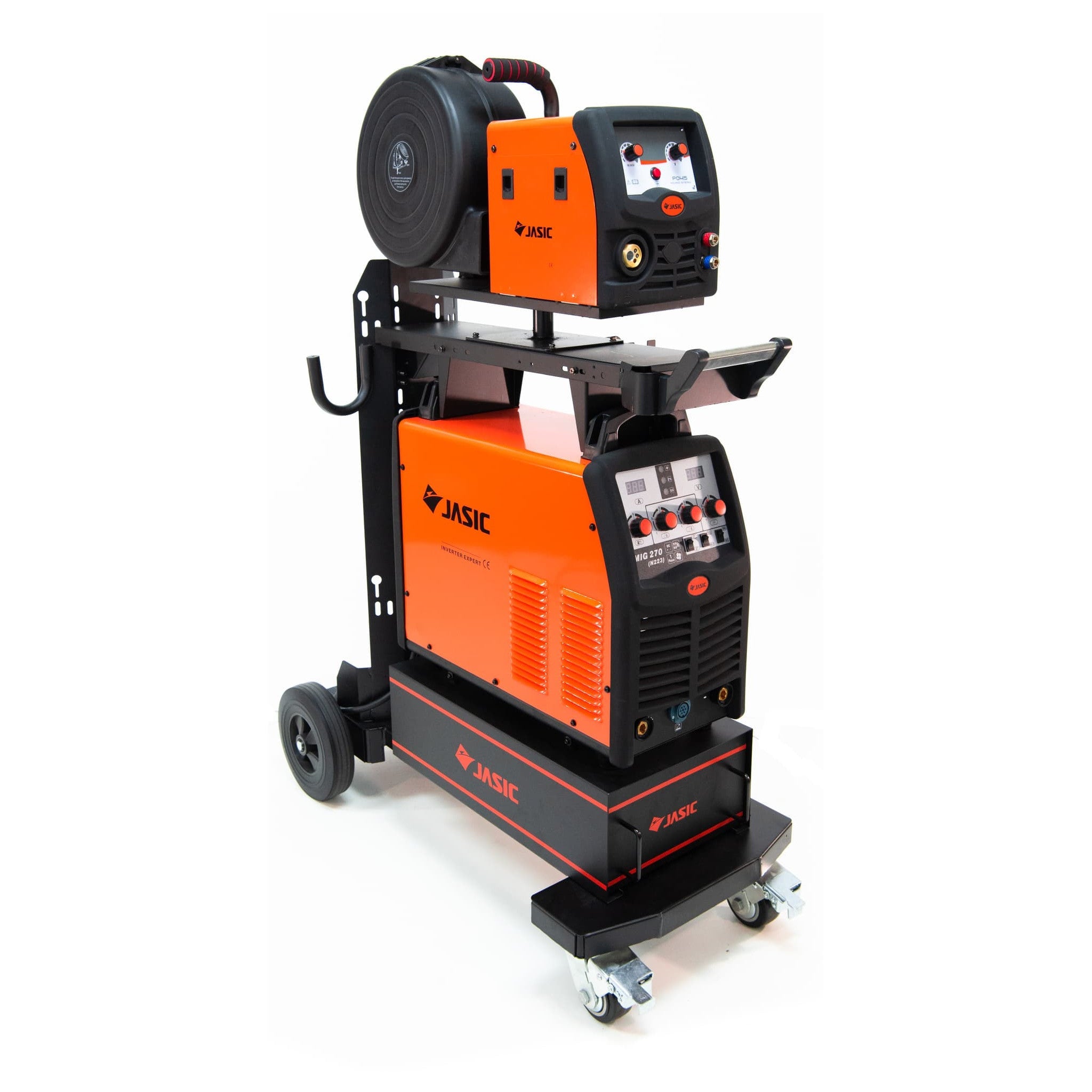

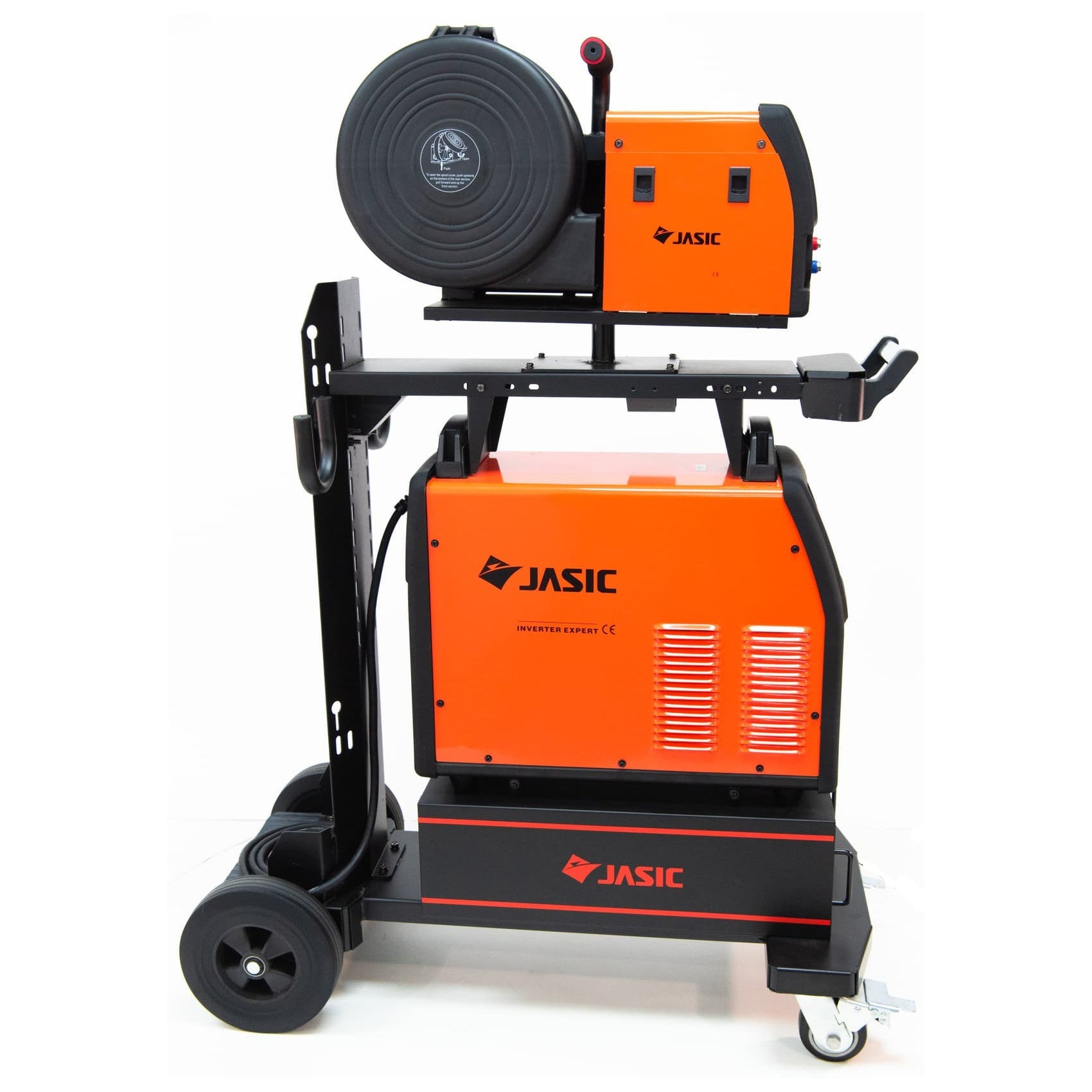

Jasic Mig 272S Separate Multi Process Inverter

The Jasic Multi Process MIG 270 Separate is a single-phase 230V welding inverter delivering up to 270 amps at a 30% duty cycle, backed by an industry-leading five-year warranty.

The ZXJM-272S MIG inverter package comes complete with a 4-roll wire feed unit and an inverter trolley capable of accommodating a full-size gas cylinder. It supports wire diameters of 0.6, 0.8, 1.0, and 1.2mm, and is available in both air-cooled and water-cooled versions.

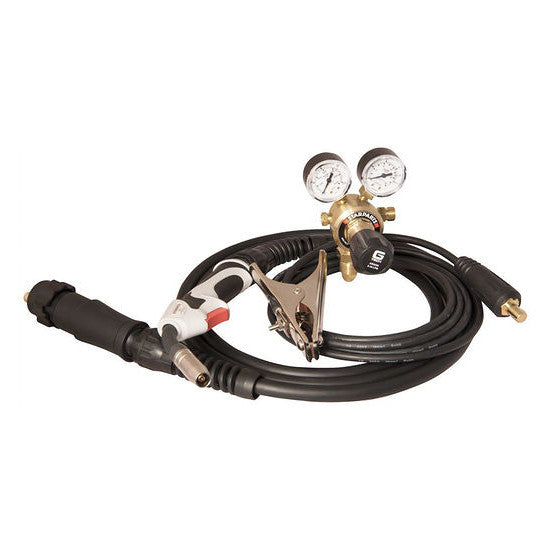

Package includes:

• 4-roll wire feed unit
• Trolley and MIG torch
• Gas regulator and hose
• Work return lead and clamp
• 5-year warranty*

Key features:

• Single-phase IGBT inverter
• Digital ammeter and voltmeter
• Advanced control circuitry
• Burn-back control and wire inching
• 2T/4T trigger function
• Power and status LED indicators
• Gas check function
• Variable inductance

Technical specifications:

• Input voltage: AC 230V, 50/60Hz
• Effective input current: 28.9A
• Input power: 12.1kVA
• Voltage adjustment range: 11–29V
• Current range: 30–270A
• Duty cycle (at 40°C): 270A @ 30%
• No-load voltage: 54V
• Wire speed: 0–16m/min
• Efficiency: 85%
• Power factor: 0.75
• Protection/insulation class: IP21S/F
• Dimensions: 1020 × 505 × 1460 mm
• Weight: 101kg

*Five-year warranty subject to product registration.
