Jasic Mig 350 Pulse Synergic Separate Inverter
Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.
Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.
+ 0% interest
+ Instant approval decisions
+ No extra charges – ever
Subject to status. Terms apply.
Couldn't load pickup availability

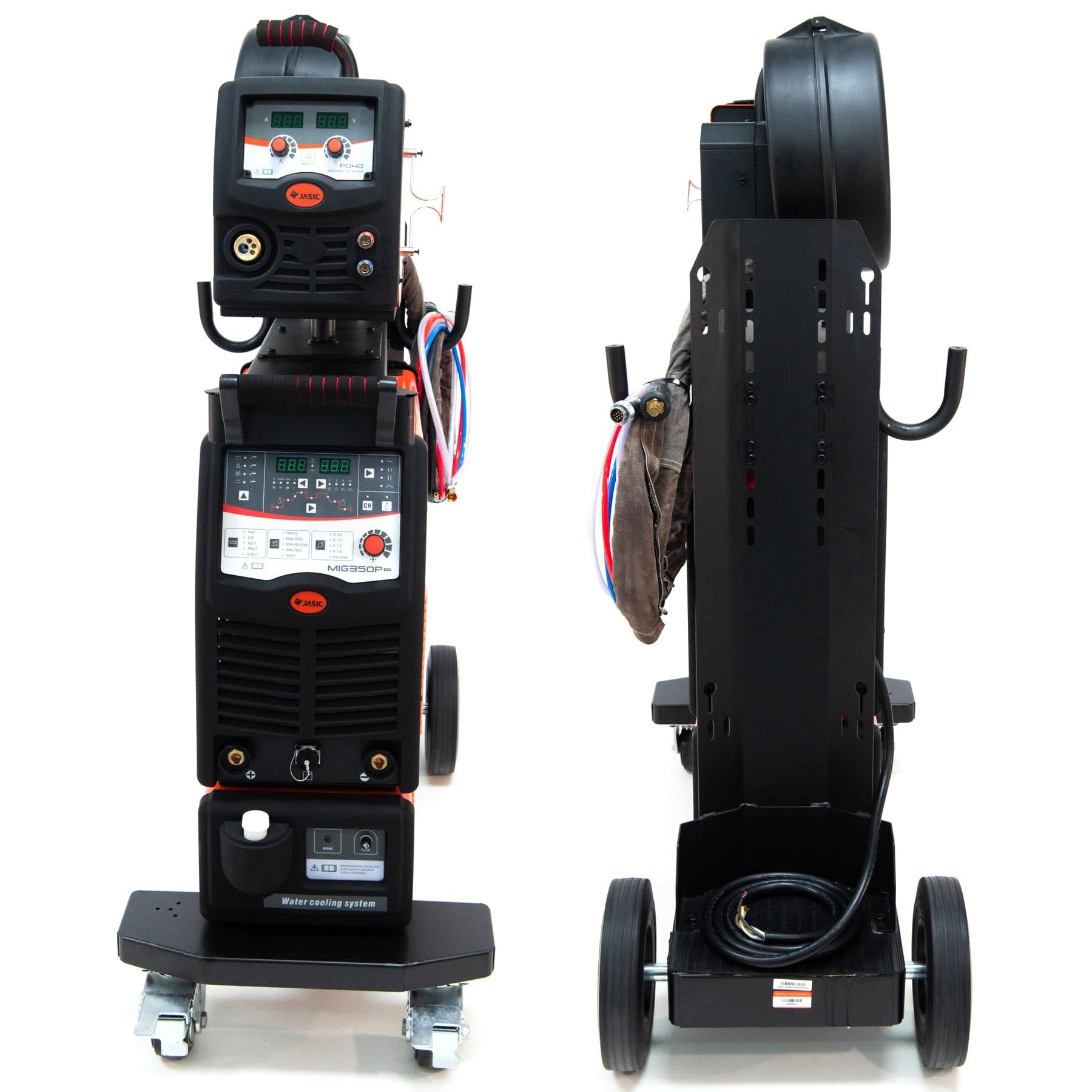

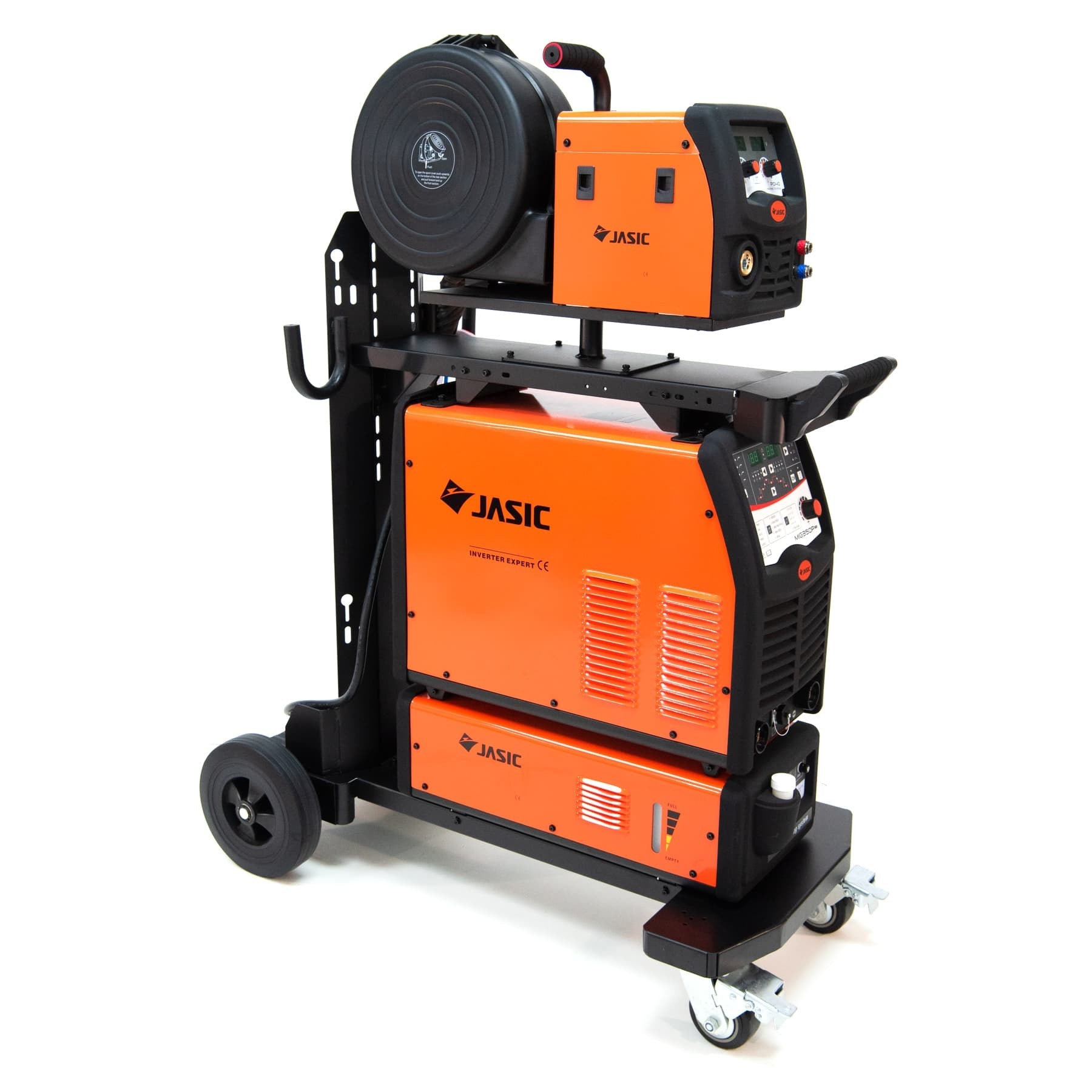

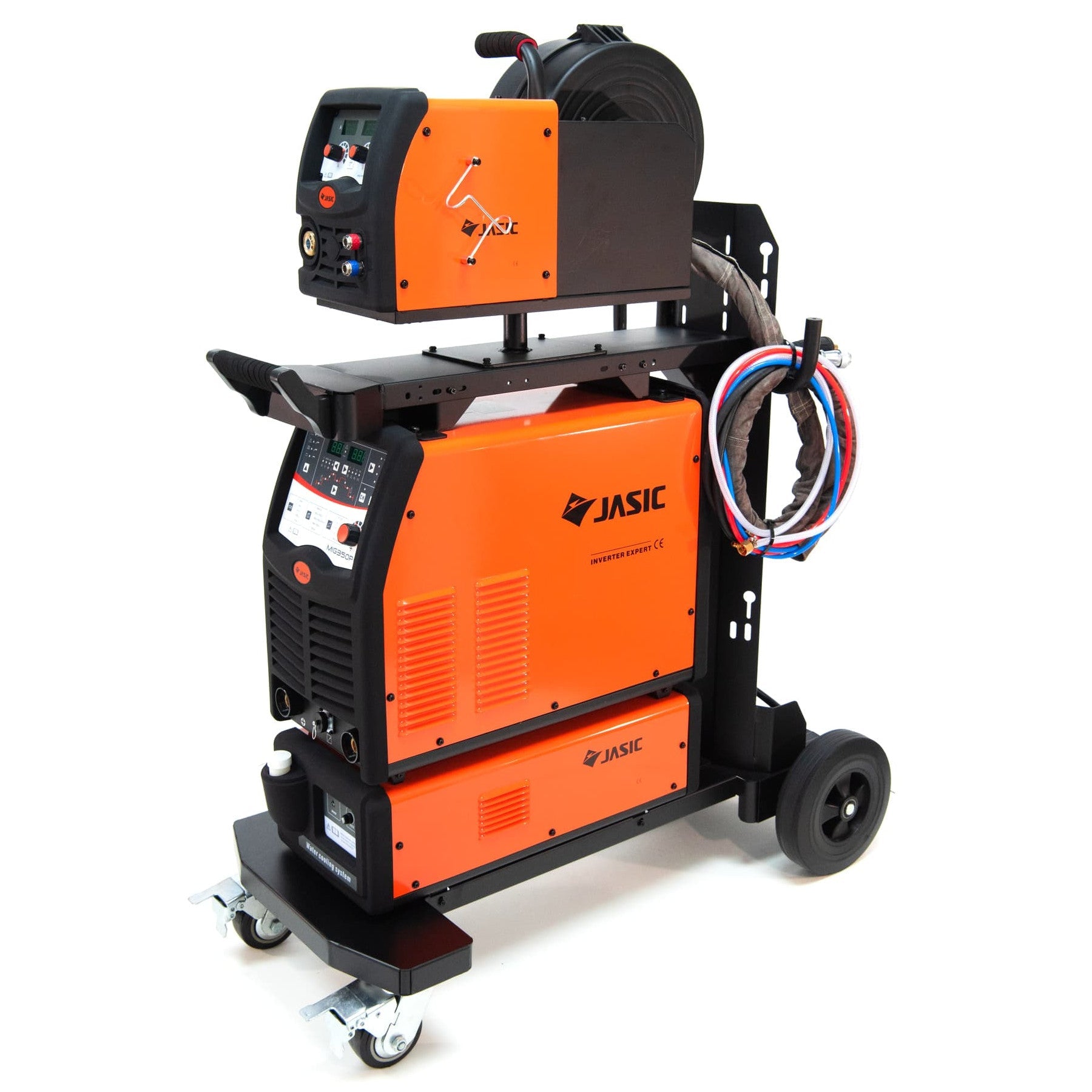

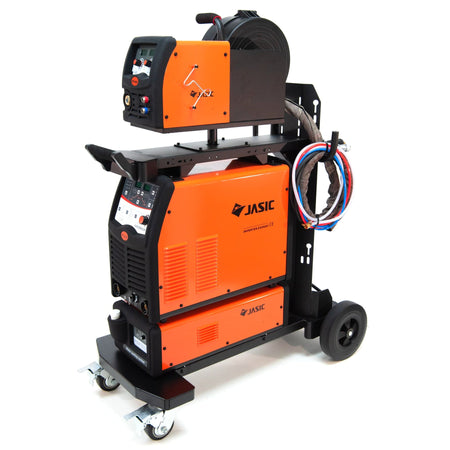

The Jasic MIG 350 Pulse is equipped with powerful IGBT components, digital meters and multi process capabilities offers excellent welding characteristics and rugged, reliable performance.
This three-phase inverter offers synegric curves for common materials and wires.
The machine also has self-diagnostic protection systems that provides extreme reliability.
CONTACT US FOR FURTHER REDUCTIONS 0141 763 1226
Package Details:
- JM-350P Mig Inverter
- Trolley and water cooler
- MIG torch and earth return lead
- Gas regulator
- 5 year warranty*

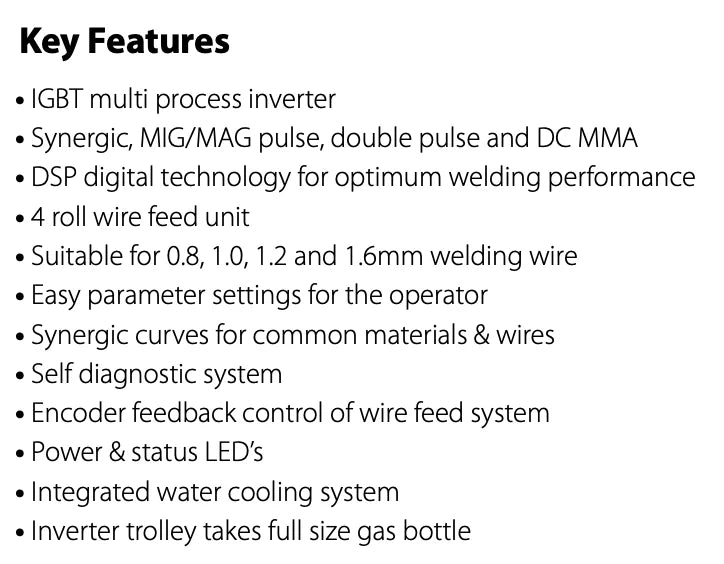

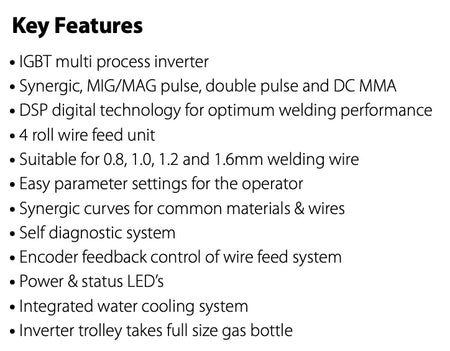

Main Features:
- IGBT multi process Inverter
- Synergic MIG/MAG pulse, double pulse and DC MMA
- DSP digital technology for optimum welding performance
- 4 roll digital wire feed system
- 0.8, 1.0, 1.2 and 1.6mm wire
- Easy parameter settings
- Self-diagnostic system
- Encoder feedback control of wire feed system
- Integrated water cooling system
- Inverter trolley takes full size gas bottle

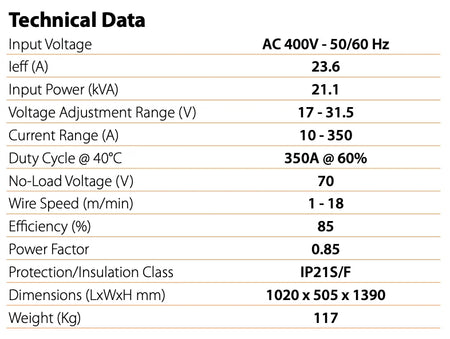

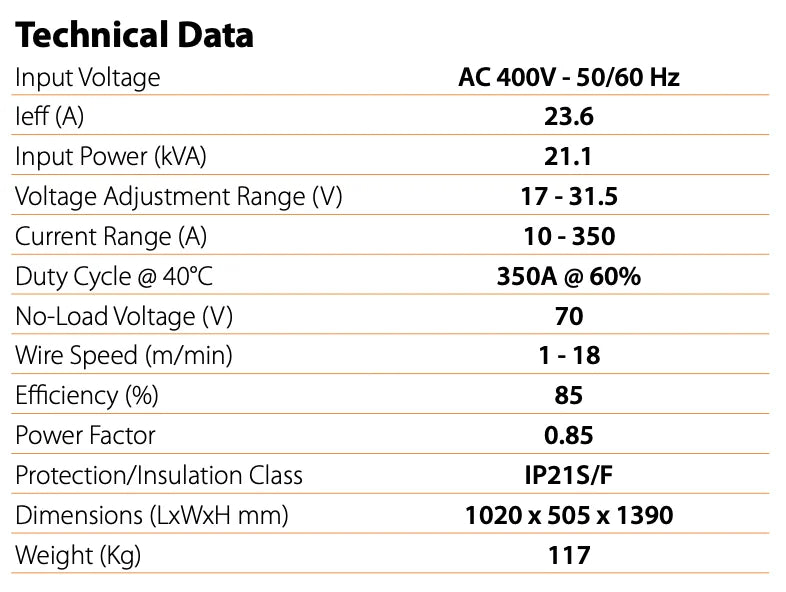

Technical Specifications:
- Input voltage: AC 400V - 50/60Hz
- Leff 23.6A
- Input power 21.1kVA
- Voltage adjust range 17 - 31.5V
- Current range 10 - 350A
- Duty cycle @ 40°C 350A @ 60%
- No-load voltage 70V
- Wire speed 1 - 18m/min
- Efficiency 85%
- Power factor 0.85
- Protection/Insulation IP21S/F
- Size 1020 x 505 x 1390mm
- Weight 117kg
*5 year warranty is subject to product registration
