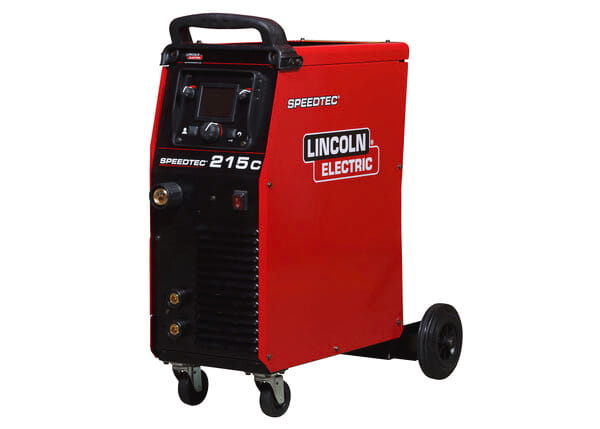

Lincoln Speedtec 215C Multi-Process Compact Inverter Power Source - 110v / 230v, 1ph

In stock
SKU: K14146-1
£1,600 Excl.VAT

Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.

Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.

+ 0% interest
+ Instant approval decisions
+ No extra charges – ever

Subject to status. Terms apply.

DETAILS

One powerful machine to tackle any job. SPEEDTEC 215C is a small but powerful single phase inverter based, multi-process machine. It has been equipped with colour TFT User Interface which makes welding set up fast and easy. Built in synergic mode, helps to find optimal welding parameters based on Amperage, WFS or material thickness. SPEEDTEC® 215C is designed for MIG, Stick or TIG applications. You can get maximum output of 200A at 25% of duty cycle and weld with either solid wires up to 1.0mm or cored wires up to 1.1mm. The welding performance gives excellent results for steel, stainless steel and aluminium

Features

  • Versatile: MIG Synergic and Manual, FCAW, Stick,TIG Lift.
  • Excellent welding characteristics with all proccesses.
  • Smart housing for 15 kg spools, convenient shelves, useful in workshop or production workshop.
  • User-friendly icon control panel makes setup easy for both experts and beginners.
  • Power Factor Correction (PFC): gives more power to arc, consumes up to 30% less energy (compared to conventional MIG equipment), works on 100 m extension cable.
  • Generator Compatible

What's Included

  • Input cable (5m)
  • Ground cable (3m)
  • Gas hose (2m)
  • Drive roll for solid wire 0.8-1.0mm

Specifications

Weights & Dimensions

Dimensions (H x W x D) 780 mm x 400 mm x 750 mm
Net Weight 42 kg

Technical Specifications

Machines Processes MIG (GMAW)
Open Circuit Voltage 51V
Input Voltage 115/230V
Input Current 16A (25A)
Input Hertz 50/60 Hz
Input Phase 1 ph
Input Power 115/230V/1/50-60 Hz
Mode Icon CC/CV
Output Range 20-200A
Polarity DC

Application

Typical Application Construction
General Fabrication
Maintenance & Repair
Structural Fabrication

Warranty

Warranty 3 years



Instruction Manual

Brochure
