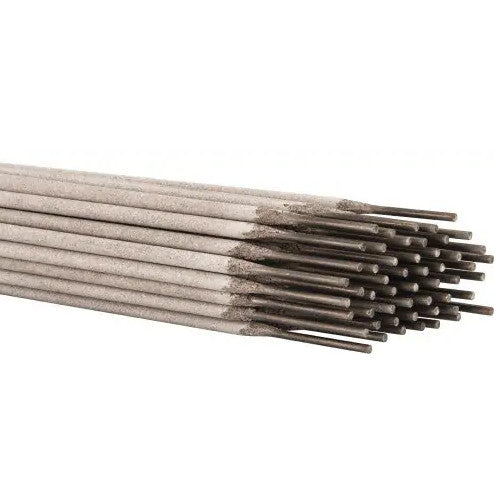

These 310 stainless steel electrodes feature a rutile coating for welding 25/20 chromium nickel heat resisting steels.
Ideal for austenitic stainless heat resistant steels including AISI type 310 and Firth Vickers Immaculate 5; the weld deposit provides good heat resistance up to 1400°C in air and 650°C in oxidising sulphurous atmospheres.
These electrodes are also suitable for welding stainless to carbon or low alloy steels; making them a great choice for foundry heat treatment applications.
Brand: Weldfast MWA
Electrode type: MAC Stain E102
Current AC/DC: DC positive (+)
Classification: AWS E310-17
Package weight: 4kg
Rod Diameter | Amps (A)
Chemical Analysis (Typical values in %):
Typical All Welded Metal Properties (as welded):
Ultimate tensile strength 695 N/mm²
Hardness 210 Brinell
Electrodes should be re-baked at 250°C for 1 hour if they become damp.
