MAGBEAST® HM100

In stock
£1,169 Excl.VAT
Voltage

Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.

Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.

+ 0% interest
+ Instant approval decisions
+ No extra charges – ever

Subject to status. Terms apply.

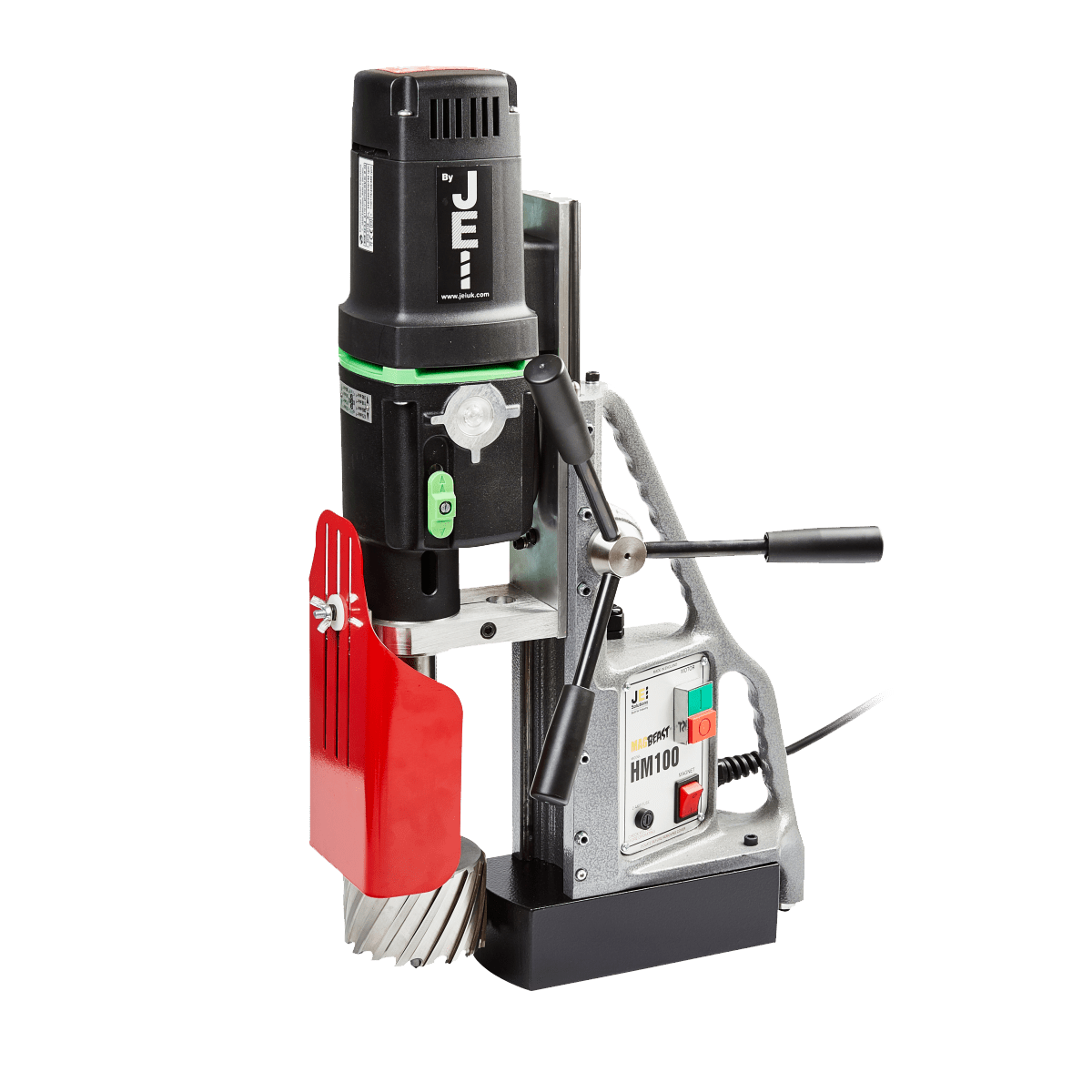

MAGBEAST® HM100

SPECIFICATIONS

Model HM100 HM100S - SWIVEL BASE MODEL
Spindle MT3 MT3
Arbor Bore 19 mm 19 mm
Weight 24 kg 27.5 kg
Max Stroke 250 mm 290 mm
Cutter Capacity 100 mm Ø x 6” depth of cut 100 mm Ø x 6” depth of cut
Twist Drill Capacity 19 mm with 2MT Chuck / 32 mm with 3MT Twist Drill 19 mm with 2MT Chuck / 32 mm with 3MT Twist Drill

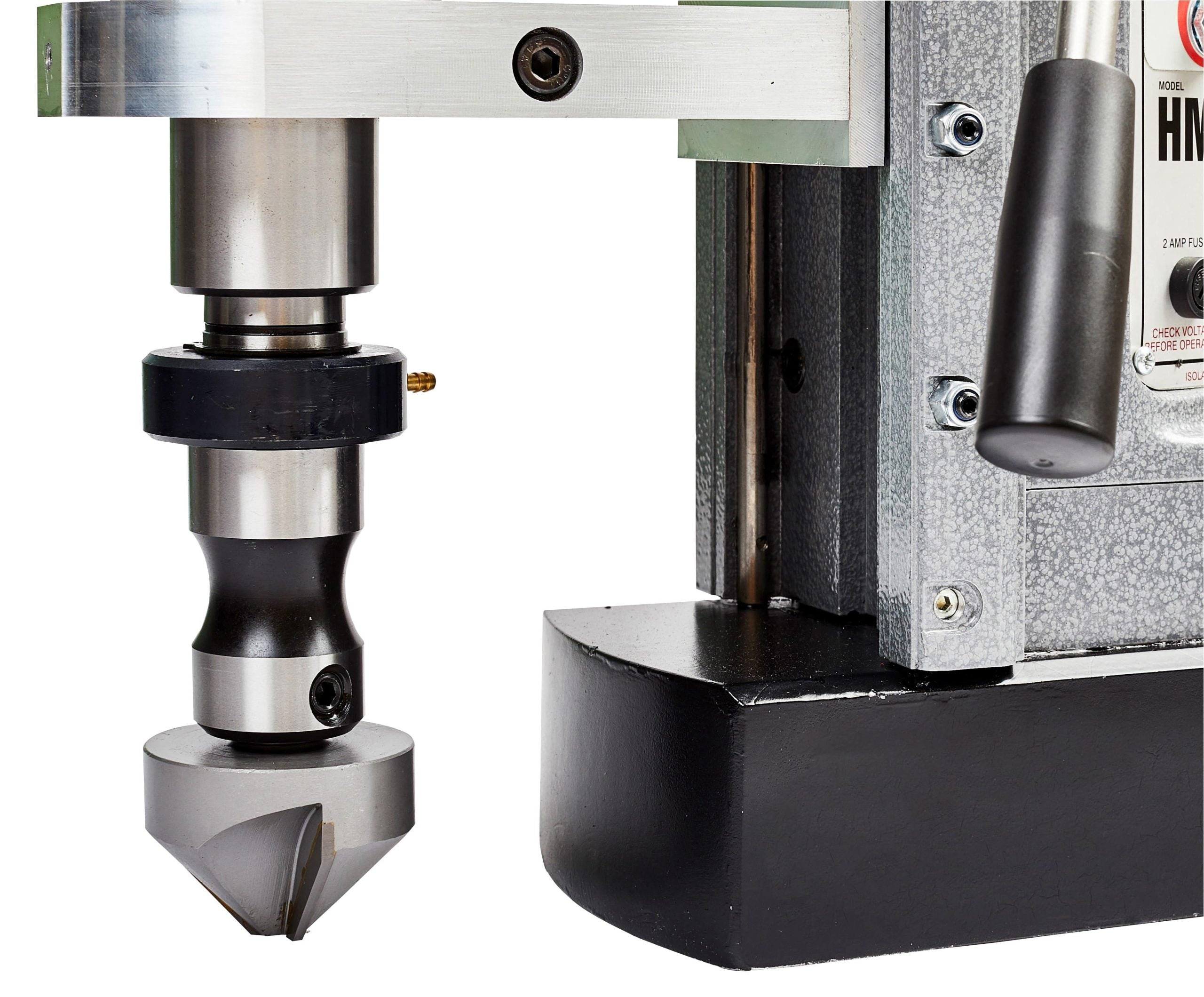

Countersink Capacity 55 mm 55 mm
Reaming Capacity 39 mm 39 mm
Motor 1700 W 1700 W
RPM 4 Fixed Speeds:
no load 215/330/460/680 RPM
loaded 110/175/245/385 RPM
4 Fixed Speeds:
no load 215/330/460/680 RPM
loaded 110/175/245/385 RPM
Swivel Base n/a 360 Degree
Height min/max 450 / 700 mm 495 / 740 mm
Length x Width 345 x 190 mm 345 x 190 mm
Magnetic Base L x W 212 x 102 mm 212 x 102 mm
Magnet Deadlift 2050 kg on 1” Plate (20100 N) 2050 kg on 1” Plate (20100 N)
Noise Level < 90dB < 90dB
Vibration Level < 2.5 m/s2 < 2.5 m/s2
Voltage/ Part no 110 V – DRILL-HM100
240 V – DRILL-HM100/2
110 V – DRILL-HM100S
240 V – DRILL-HM100S/2
Shipping Weight 29 kg 32 kg
Shipping Dimensions 571 x 450 x 250 mm 571 x 450 x 250 mm

A Durable Heavy Duty, 3 Morse Taper Drilling Machine - Manufactured in the UK (youtube.com)
