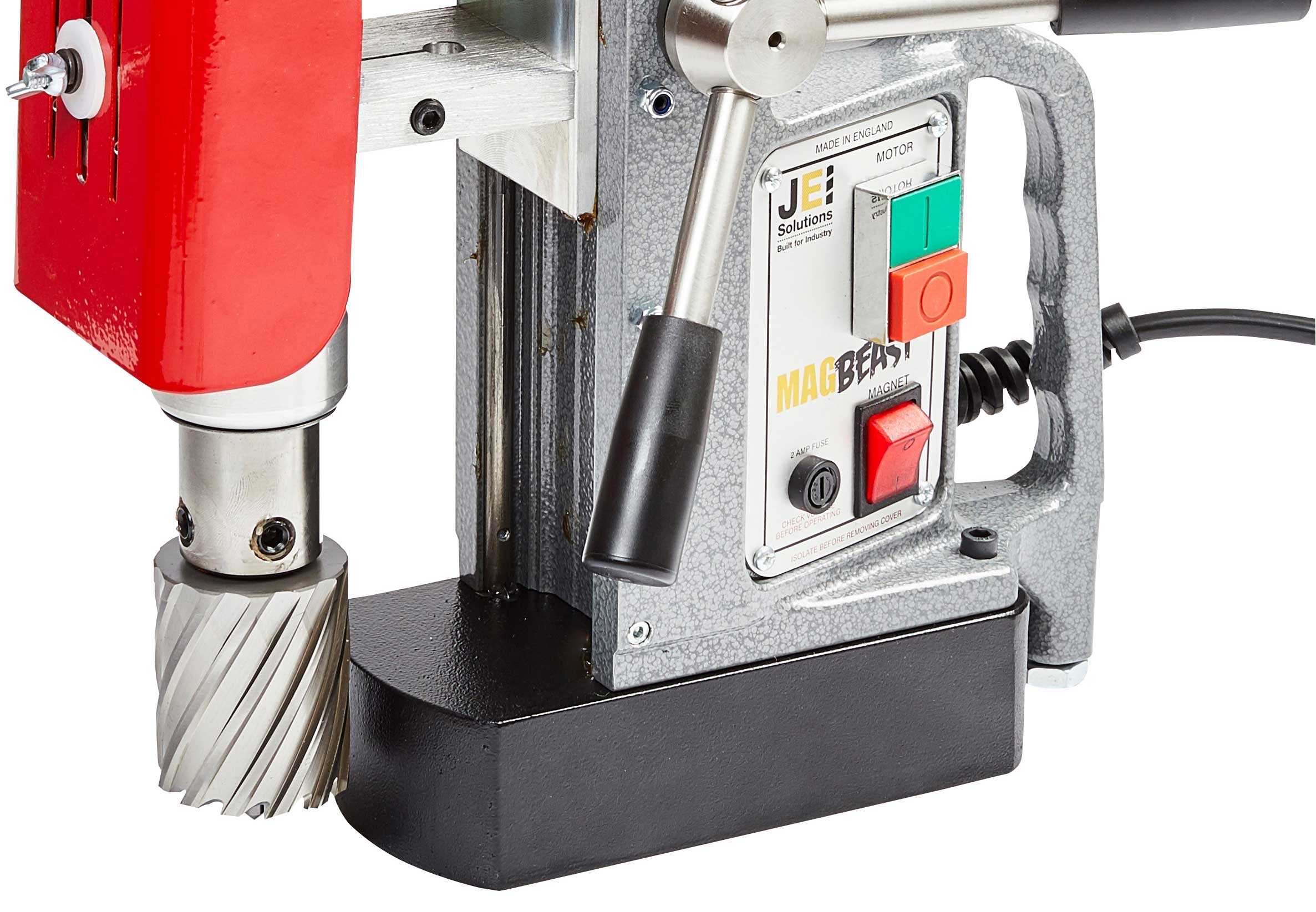

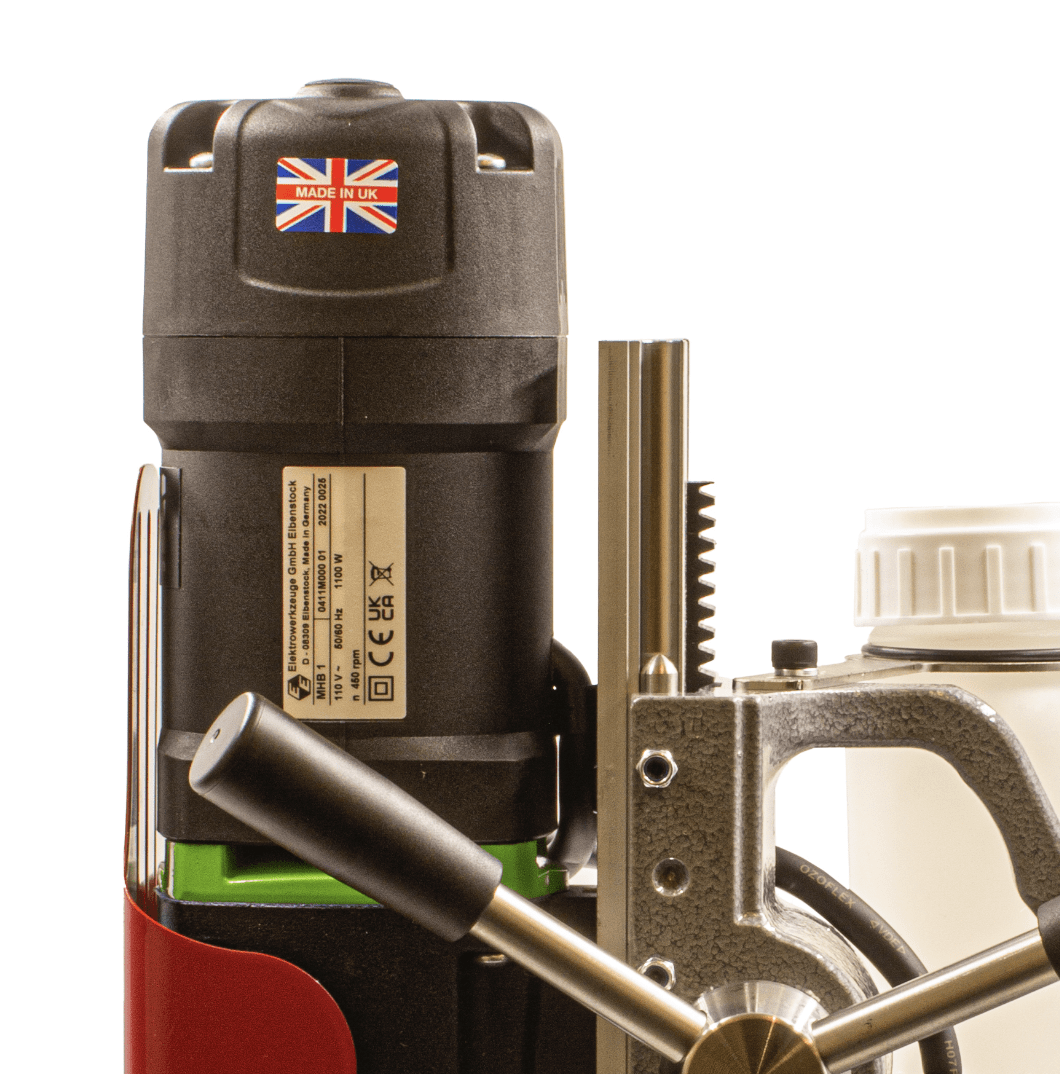

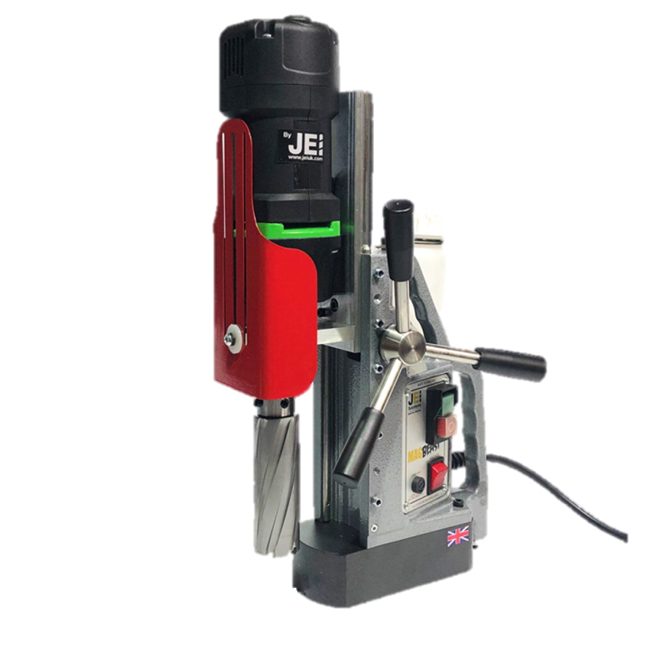

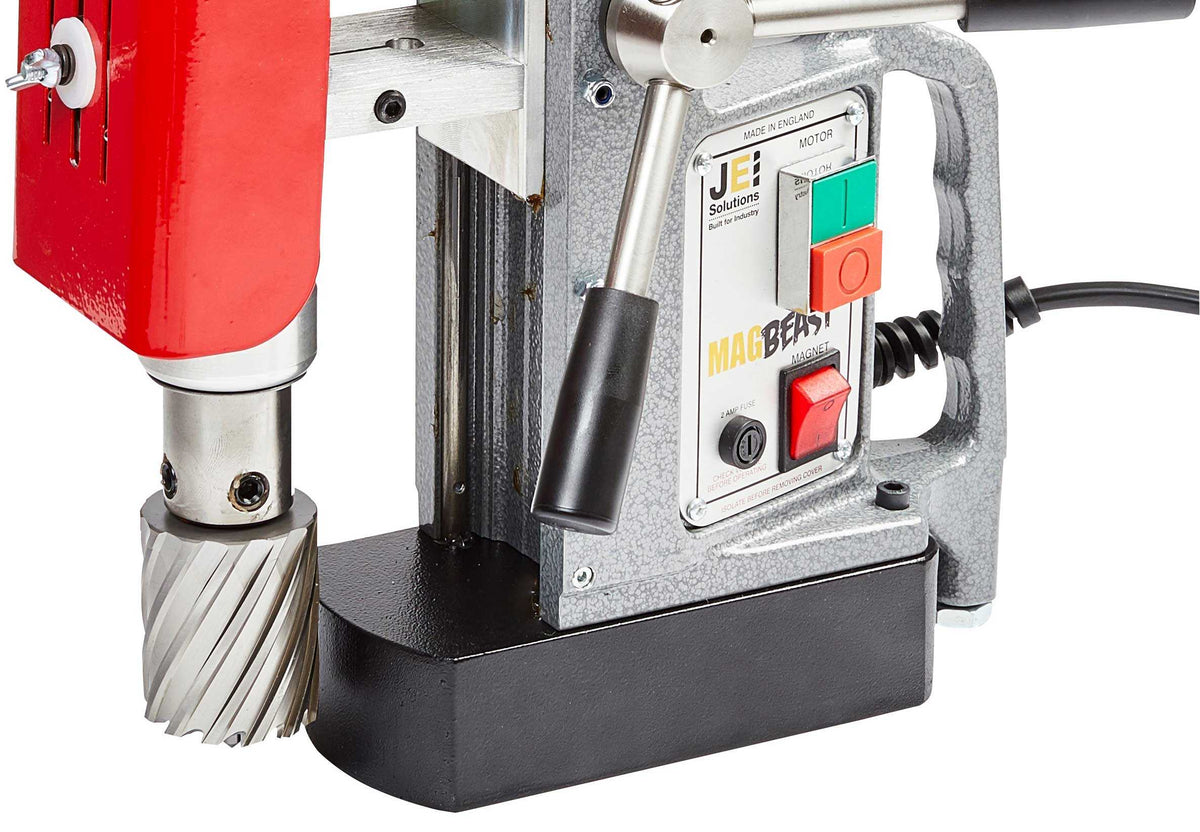

MAGBEAST® HM40EX
£535
Excl.VAT
Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.
Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.
+ 0% interest
+ Instant approval decisions
+ No extra charges – ever
Subject to status. Terms apply.
Couldn't load pickup availability
MAGBEAST® HM40EX
SPECIFICATIONS
| Model | HM40EX | HM40EX SWIVEL |
| Spindle | 19 mm | 19 mm |
| Weight | 11.5 kg | 12 kg |
| Cutter Capacity | 40 mm Ø x 110 mm depth of cut | 40 mm Ø x 110 mm depth of cut |

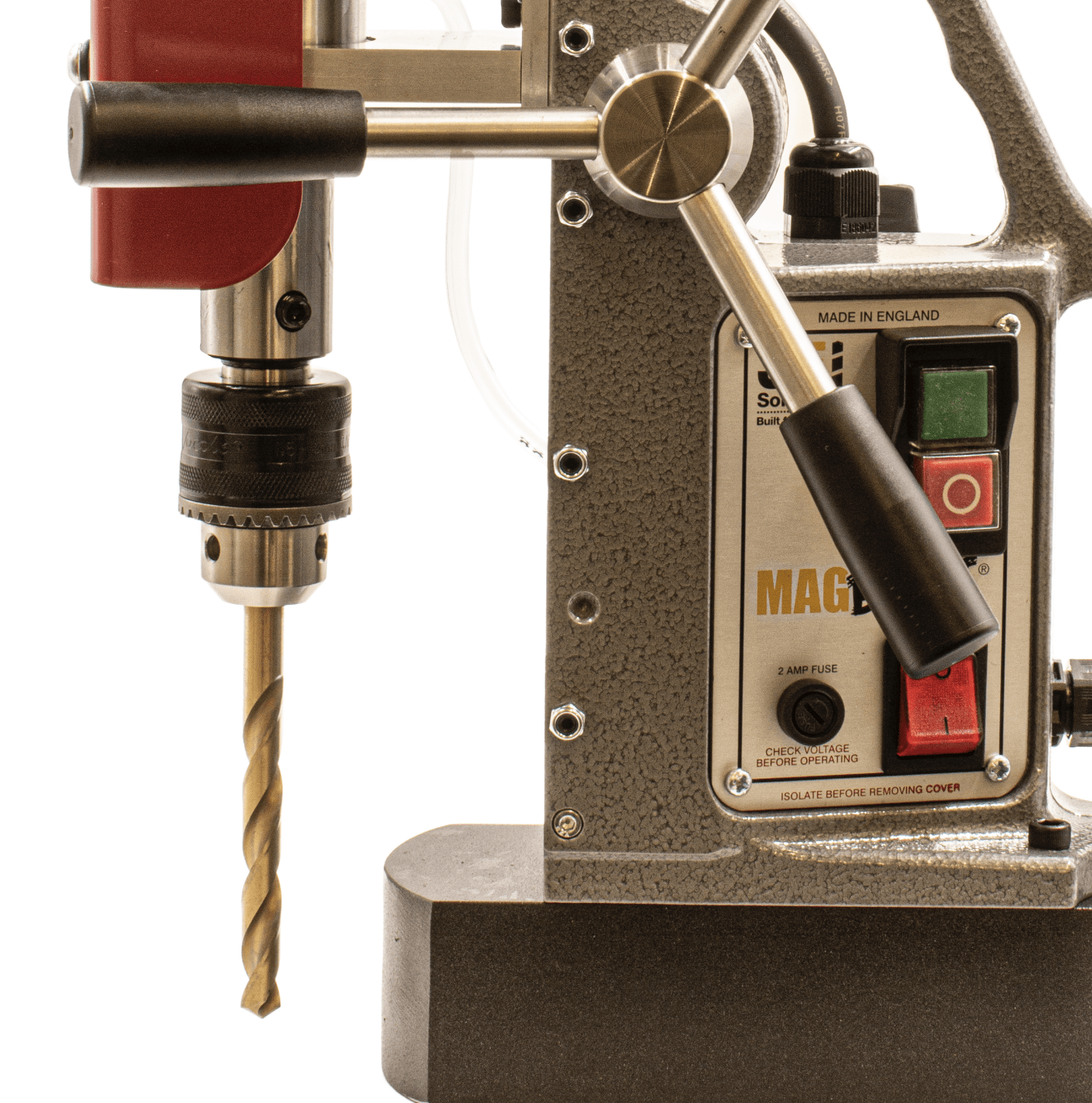

| Twist Drill Capacity | 13 mm Ø with optional attachment (part no - JEICA-13MM/19) | 13 mm Ø with optional attachment (part no - JEICA-13MM/19) |
| Countersink Capacity | 40 mm | 40 mm |
| Motor | 1100 W | 1100 W |
| RPM | No load 720 RPM Loaded 450 RPM |
No load 720 RPM Loaded 450 RPM |
| Swivel Base | n/a | 360 degree |
| Height min/max | 320 / 500 mm | 330 / 510 mm |
| Length x Width | 280 x 165 mm | 280 x 165 mm |
| Magnetic Base L x W | 85 x 170 mm | 85 x 170 mm |
| Magnet Deadlift | 1100 kg on 1” Plate (10750 N) | 1100 kg on 1” Plate (10750 N) |
| Noise Level | < 90dB | < 90dB |
| Vibration Level | < 2.5 m/s2 | < 2.5 m/s2 |
| Voltage/ Part no | 110 V - DRILL-HM40EX/1 240 V - DRILL-HM40EX/2 |
110 V - DRILL-HM40EX/1S 240 V - DRILL-HM40EX/2S |
| Shipping Weight | 16 kg | 16.5kg |
| Shipping Dimensions | 460 x 360 x 180 mm | 470 x 360 x 180 mm |
JEI-Main-Product-Catalogue-March-2023-MagBeast-HM40EX-min
AVAILABLE AS A MACHINE PACKAGE
Purchase your HM40EX magdrill as a complete package, including:
- HM40EX magdrill
- 5 piece Turbo™ Steel Cutter Set (14, 16, 18, 20, 22 mm x 1" depth of cut plus pin to suit)

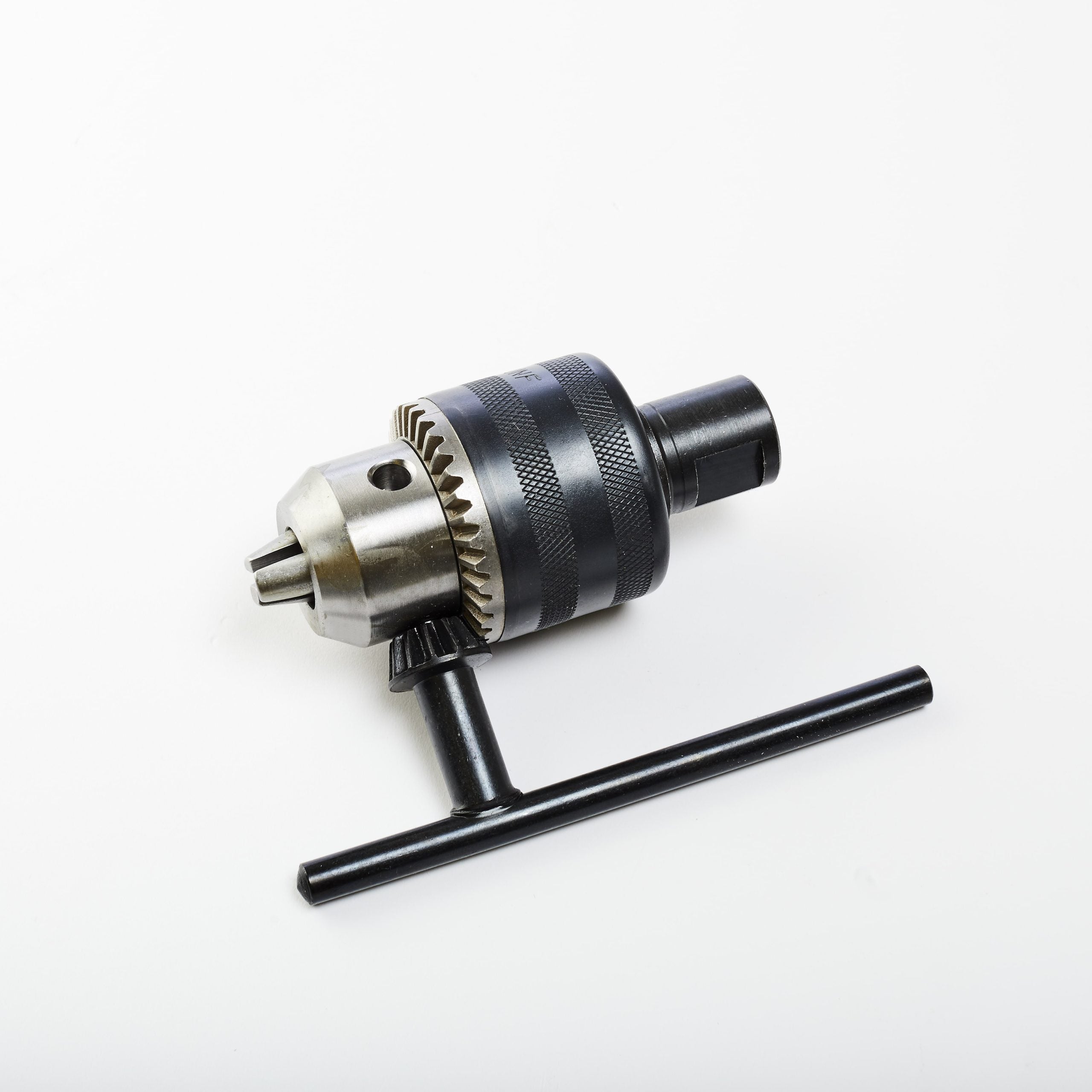

- 13 mm chuck with 19mm shank adaptor
Part Number:
110v - DRILL-HM40EX/1SET
240v - DRILL-HM40EX/2SET
