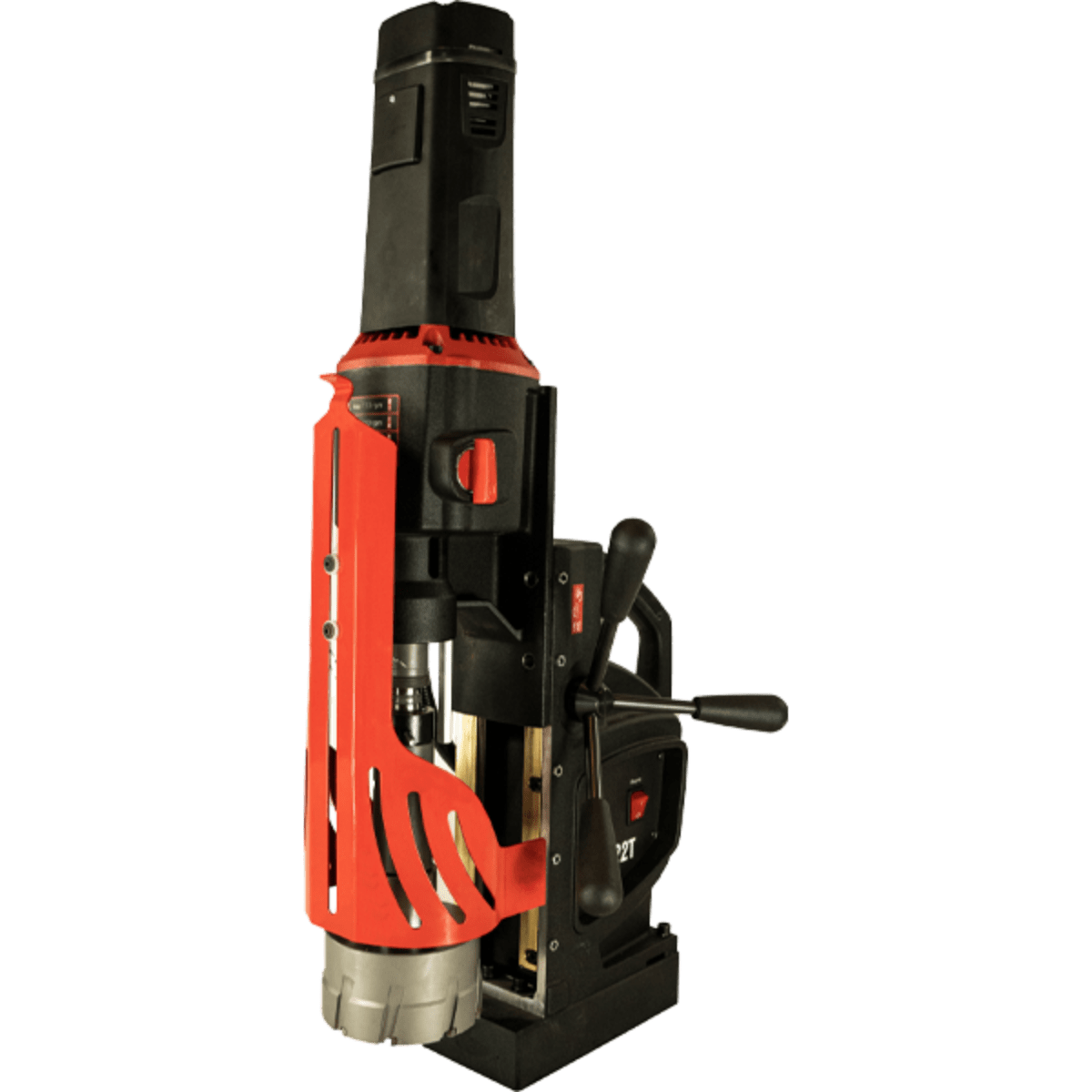

Magbeast Premium PRO-122T
Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.
Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.
+ 0% interest
+ Instant approval decisions
+ No extra charges – ever
Subject to status. Terms apply.
Couldn't load pickup availability
THE NEW GENERATION IN PORTABLE, MAGNETIC DRILLING MACHINES
The PRO-122T machine is designed for industrial hole making and tapping applications. The powerful 2300 W variable speed motor enables cutter capacity up to 120 mm (4.72”) and twist drill capacity up to 31.7 mm (1-1/4”).
- 2300W motor - the most powerful in its class
- Intelligent speed control system maintains stable speed
- Tapping of through and blind holes
- Drilling with TCT or HSS cutters
- Electronic speed control
- Electronic clutch
- Rigid design extends tool life
- Tilt sensor stops the motor in cases of machine’s break away
- 360 degree visual monitoring system
- Diagnostic information, e.g. worn brushes
- Innovative smart magnet with reduced weight
- Intuitive control panel at top of the drill
- Large coolant container
Four speed gearbox with continuous speed adjustment allows to set the optimal speed depending on diameter, steel grade or tool quality. Intelligent speed control system maintains constant motor speed regardless of changing loads. Innovative 360-degree LED indicator facilitates proper machine operation and increases work safety.
Specifications
| Motor Speeds (under load) | 75-110 rpm (gear 1) / 135-200 rpm (gear 2) / 220-320 rpm (gear 3) / 390-570 rpm (gear 4) |
| Motor Power | 2300 W |
| Weight | 25 kg (55lbs) |
| Max cutter capacity | 120 mm (4.72")* |
| Max twist drill capacity | 31.75 mm (1-1/4") |
| Max tapping size | M30 (1-1/4") |
| Stroke | 225 mm (9") |
| Max depth of cut | 100 mm (4") |
| Voltage | 1~ 220-240 V, 50-60 Hz / 1~ 110-120 V, 50-60 Hz |
| Magnetic clamping force | 1835 kG (18,000 N) |
| Magnetic Base Dimensions | 110 mm x 220 mm x 50 mm | 4.3" x 8.7" x 2" |
| Min. Workpiece Thickness | 10 mm (3/8") |
| Spindle | MT3 |
| Tool holder | 19 mm (3/4") or 32 mm (1-1/4") Weldon |
