UNIVERSAL TAPPING AND DRILLING MACHINE.
The PRO-52T is a powerful, universal tapping and drilling machine suitable for hole cutting and tapping applications. Features a powerful 1600 W variable speed motor enabling milling capacity up to 50 mm (2”) and drilling capacity up to 23 mm (7/8”).
- 1600 W powerful motor
- Intelligent speed control system
- Both overload and overheat protection
- Heavy duty 2-speed gearbox
- Tilt sensor
- 360-degree visual monitoring system
- Large coolant container
The Magbeast Premium PRO-52T drilling machine is suitable for hole cutting and tapping applications. Powerful 1600W variable speed motor enables cutting capacity up to 50mm (2”) and twist drill capacity up to 23 mm (7/8”).

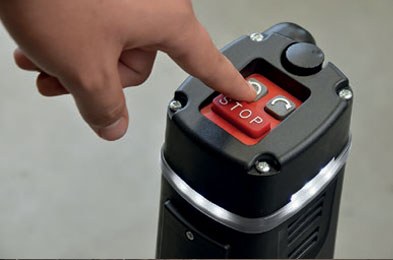

Machine’s forward & reverse work modes allow thread cutting up to M20 with a new tapping system.
Specifications
| Model | PRO-52T |
| Motor Speeds (under load) | (1) 160-250 rpm (2) 390-580 rpm |
| Motor Power | 1600 W |
| Weight | 17 kg (37 lbs) |
| Max cutter capacity | 50 mm (2") |
| Max twist drill capacity | 23 mm (7/8") |
| Max tapping size | M20 (3/4") |
| Stroke | 190 mm (7-1/2") |
| Max depth of cut | 75 mm (3") * |
| Voltage / Part Number | 110-120 V, 50-60 Hz / DRILL-PRO52T/1 220-240 V, 50-60 Hz / DRILL-PRO52T/2 |
| Magnetic clamping force | 1122 kG (11,000 N) |
| Magnet Base Dimensions | 90 mm x 180 mm x 48 mm 3-9/16" x 7" x 1-7/8" |
| Min, Workpiece Thickness | 8 mm (5/16) |
| Spindle | MT2 |
| Tool holder | 19 mm (3/4") Weldon |
