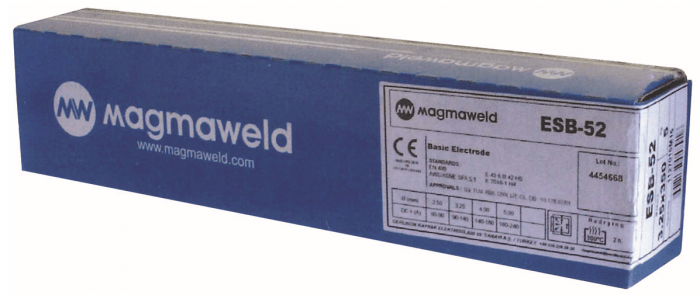

Magmaweld E7018-1H4R L.H. Electrodes
Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.
Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.
+ 0% interest
+ Instant approval decisions
+ No extra charges – ever
Subject to status. Terms apply.
Couldn't load pickup availability
Suitable for welding of steel constructions, bridge, dam, thermal power plants, petrochemical industry, shipbuilding, high strength pipe-lines, pressure vessels, tanks, which are dynamically loaded and require high mechanical properties. The weld metal has a very low hydrogen content and is resistant to ageing. Produces tough and crack-free welded joints, also suit for welding steels having a carbon content of up to 0.6% and rail joints. Good operating characteristic, also in root pass and positional welding. Very good gap bridging properties. Welds are of X-ray quality
| Weight | 2.5 kg |
|---|---|
| Dimensions | 450 mm |
| ESB | 52 |
| Material | Low Hydrogen |
| Yield Strength | 500 N/mm² |
| Tensile Strength | 560 N/mm² |
| Elongation A5 | 28% |
| Current Type | AC/DC+ |
| Charpy V-Notch Properties (J) | -45°C –> 110J / -60°C –> 60J |
| Chemical Composition(s) | C = 0.07 MAX, Mn = 1.20 MAX, Si = 0.4 MAX |
| Grade | E7018-1H4R |
| Package Material | Vac Pac |
| Set Size | Single Box |
| Conforms To | AWS/ASME SFA 5.1 E70181 H4R, CSA W4818 E49181H4, EN ISO 2560 A E 42 6 B 42 H5, TS EN ISO 2560 A E 42 6 B 42 H5 |
