Minibeast Curve Drilling Machine
£1,175
Excl.VAT
Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.
Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.
+ 0% interest
+ Instant approval decisions
+ No extra charges – ever
Subject to status. Terms apply.
Couldn't load pickup availability

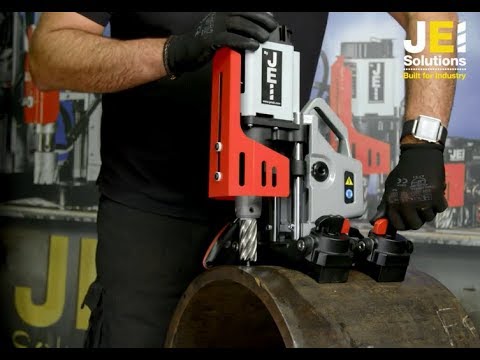

For drilling pipes, convex and concave surfaces.
- Easily swivels into position.

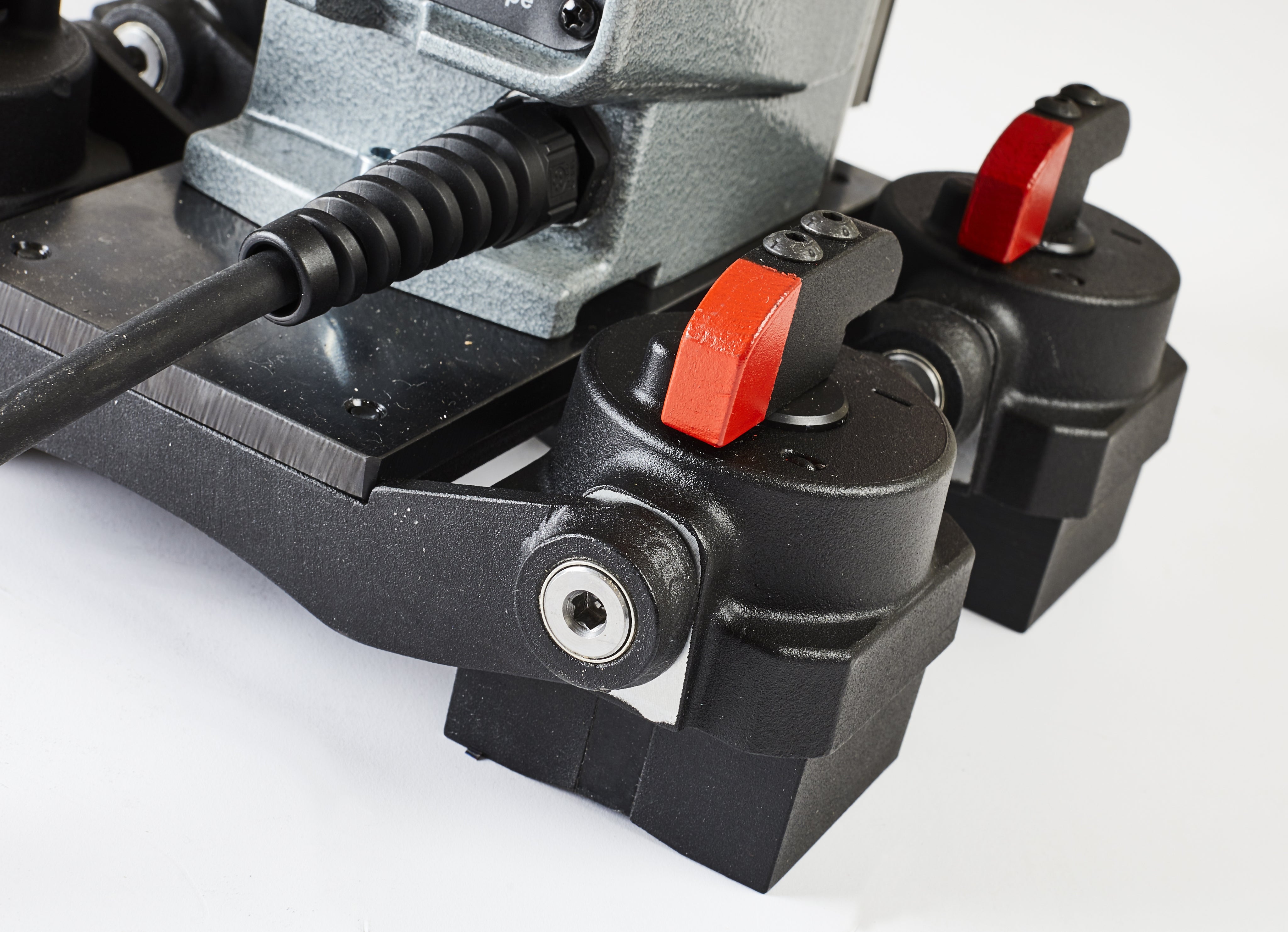

- Four permanent magnetic bases.
- Holds onto pipes with an outside radius of ØR300 mm.

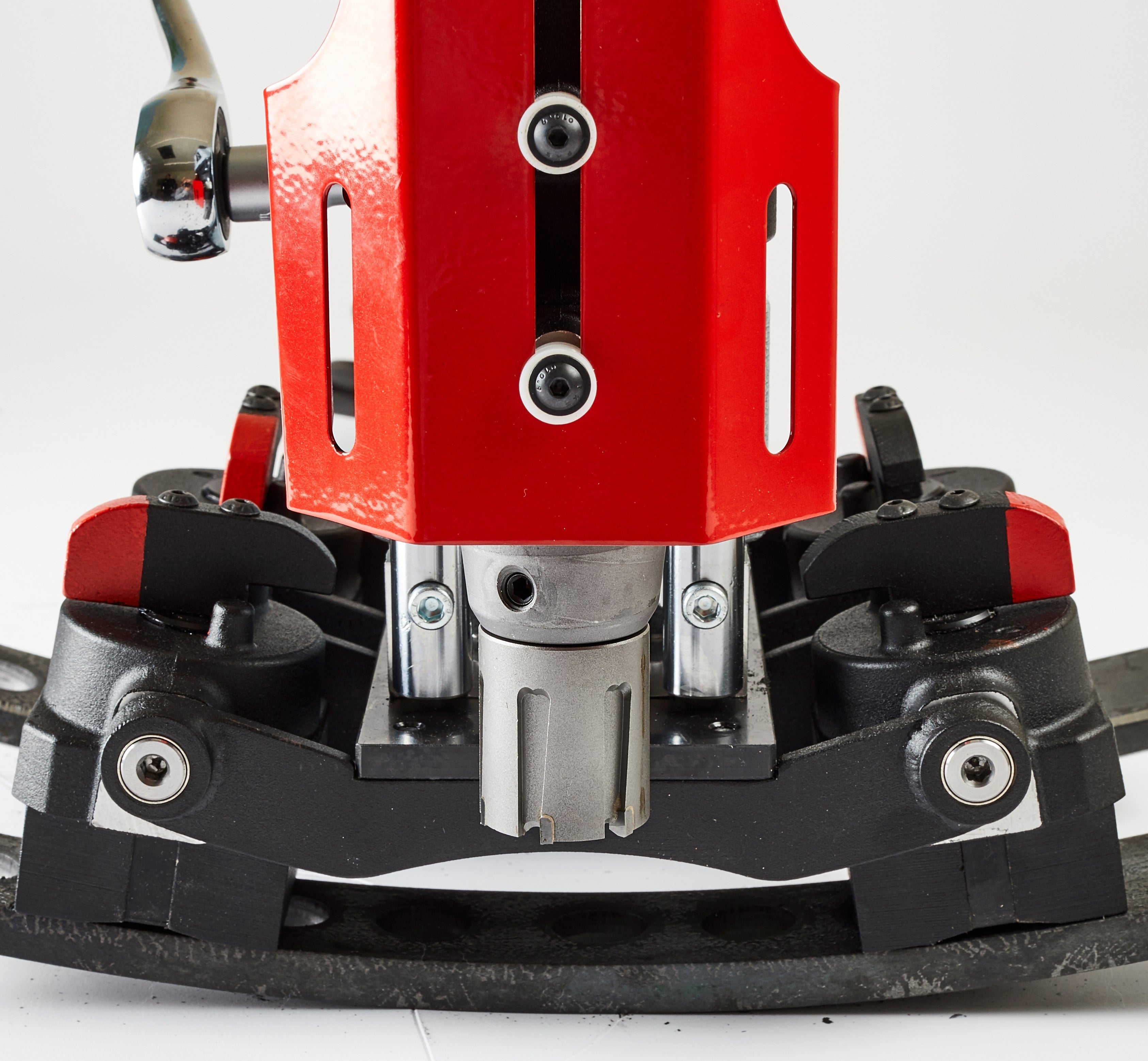

- Holds onto pipes with an inside radius of ØR500 mm.
- Compact size and weight - ideal for site work.
- Internal coolant reservoir - ensuring maximum cutter life.
- Self correcting slide rails - for maintenance free operation.
- Light-weight - only 15kg.
- Hidden motor cable - for added protection.

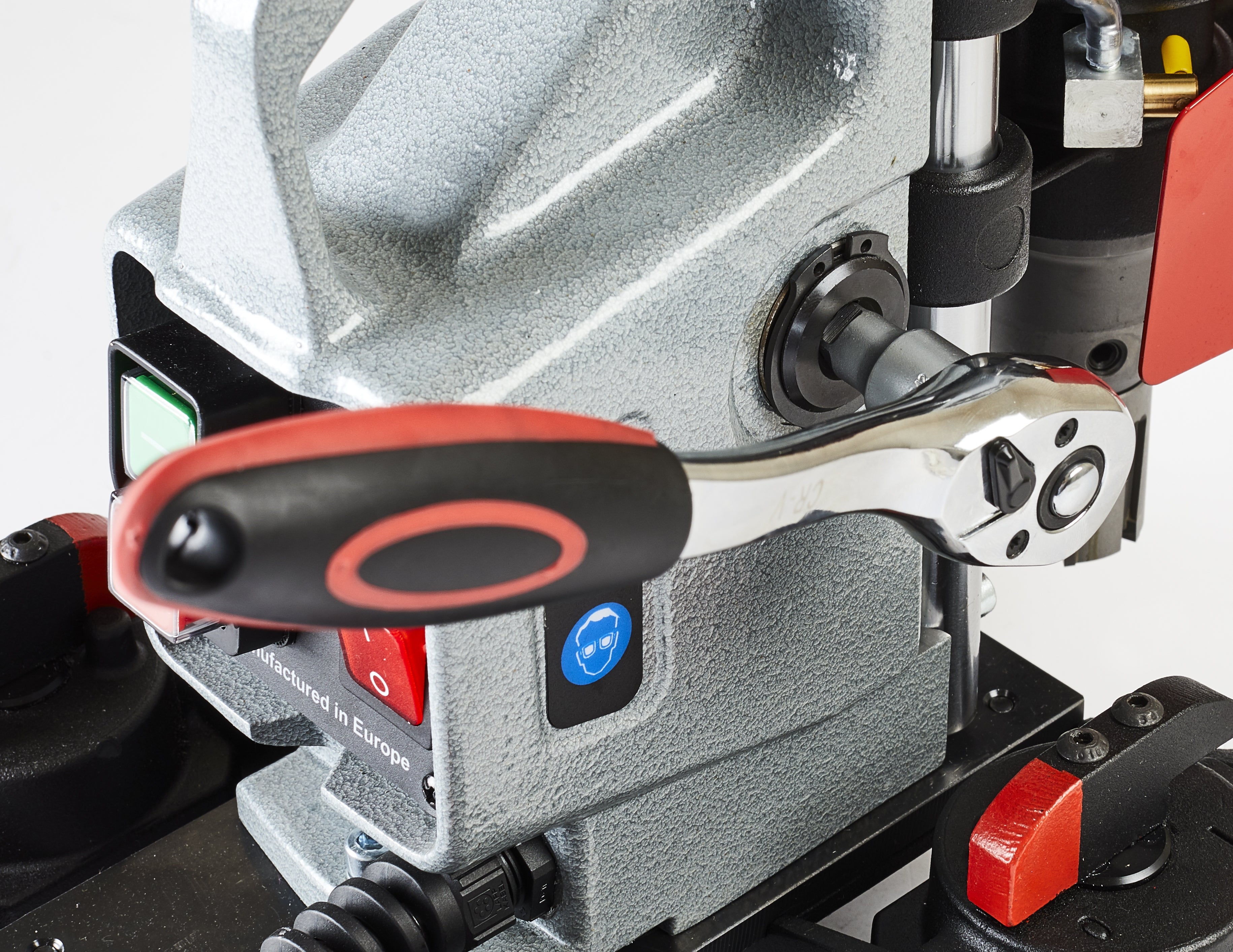

- Detachable feed ratchet handle.
SPECIFICATIONS
| Model | MiniBeast™ Curve |
| Weight | 15 kg |
| Max Stroke | 55 mm |
| Cutter Capacity | 35 mm Ø x 35 mm Depth |
| Height min/max | 315 / 390 mm |
| Length x Width | 300 x 245 mm |
| Magnetic Base L x W | 250 x 230 mm |
| Magnet Deadlift | 600 kg on 1” Plate (6000 N) |
| Min. Material Thickness | 10 mm |
| MIn. Pipe Diameter (Outside) | 300 mm Ø |
| Min. Pipe Diameter (Inside) | 1000 mm Ø |
| Min. Radius | R 500 |
| Voltage/ Part no | 110 V – DRILL-MBCP/1 ~ 240 V – DRILL-MBCP/2 |
