PREMIUM LOW PROFILE DRILLING MACHINE, IDEAL FOR USE WITH HSS OR TCT CUTTERS

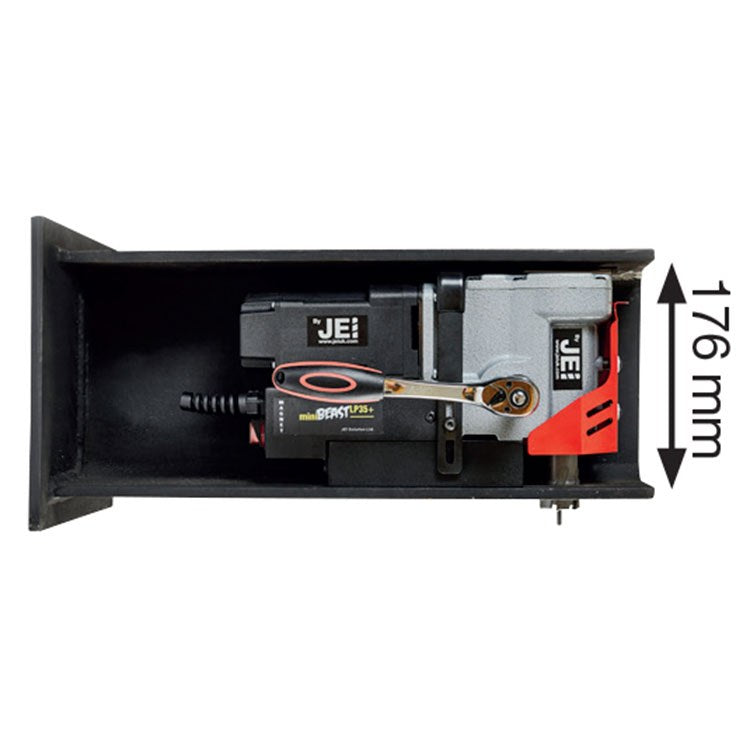

- Ultra-low fixed working height only 176 mm.
- Extremely low weight of just 9.5 kg.

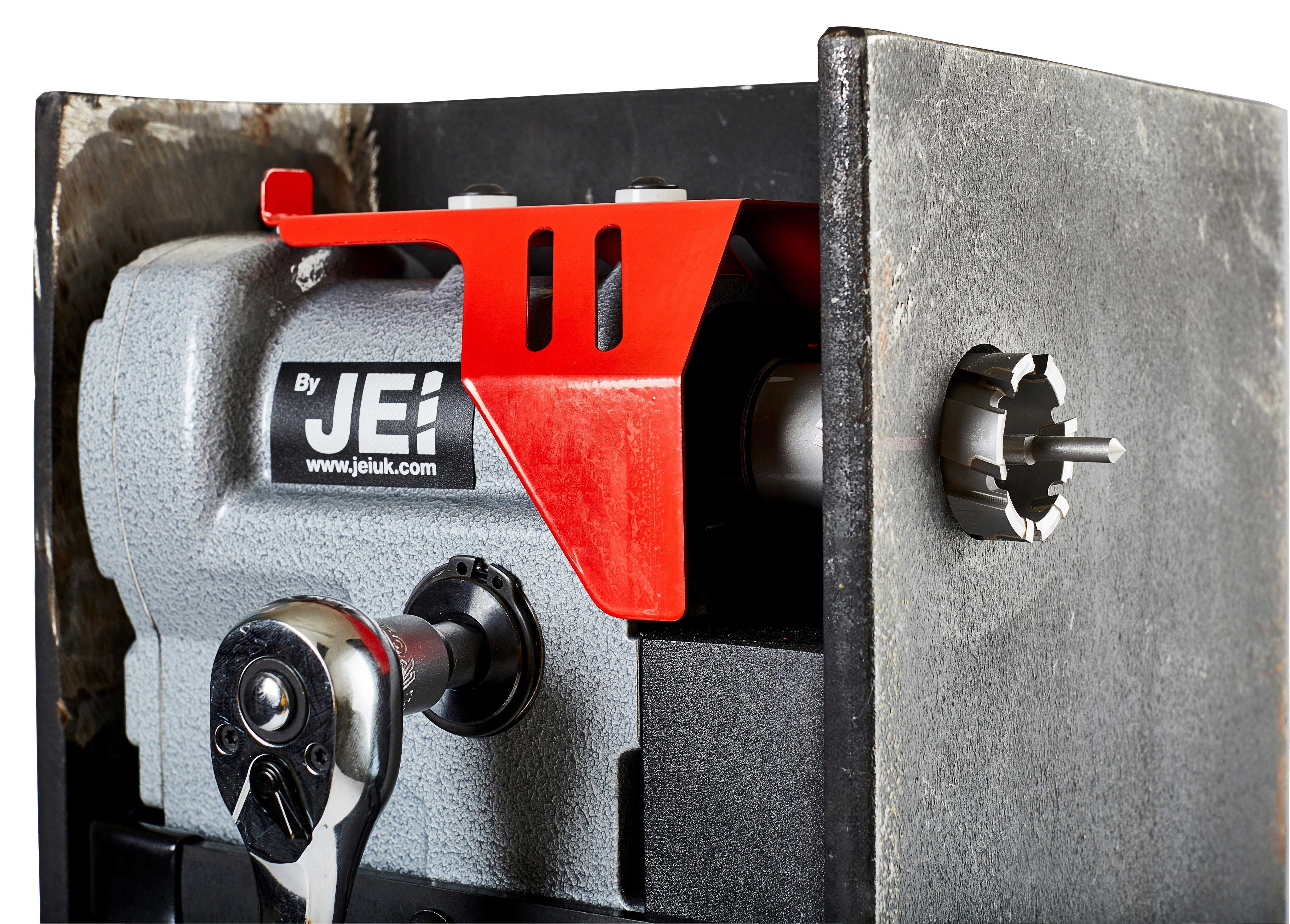

- Compact design perfectly suited to space restricted areas.
- Maximum drilling diameter of 35 mm with annular cutters.

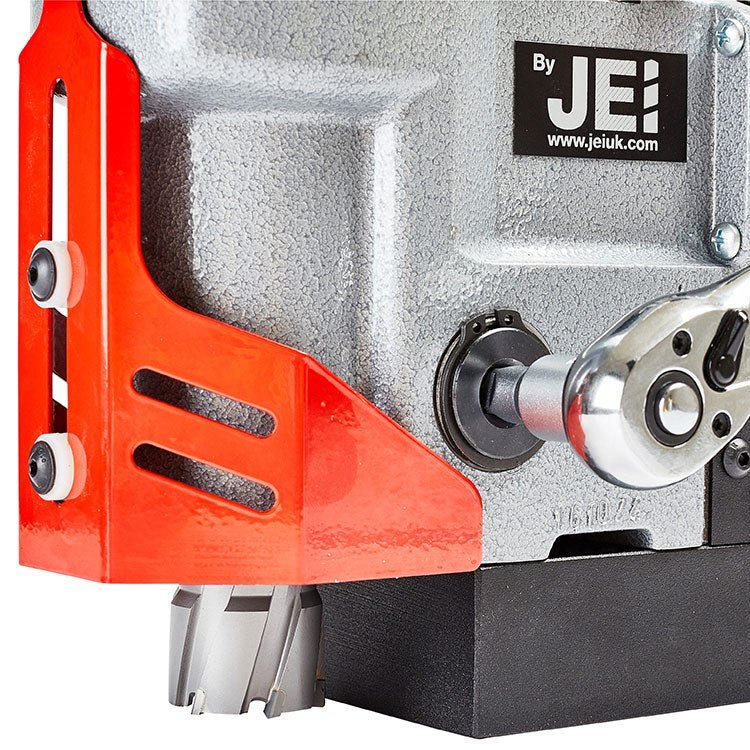

- Will accept standard length (35 mm) tungsten carbide annular cutters.
- Positive quill drive for close tolerance holes.

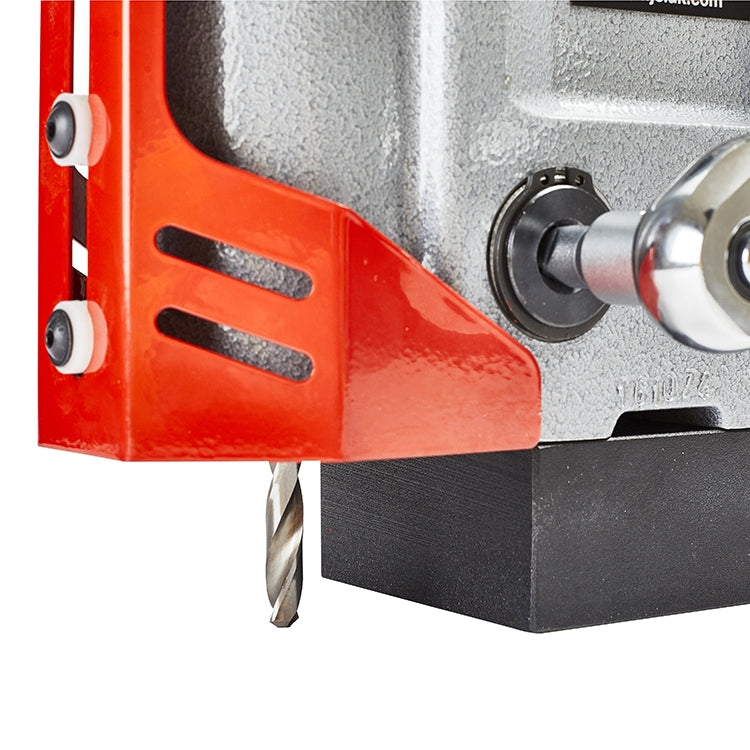

- Accepts short series twist drills with 19.05 mm (3/4”) weldon shank.
- Integrated safety guard.
- Detachable feed ratchet handle can be fixed from either left or right side.
- Lifting handle for easy transportation.
| Model | MiniBeast™ LP35+ |
| Spindle | 19 mm |
| Weight | 9.5 kg |
| Max Drilling | 35 mm |
| Max. Drilling Depth | 20 mm with HSS Turbo™ Steel annular cutter. 32 mm with Turbo™ Tough TCT annular cutter |
| Twist Drill Capacity | 12 mm Ø with optional Turbo™ Twist drills |
| Countersink Capacity | 30 mm |
| Motor | 920 W |
| RPM | 1 Fixed Speed no load 520 RPM loaded 350 RPM |
| Height (Fixed) | 176 mm |
| Length x Width | 380 x 147 mm |
| Magnetic Base L x W | 165 x 80 mm |
| Magnet Deadlift | 910 kg on 1” Plate (8900 N) |
| Noise Level | < 90dB |
| Vibration Level | < 2.5 m/s2 |
| Voltage/ Part no | 110 V – DRILL-LP35P/1 240 V – DRILL-LP35P/2 |
| Shipping Weight | 12.4 kg |
| Shipping Dimensions | 490 x 380 x 190 mm |
