Parweld XR943A Air Fed Welding Helmet & Papr Complete Unit

Powered Air Purifying Respirator
For Particulate Environments

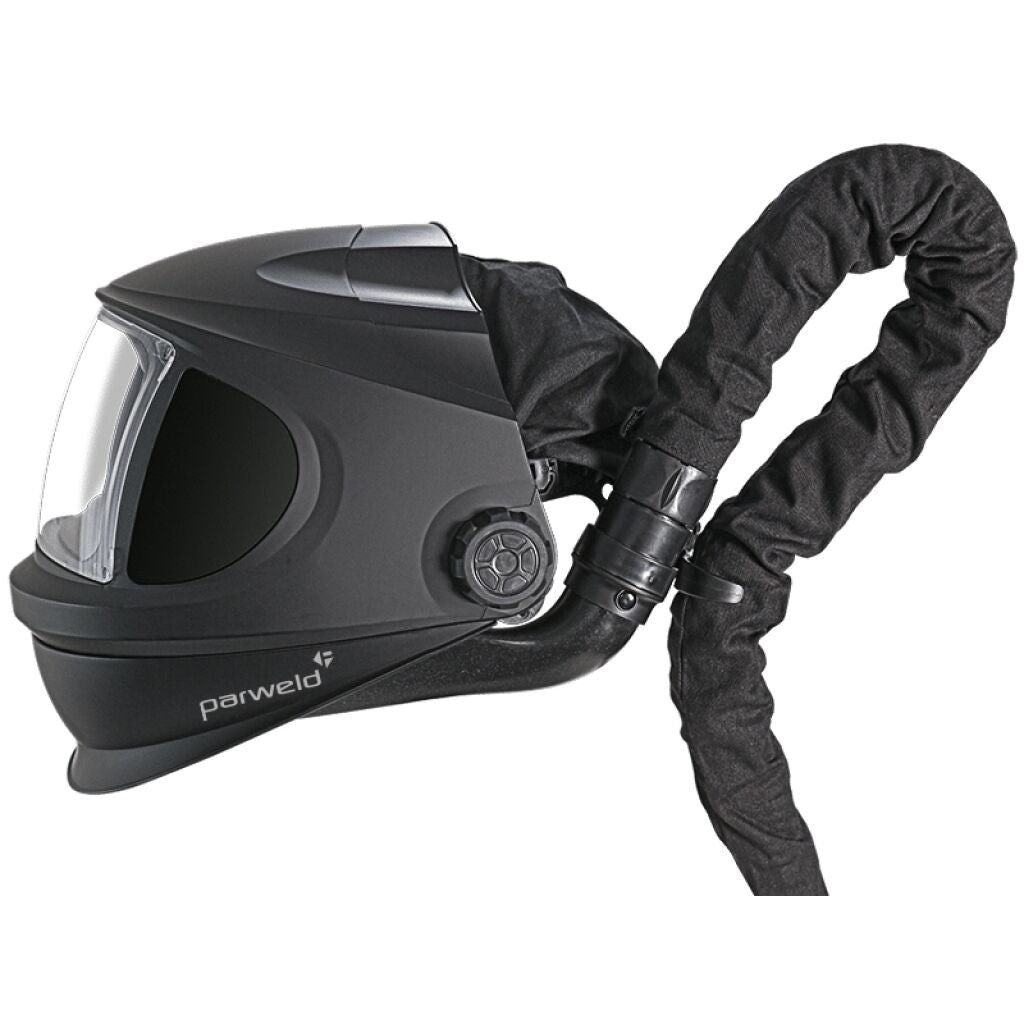

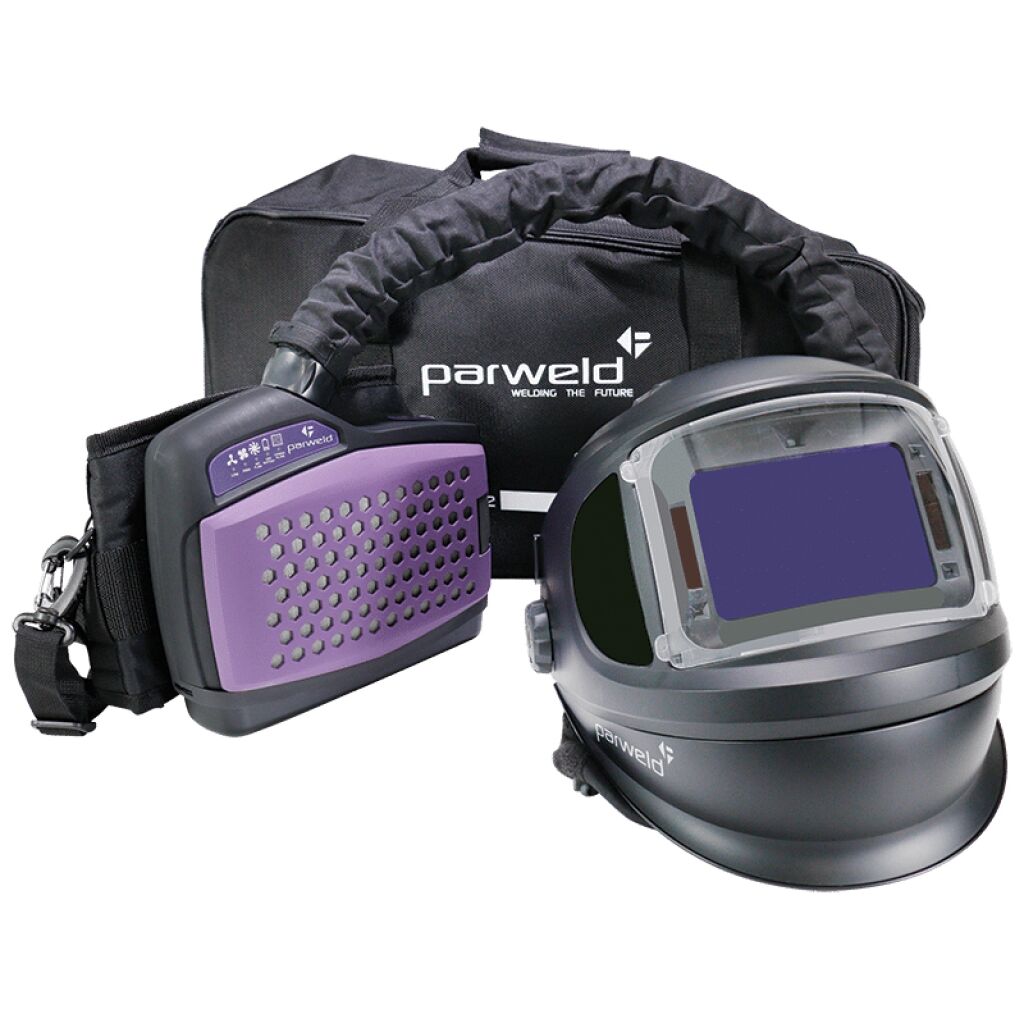

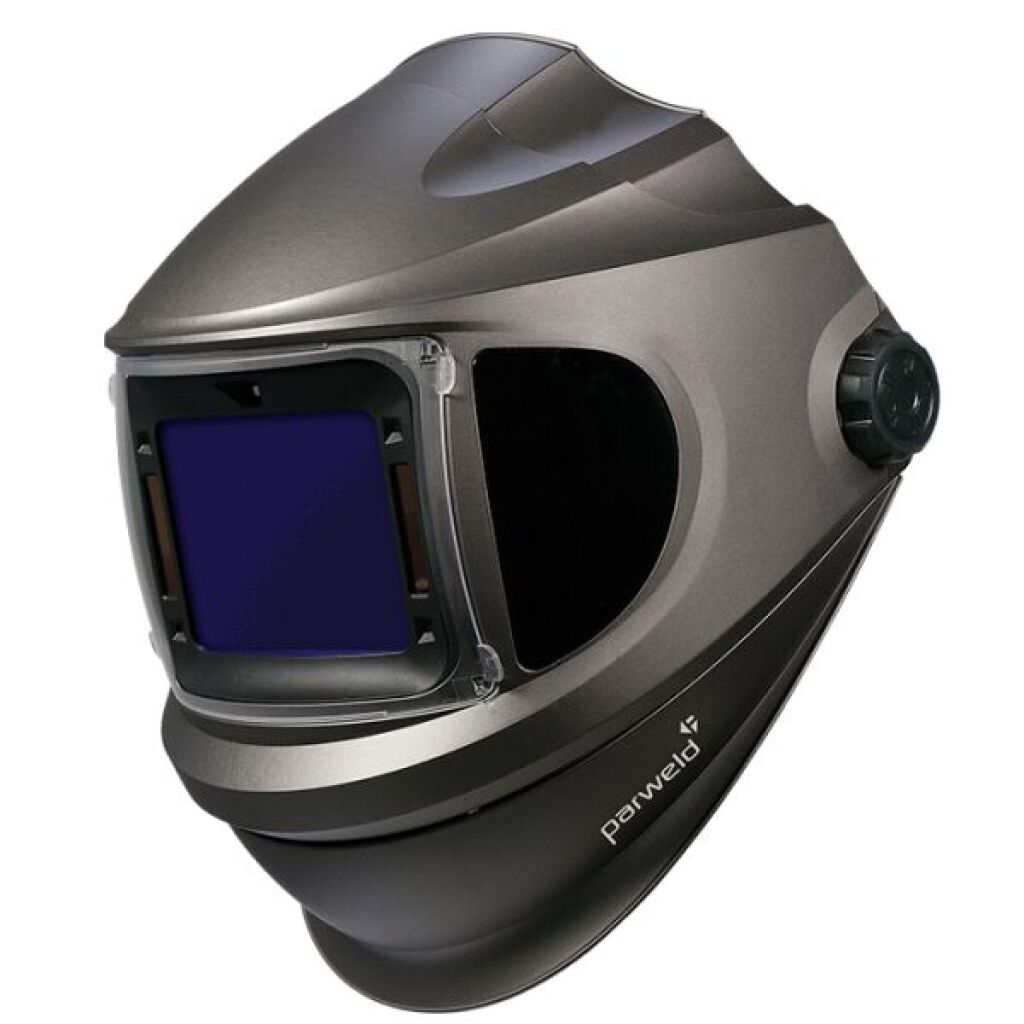

The Parweld XR943A PAPR (Powered Air Purifying Respirator) is an Air Fed Welding Helmet designed for particulate environments, offering a flip-up welding and grinding helmet, a simple status display, and a smooth, ultra-quiet brushless motor with two-speed airflow control. It features audible and vibration warnings, a comfort belt with detachable shoulder straps, and a removable lithium-ion battery with a 10-hour runtime.

The unit is lightweight at less than 1.1 kg and includes easy-to-operate controls. It comes supplied with an A1 P3 main filter, an activated carbon pre-filter, and a metal spark arrester for comprehensive filtration.

This system is TH3P certified in accordance with European standard EN12941: 1998/A 1:2004/A2:2008 TH3P.

Delivery includes: PAPR Respiratory Filter System, XR1020 – Flip-Up Front Welding & Grinding Helmet (includes Face Seal and Air Duct), XR1021 – Air Duct and Internal Diffuser Assembly, XR1022 – Face Seal and Fixing Kit, XR423 – Front Cover Lens, XR353 – Auto-Darkening Filter (ADF), XR435 – Side Window Replacement Kit (includes Obscure Cover), XR433 – Grinding Protective Lens (Curved), XR434 – Inside Cover Lens (ADF), XR342 – Adjustable Headband, XR372 – Sweatband, XR373 – Headband Fixing Hand Nuts (2 Piece Set – Pair), XR436 – Diopter Holder Bracket (2 Piece Set – Pair), XR344 – Hose Clip For Headband, CR2450 – Battery (Single)

Includes

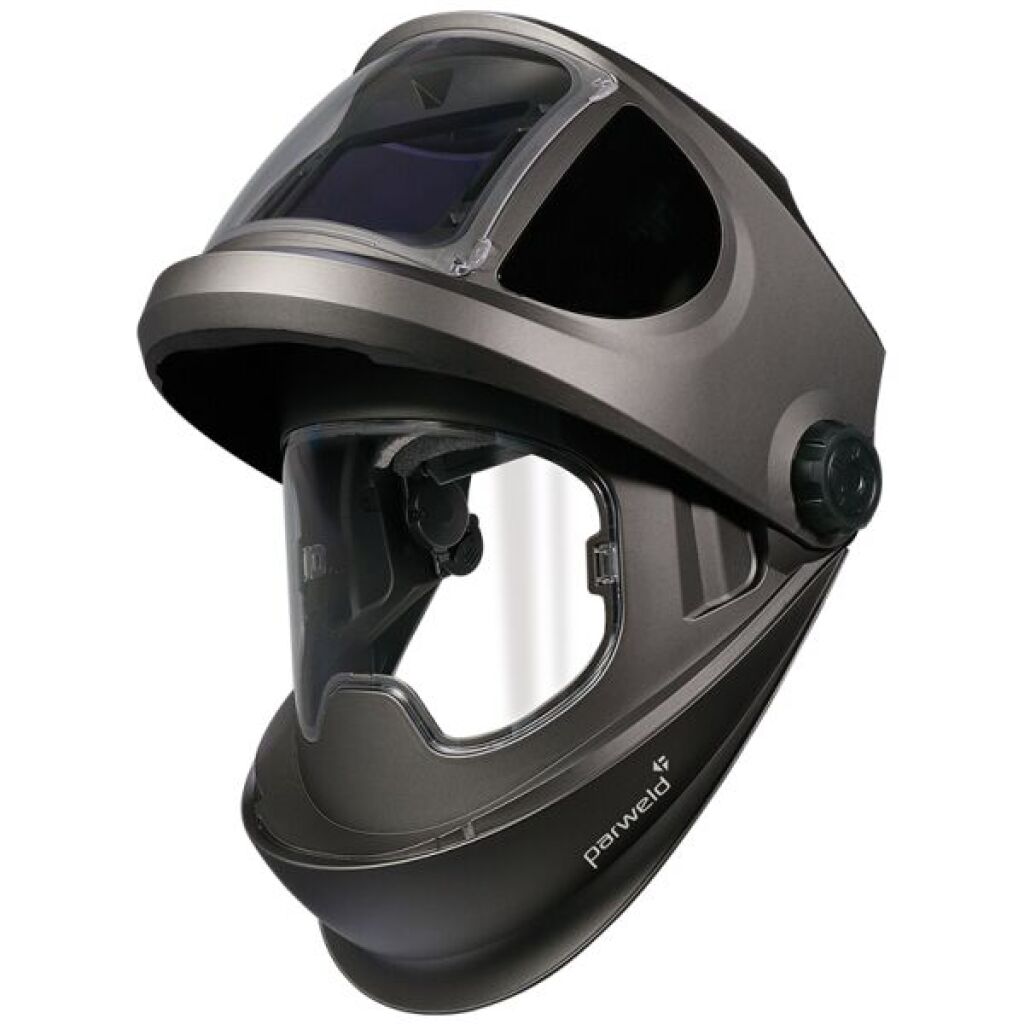

X Flip Up Welding and Grinding Helmet
X Simple and Clear Status Display
X Smooth and Ultra-Quiet Brushless Motor
X Two Speed Airflow Control
X Audible and Vibration Warnings
X Comfort Belt with Detachable Shoulder Straps
X Removable Li/ion Battery
X Run Time 10hrs+
X Easy to Operate Controls
X Supplied with a P3 Main Filter, Activated Carbon
Pre Filter and Metal Spark Arrester
X Weighs Less Than 1.1kg

TECHNICAL DATA
Air flow rate 170 or 220nl/min
Material PC + ABS
Motor Brushless
Fuse Electronic
Battery Li-ion 14.8V rechargeable
Battery
Charging time
Approx 2.5h
Charging Cycles >350
Run time 11 hour @ 170nl/min
9 hour @ 220nl/min
(min fully charged new battery
& filter room temp.)
Noise Max. 60dB(A)
Voltage/Capacity 14.8V/2.2Ah
Pre filter Carbon (odour)
Weight 288g (1097g incl. Filter
and Battery)
Dimensions 224 x 190 x 70 mm (MAX)
Air hose length 850mm
Master Filter
Type
P3 TH3P R SL for TH3P system
(Europe)
Standards EN12941:1998/A1:2003/
A2:2008 TH3 P R SL

Th3P Filter Applications:
• Metal Grinding and Cutting Applications
• Welding of Aluminium by MIG or TIG Processes
• Welding of Stainless Steel by MIG & TIG Processes
• Welding of Steel by MMA, MIG or TIG
• Welding of Zinc Coated Steel by MIG or TIG

PAPR Spare Parts List
Part No;
XR1003 Blower unit without belt
(no filters but with cover)
XR1004 Filter cover with purple catch
XR1005 Spark Arrestor
XR1006 Carbon Pre-filter
XR1007 P3 HEPA filter
XR1008 Comfort belt with shoulder straps
XR1109 Flex air hose (inc Flame Retardant cover) 1.05m
XR1108 Flame Retardant hose cover 1.05m
XR1016 BATTERY Li/ion
XR1017 Universal charger
XR1018 papr unit excluding helmet
XR1001 Nylon carry bag

Outer Cover Lens XR423 - https://advancedweldingsupplies.com/products/outer-cover-lens-curved-pk-of-5-for-parweld-xr943h?_pos=1&_psq=XR423&_ss=e&_v=1.0

Side Window Kit (Pair) XR435 - https://advancedweldingsupplies.com/products/parweld-xr943h-side-window-kit

Grinding Lens Curved XR433 - https://advancedweldingsupplies.com/products/xr433-grinding-protective-lens-for-parweld-xr943a-pack-of-5?_pos=1&_psq=xr433&_ss=e&_v=1.0

Inside cover Lens XR434 - https://advancedweldingsupplies.com/products/inside-cover-lense-114x-90-pack-of-10

Spark Arrestor XR1005 - https://advancedweldingsupplies.com/products/spark-arrestor-pack-of-5
