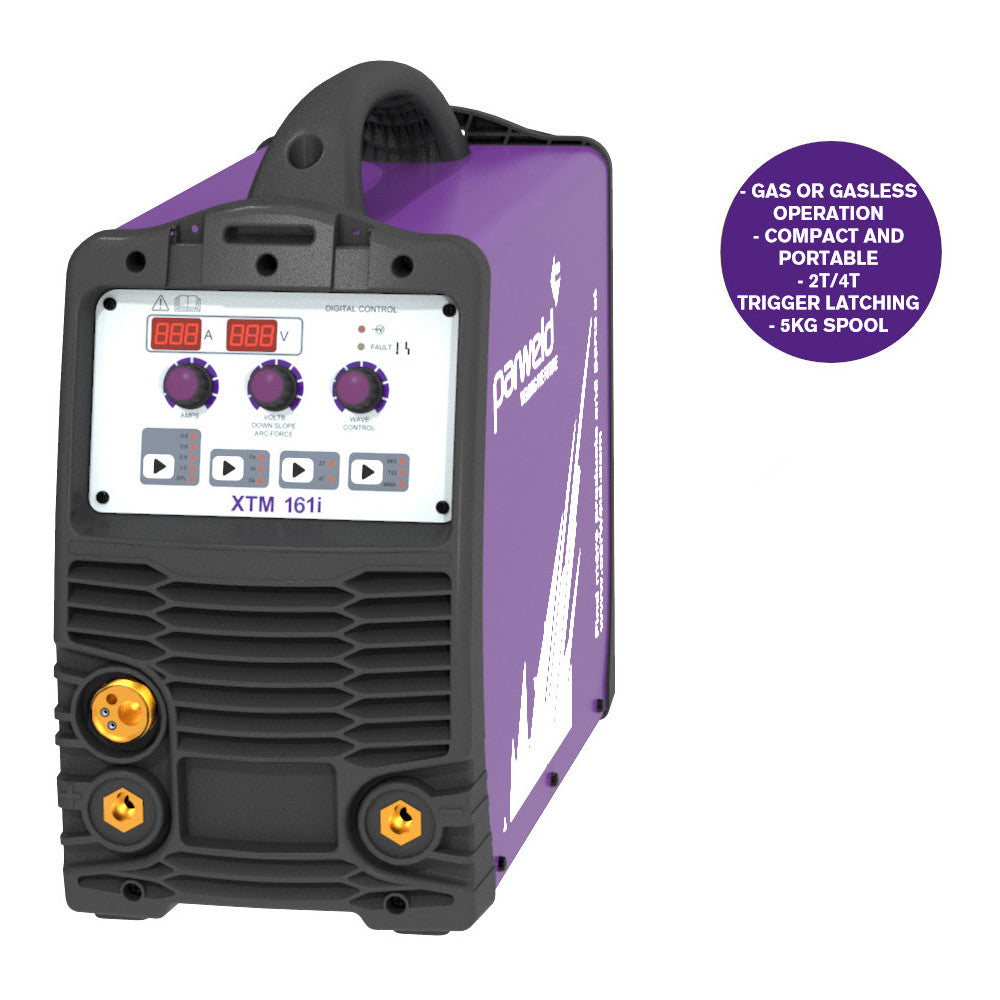

Parweld XTM 161i Mig Welding Inverter

In stock
SKU: XTM161i
£568 Excl.VAT
Package Type

Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.

Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.

+ 0% interest
+ Instant approval decisions
+ No extra charges – ever

Subject to status. Terms apply.

Entry level Parweld XTM 161i MIG welding inverter with dual digital display, synergic control for quick setting and gas or gasless operation. Material of up to 4mm thickness can be welded.

Suitable for MMA, lift TIG, manual MIG or synergic applications and can take 0.6 - 0.8mm wire diameters on 1kg (100mm) or 5kg (200mm) spools.

Key Features:

  • Compact and portable
  • Synergic MIG
  • Lift TIG and MMA
  • Use with or without gas
  • Dual digital display
  • 2T/4T trigger latching

Technical Specifications:

  • Input voltage: 230V 1 Phase
  • Input current (Eff): 16.3A
  • Maximum current: 160A
  • Voltage: 13.5 - 22V
  • Duty cycle: 160A @ 40%
  • Min. fuse rating: 16A
  • KVA: 3.6
  • Generator size*: 5 KVA
  • Feed box: 2R
  • Wire feed speed (m/min): 2-15
  • Spool: 200mm (5kg) 100mm (1kg)
  • Wire: 0.6 - 0.8mm
  • Enclosure protection: IP23S
  • Size (mm): 469 x 223 x 421
  • Weight (kg): 15.5

Standard Package: (XTM161i)

  • XTM 161i MIG Inverter
  • 3m input cable and earth lead
  • Gas hose
  • 3 year return to base warranty and 3 year service plan**

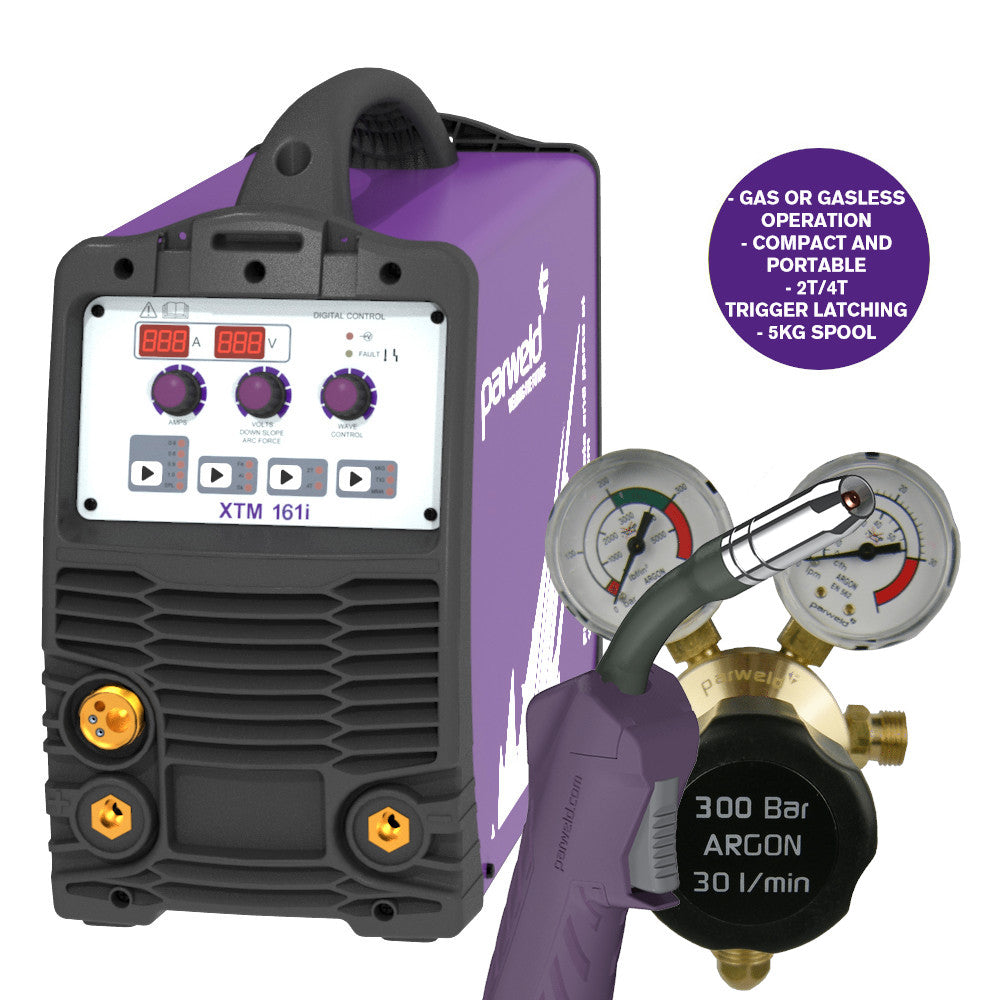

MIG Torch Package: (XTM161i-P1)
(As above plus the following)

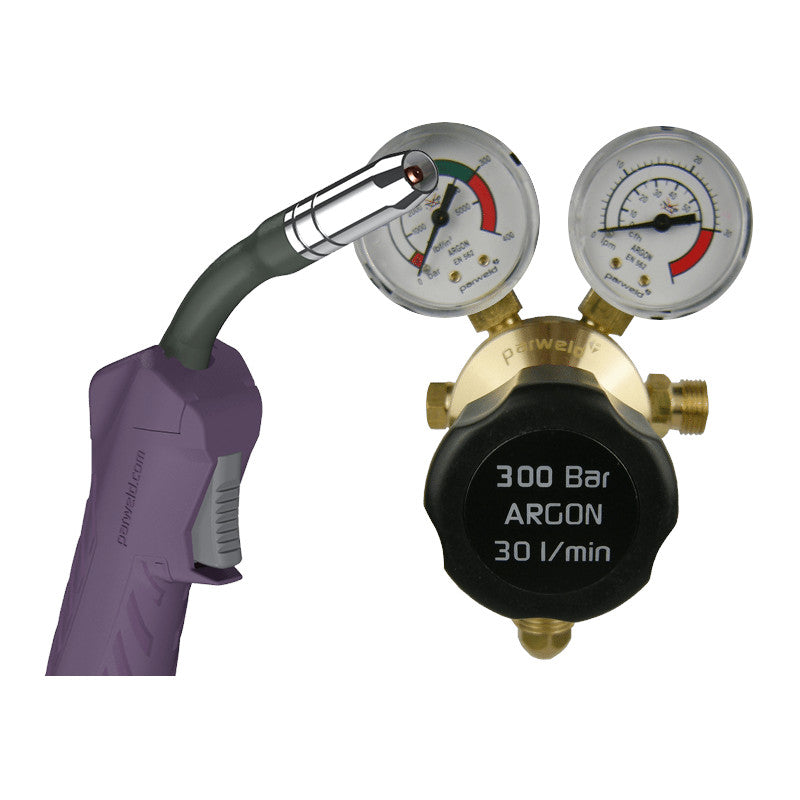

  • ECR1500-30ER: Eco-Grip Max Torch x 3m
  • E700123: Argon regulator 300 bar SS 2 gauge

*Generator requires AVC
**Warranty vaild for United Kingdom and Ireland only
