Parweld XTS 163 DV 110/230v MMA welding inverter package with dual voltage smart switching, digital control, touch button settings, lift tig mode, hot start and arc force.
Key Features:
- Easy rod striking with arc force
- Re-striking with hot start
- Over voltage and current protection
- Digital amperage display
- Smart switching
- Multi Mode
- Generator friendly
Technical Specifications:
- Duty cycle: 160A @ 25% (230v)
- Fuse rating: 32A @ 110V / 16A @ 230v
- Input voltage: 110/230v 1 Phase
- Output (A): 5-140A (110v) / 5-160A (230v)
- Input (max): 17A @ 110v / 15.5 @ 230v
- Electrode size (max): 3.2mm
- KVA: 4.5
- Cable connection: 35-50 dinse
- Enclosure protection: IP23S
- Size (mm): 285 x 120 x 250
- Weight (kg): 4.8

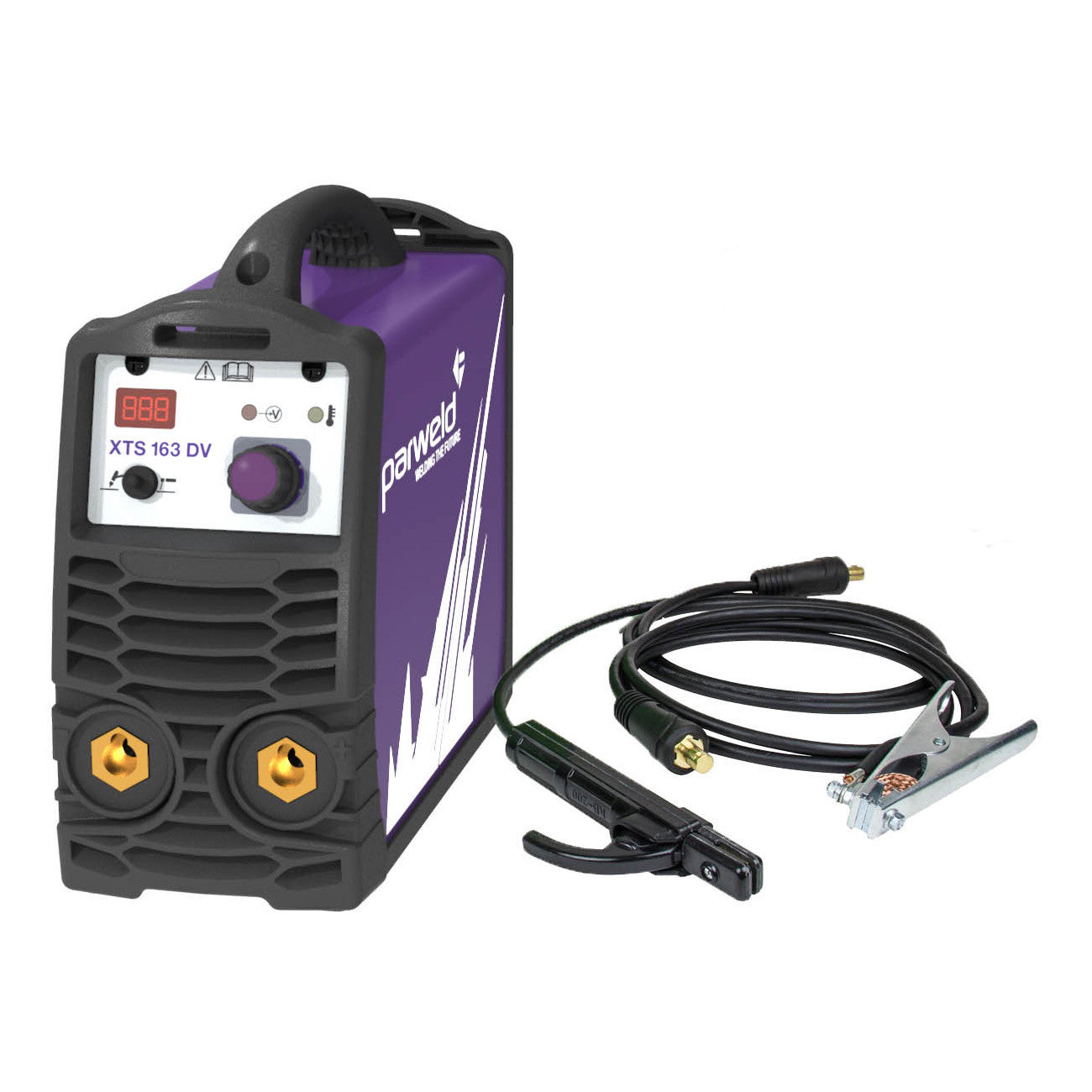

Standard Package (XTS163DV):
- XTS 163DV MMA Inverter
- 3m electrode holder (CKE203)
- 3m earth cable clamp kit (CKC203)
- 3 year return to base warranty and 3 year servicing plan*

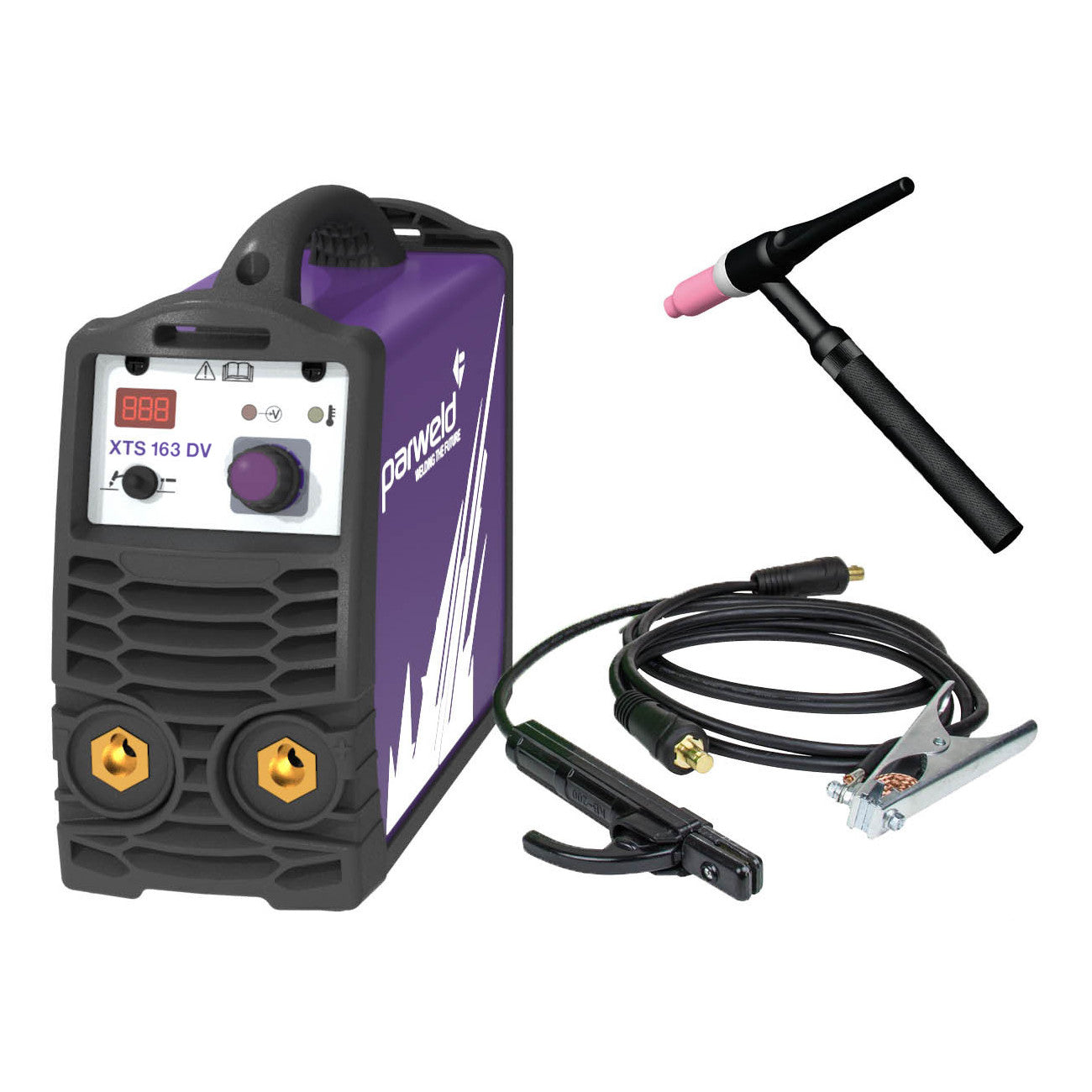

Torch Package: (XTS163DV-P1)
(As above plus the following)
- WP17V-12-2IX TIG torch x 4m (12.5ft)
All Parweld MMA inverters are manufactured to IP23S, ISO/IEC 60974-1, 60974-6, RoHS compliant.
*Warranty vaild for United Kingdom and Ireland only
