The Parweld XTS 204 MMA inverter is a highly portable 200 amp welder featuring a digital display control panel for ease of use and multi mode dial for selecting electrode type and lift TIG options.
Manual metal arc (MMA) electrodes up to 4mm diameter can be welded with the XTS 204 inverter which is suitable for mild steel, stainless steel and cast iron applications.
Key Features:
- Electrode striking with arc force
- MMA rod re-striking with hot start
- Over voltage and current protection
- Lift TIG mode
- Digital display
- Generator friendly*
Technical Specifications:
- Output current: 10-200A DC
- Input voltage: 230V Single Phase
- Input current (Eff): 20A
- Duty cycle: 200A @ 25%
- Electrode size (max): 4.0mm
- KVA: 8.2
- Fuse rating: 32A
- Cable connection: 35-50 dinse
- No load voltage: 50V
- Enclosure protection: IP23S
- Size (mm): 285 x 120 x 250
- Weight (kg): 4.8
Standard Package (XTS 204):

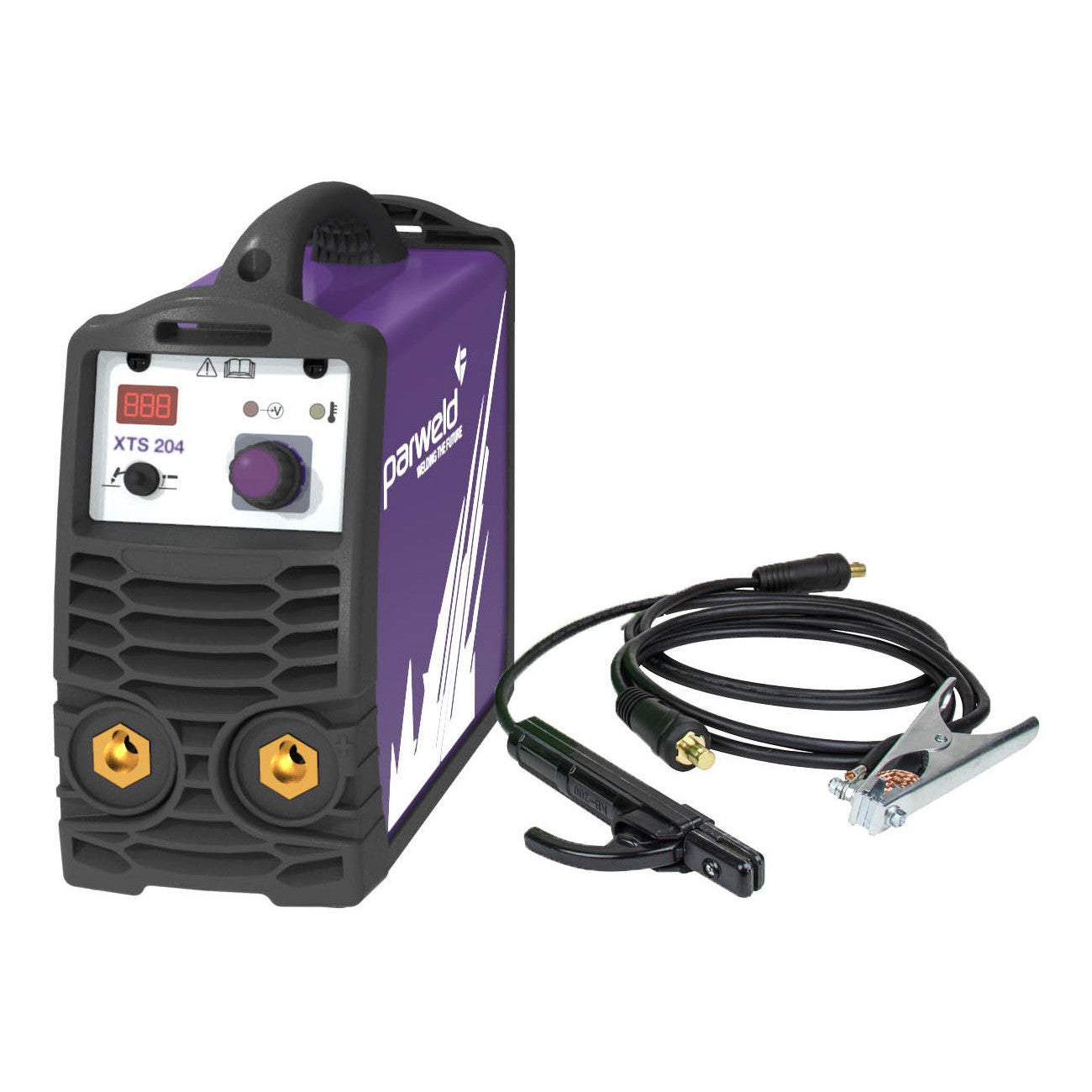

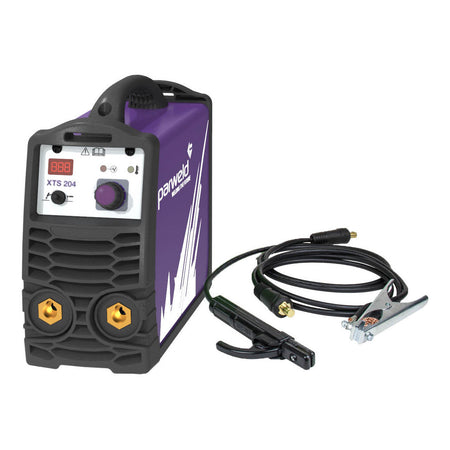

- XTS 204 MMA Inverter
- 3m Input cable and earth lead
- Electrode holder
- 3 year return to base warranty and 3 year servicing plan

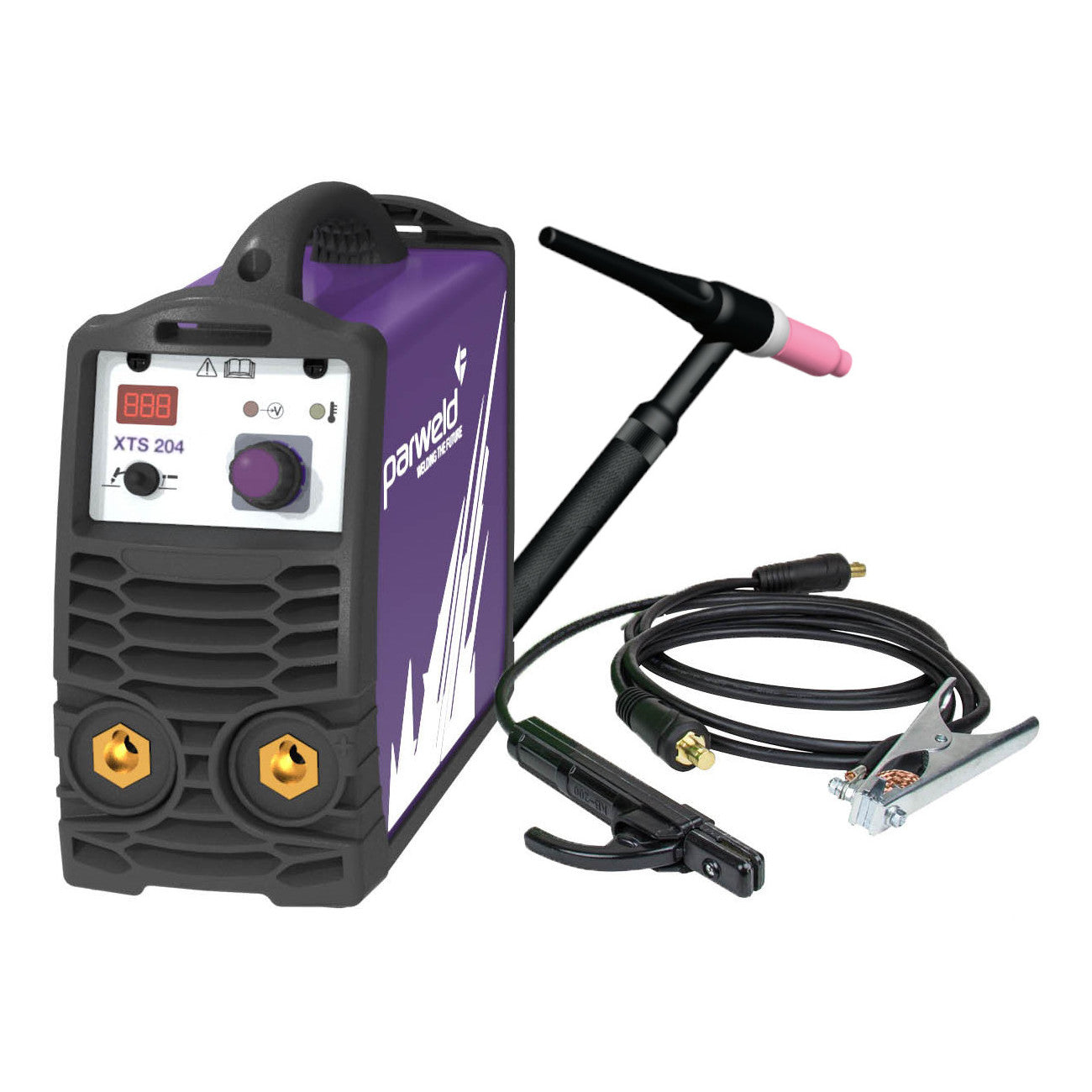

TIG Torch Package (XTS 204-P1):
As per standard package plus
- WP17V-12-2IX Tig Torch x 4m (12.5ft)
Manufactured to IP23S, ISO/IEC 60974-1 and 60974-6, RoHS compliant
*10 KVA - Requires AVC
**Warranty valid for UK and Ireland only
