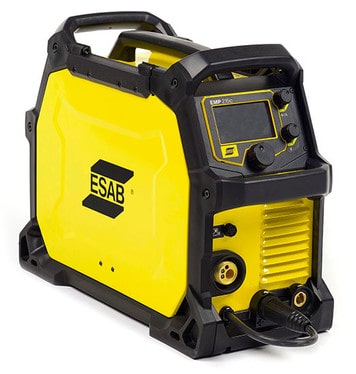

Rebel™ EMP 215ic
Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.
Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.
+ 0% interest
+ Instant approval decisions
+ No extra charges – ever
Subject to status. Terms apply.
Couldn't load pickup availability
MIG. Flux-Cored. TIG. Stick Welding. No Problem.
Rebel is the true multi-process, multi-voltage industrial welding machine. It also offers the most portable, mobile welding in its class, outperforming the competition every time. Whether you’re in the workshop or on-site, you can tackle the most demanding jobs with Rebel. That's why the rebellion just keeps growing.
Ready for Anything, Anywhere.
You don’t work your average job. As a result, you need to be ready for anything – any process, any power, any material, anywhere and anytime. With Rebel, you’ll get the high performance you need, everywhere you go, even in the most demanding environment. MIG, Flux-Cored, Stick – even those tricky 6010 rods – or TIG will be a breeze with a Rebel.
Necessary Toughness.
Working in harsh environments, you need equipment that can handle them. With Rebel, you’ll get the sturdy, multi-handle roll cage, steel unibody construction, and IP23S-level protection – passing stringent tests and ensuring water and foreign particles can’t touch it. With Rebel, you’ll get the machine you need to handle the demanding environments you work in.
Next Level Technology.
Rebel is smart…really smart. In fact, with its sMIG (smartMIG) technology, it’s sure to impress even the toughest critics. For the novice, there is basic mode, which makes setup simple. For the experienced welder, the exclusive, built-in arc control constantly monitors welds and adapts, delivering the smooth, stable arc you need and the superior, repeatable welds you want.
Specifications
Specifications | |
---|---|
Voltage | 120/230 V 1, 50/60 Hz |
Max Output | 240 A |
MIG (GMAW) Welding Output | 130 A / 20.5 V (120) @ 20 % Duty Cycle 205 A / 24.3 V (230) @ 25 % Duty Cycle |
MMA (SMAW) Welding Output | 90 A / 23.6 V (120) @ 40 % Duty Cycle 180 A / 27.2 V (230) @ 25 % Duty Cycle |
TIG (GTAW) Welding Output | 130 A / 15.2 V (120) @ 40 % Duty Cycle 180 A / 17.2 V (230) @ 30 % Duty Cycle |
Current Range 230V 120V |
5 - 240 A 5 - 150 A |
Voltage Range | 90-270 V 10-26 V |
Wire Feeder Specifications | 1.5-12.1 m/min |
Open Circuit Voltage | 68 V |
Use With Welding Material | 9.5 mm (3/8 in.) |
Metal Flux Cored Mild Steel Stainless Steel Aluminium |
0.8-1.2 mm 0.6-1.0 mm 0.8-1.0 mm 0.8-1.2 mm |
Max Spool Diameter | 100 & 200 mm |
Supply Plug | 230 V, Schuko 16A plug |
MCableX | 3 m 3x2,5 mm² H07RN-F |
rated kVA | 7 kVA (230 V) 4.5 kVA (120 V) |
Enclosure Class | IP23S |
Certification & Standards | CSA: E60974-1-00, IEC 60974-1 CE: IEC/EN 60974-1, 5, 7, 10, 12 & 13. RoHS |
Dimensions, L x W x H | 584 x 229 x 406 mm |
Weight | 18.2 kg |
