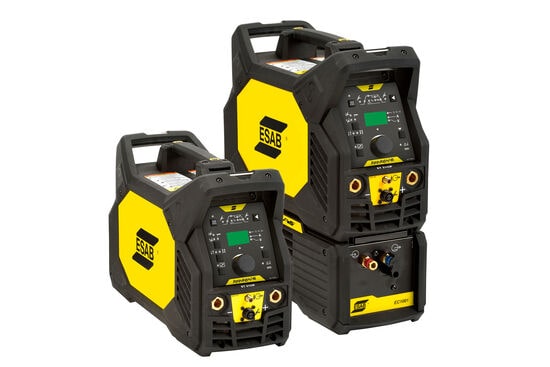

Renegade ET 180iP
£995.19
Excl.VAT
Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.
Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.
+ 0% interest
+ Instant approval decisions
+ No extra charges – ever
Subject to status. Terms apply.
Couldn't load pickup availability
Experience the maximum power you can get from a single-phase machine.
- Run up to 180 A / 210 A
- Welding cables up to 100 m
- Lightweight and portable
- IP23 rated
- Highest durability housing with IP23 for indoor and outdoor use
- TIG Pulse up to 999 Hz to increase control of heat input and weld pool
- PFC for stable arc even with extra long mains cable, up to 100 m
- Easy to read and quick to set panel increasing the accuracy and reduces the down time
- Dual-current mode trigger functionality to switch between two output current levels which controls the heat input and size of the weld pool
- Modular system with tool-less connection to water cooler and trolley
- ESAB SR-B TIG torch included
| Specifications | |
|---|---|
| Voltage | 115/230 V 1, 50/60 Hz |
| MMA Welding Output | 110 A / 24.4 V (115 VAC) @ 25 % Duty Cycle 71 A / 22.8 V (115 VAC) @ 60 % Duty Cycle 55 A / 22.2 V (115 VAC) @ 100 % Duty Cycle 180 A / 27.2 V (230 VAC) @ 25 % Duty Cycle 116 A / 24.6 V (230 VAC) @ 60 % Duty Cycle 90 A / 23.6 V (230 VAC) @ 100 % Duty Cycle |
| TIG Welding Output | 140 A / 15.6 V (115 VAC) @ 25 % Duty Cycle 90 A / 13.6 V (115 VAC) @ 60 % Duty Cycle 70 A / 12.8 V (115 VAC) @ 100 % Duty Cycle 180 A / 17.2 V (230 VAC) @ 25 % Duty Cycle 116 A / 14.6 V (230 VAC) @ 60 % Duty Cycle 90 A / 13.6 V (230 VAC) @ 100 % Duty Cycle |
| Open Circuit Voltage | 78 VDC |
| Power Factor at Maximum Current | 0.99 |
| Setting Range MMA/DC 230 VAC 115 VAC |
20.6-27.2 V (15-180 A) 20.6-24.4 V (15-110 A) |
| Setting Range TIG/DC 115 VAC 230 VAC |
10.4-15.6 V (10-140 A) 10.4-17.2 V (10-180 A) |
| Fuse Slow | 16 A |
| Energy Save Mode | <30 W |
| Voltage Steps | ET 180iP |
| Supply Plug | CEE 16 A |
| Operating Temp | -10 to +40 °C |
| rated kVA | 6 kVA 3.3 kVA |
| Enclosure Class | IP23 |
| Dimensions, L x W x H | 460 x 200 x 320 mm |
| Weight | 11 kg |
