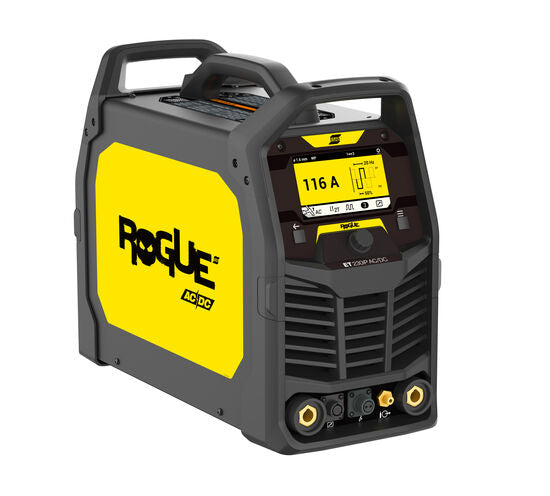

Rogue ET 230iP AC/DC Water Cooled
£2,899
Excl.VAT
Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.
Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.
+ 0% interest
+ Instant approval decisions
+ No extra charges – ever
Subject to status. Terms apply.
Couldn't load pickup availability
Highlights
- Various AC/DC waveforms (square, soft square, sinusoidal, triangle) for optimal energy transfer
- TIG AC and DC pulse up to 200 Hz for increased control of heat input and weld pool.
- Built-in PFC circuit ensures a stable arc, even with extra-long input cables, up to 100 m

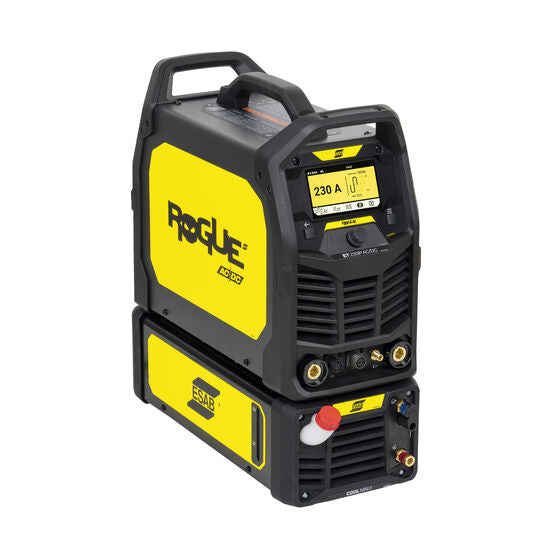

- New CoolMini 3 water-cooler for lightweight TIG torches
- High visibility intuitive 5-inch colour screen interface reduces downtime and improves accuracy
- Dual-current mode switches between two output current levels to control the heat input and the size of the weld pool
- Easy access to saved jobs by torch trigger
- Modular system with tool-less connection to trolley
- New Exeor TIG torch included
Industries
- Light Fabrication
- Pipe Construction
- Repair and Maintenance
- Aerospace
- Industrial and General Fabrication
- Chemical Industry
- Steel Erectors
- Training Schools
Processes
- GTAW (TIG)
- GTAW-DC (TIG DC)
- GTAW-AC (TIG AC)
- SMAW/MMA (Stick)
| Specifications | |
|---|---|
| Input Voltage | 115/230 V 15 %, 1 Φ, 50/60 Hz |
| Setting Range |
10.6-19.2 V (15-230 A) 20.4-23.6 V (10-90 A) 20.4-27.2 V (10-180 A) 10.2-19.2 V (5-230 A) 10.2-15 V (5-125 A) 10.6-15 V (15-125 A) |
| Open Circuit Voltage | 68 / 10 (VRD) VDC |
| Power Factor at Maximum Current | 99% |
| Fuse Slow | 16 A |
| Energy Save Mode | <30 W |
| Supply Plug | Schuko 16A |
| Operating Temp | -10 - +40 °C |
| rated kVA | 6 kVA (230) 3.3 kVA (115) |
| Enclosure Class | IP23S |
| Dimensions, L x W x H |
460 x 210 x 380 mm |
| Weight | 19 kg |
