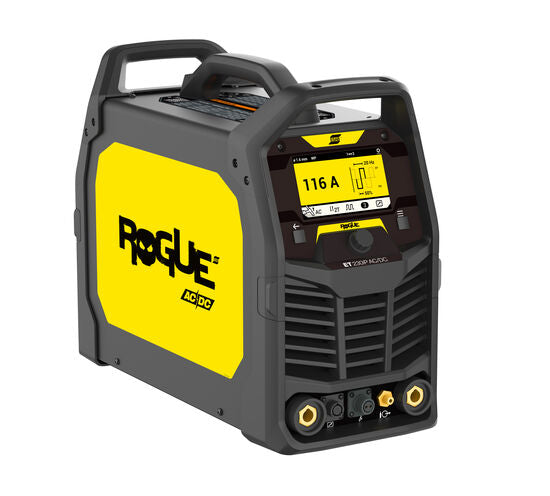

Rogue ET 230iP AC/DC Ready To Weld Air Cooled Package
Shop Now, Pay Later - Enjoy more flexibility at checkout with PayPal Credit and Pay in 3.
Spread the cost of your purchase over time – no interest, no hidden fees. Just smart, simple payments to suit your lifestyle.
+ 0% interest
+ Instant approval decisions
+ No extra charges – ever
Subject to status. Terms apply.
Couldn't load pickup availability
Rogue ET 230iP AC/DC is a portable, high quality, professional AC/DC TIG welder with extended parameter options to excel at everyday aluminium, stainless steel and carbon steel welding.
An intuitive graphical user interface with a 5-inch colour display brings new functionality for quick and easy adjustments. The machine can tackle a wide range of thicknesses including very thin plates.
Customizable waveshapes (square, soft square, sinusoidal, triangle) enables optimized heat input for high penetration on thicker metals and low distortion on thin sheets. Pulsing capabilities in both DC and AC TIG offer enhanced weld puddle control allowing the welder to further tailor the arc for multiple applications. TIG arc starts are crafted for optimum performance based on selected tungsten electrode diameter and type.
Durable housing design combines robustness and functionality with multiple lift points for easy manoeuvrability in both workshop and field applications.
Highlights
- Various AC/DC waveforms (square, soft square, sinusoidal, triangle) for optimal energy transfer
- TIG AC and DC pulse up to 200 Hz for increased control of heat input and weld pool.
- Built-in PFC circuit ensures a stable arc, even with extra-long input cables, up to 100 m
- New CoolMini 3 water-cooler for lightweight TIG torches
- High visibility intuitive 5-inch colour screen interface reduces downtime and improves accuracy
- Dual-current mode switches between two output current levels to control the heat input and the size of the weld pool
- Easy access to saved jobs by torch trigger
- Modular system with tool-less connection to trolley
- New Exeor TIG torch included
Industries
- Light Fabrication
- Pipe Construction
- Repair and Maintenance
- Aerospace
- Industrial and General Fabrication
- Chemical Industry
- Steel Erectors
- Training Schools
Processes
- GTAW (TIG)
- GTAW-DC (TIG DC)
- GTAW-AC (TIG AC)
- SMAW/MMA (Stick)
| Specifications | |
|---|---|
| Input Voltage | 115/230 V 15 %, 1 Φ, 50/60 Hz |
| Setting Range |
10.6-19.2 V (15-230 A) 20.4-23.6 V (10-90 A) 20.4-27.2 V (10-180 A) 10.2-19.2 V (5-230 A) 10.2-15 V (5-125 A) 10.6-15 V (15-125 A) |
| Open Circuit Voltage | 68 / 10 (VRD) VDC |
| Power Factor at Maximum Current | 99% |
| Fuse Slow | 16 A |
| Energy Save Mode | <30 W |
| Supply Plug | Schuko 16A |
| Operating Temp | -10 - +40 °C |
| rated kVA | 6 kVA (230) 3.3 kVA (115) |
| Enclosure Class | IP23S |
| Dimensions, L x W x H |
460 x 210 x 380 mm |
| Weight | 19 kg |
Delivery Includes: Power Source, work lead 3M, EXEOR TIG SR 17 Torch 4m, gas hose 4m
