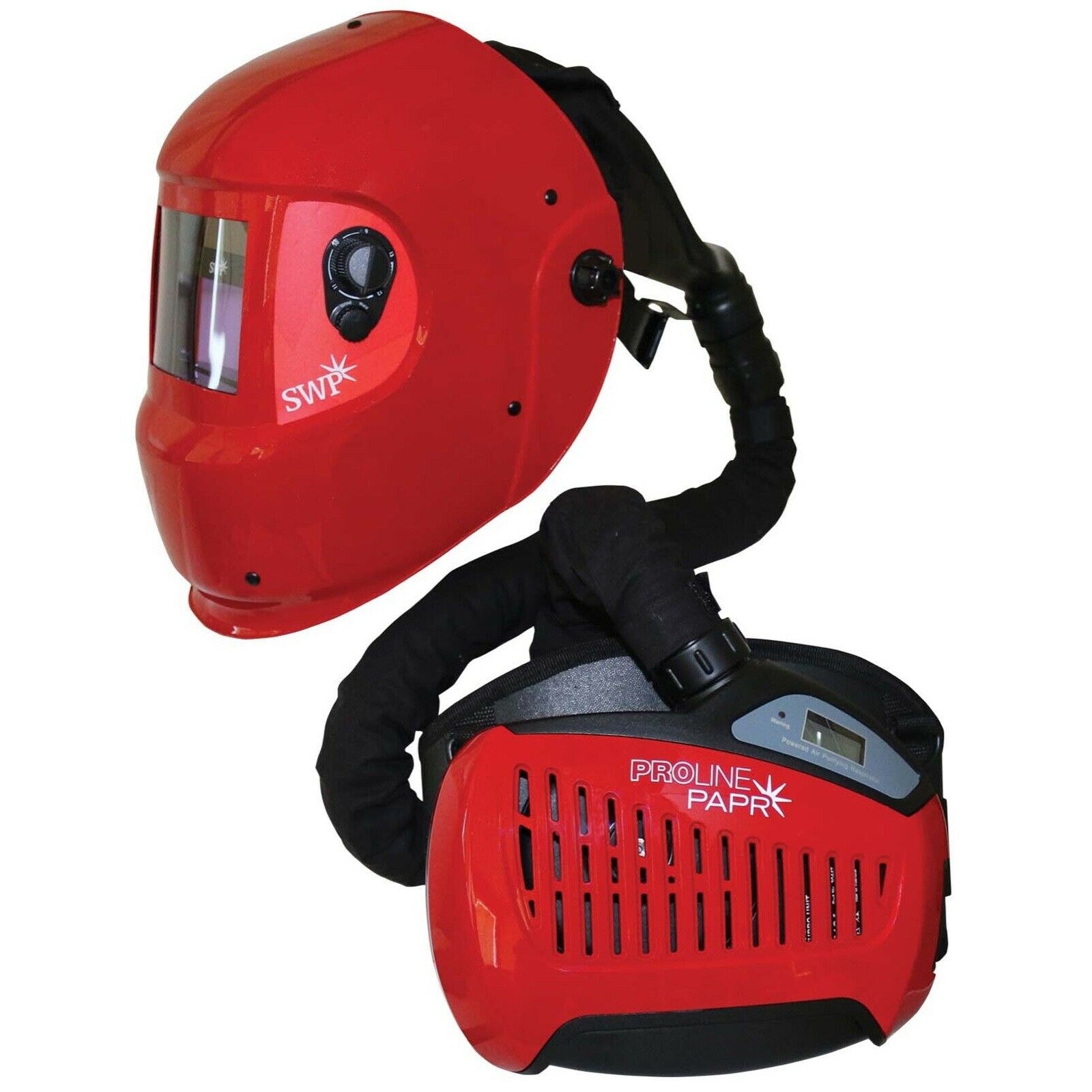

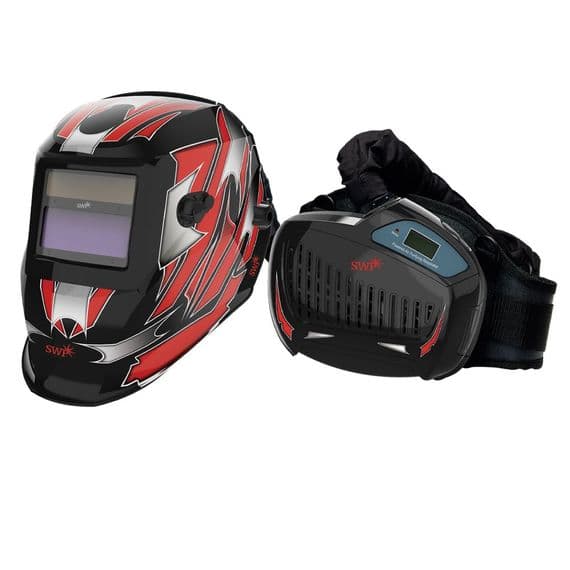

SWP Powered Air Purifying Respiratory System

The SWP 3144 Air Fed Welding Helmet is a Powered Air Purifying Respiratory (PAPR) system designed for professional welders. This advanced package provides comprehensive respiratory protection and a high-performance auto-darkening helmet, ideal for TIG and Plasma welding as well as MIG and Stick processes.

Key Technical Specifications and Features:

• Respiratory Protection: Features a TH3 PRSL rated filtration system with 99.996% efficiency, protecting against harmful particulates, welding fumes, and grinding dust.
• Airflow: Offers an automatically variable airflow with three settings: 170 l/min, 200 l/min, and 230 l/min, ensuring a constant supply of clean, filtered air to the user.

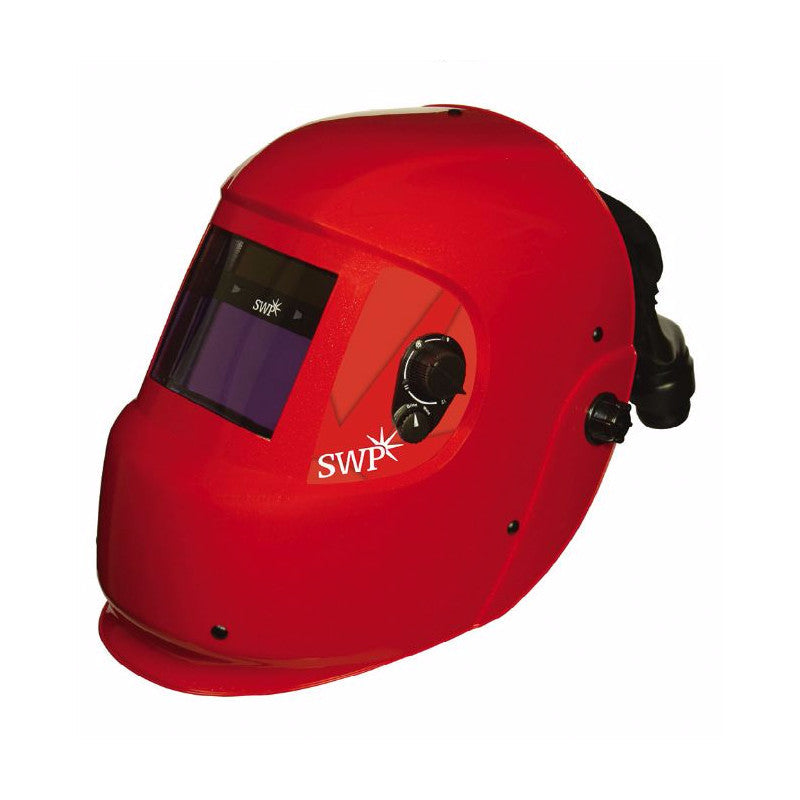

• Welding Helmet Viewing Area: A medium-sized viewing area of 97mm x 47mm or 100mm x 60mm (depending on the specific model variation).

• True Colour Technology: Equipped with 2nd generation True Colour technology for a natural, clear view of the workpiece and weld puddle, enhancing precision and reducing eye strain.
• Optical Classification: Classified at 1/1/1/2, providing excellent optical clarity.
• Shade Range: Variable shade control from 9-13, with a light state of 4.

• Arc Sensors: Features two or four arc sensors for reliable and fast switching.

• Minimum TIG Amperage: Rated for TIG welding from a low amperage of 3 amps.
• Grind Mode: Includes a dedicated grind function with a warning flash.

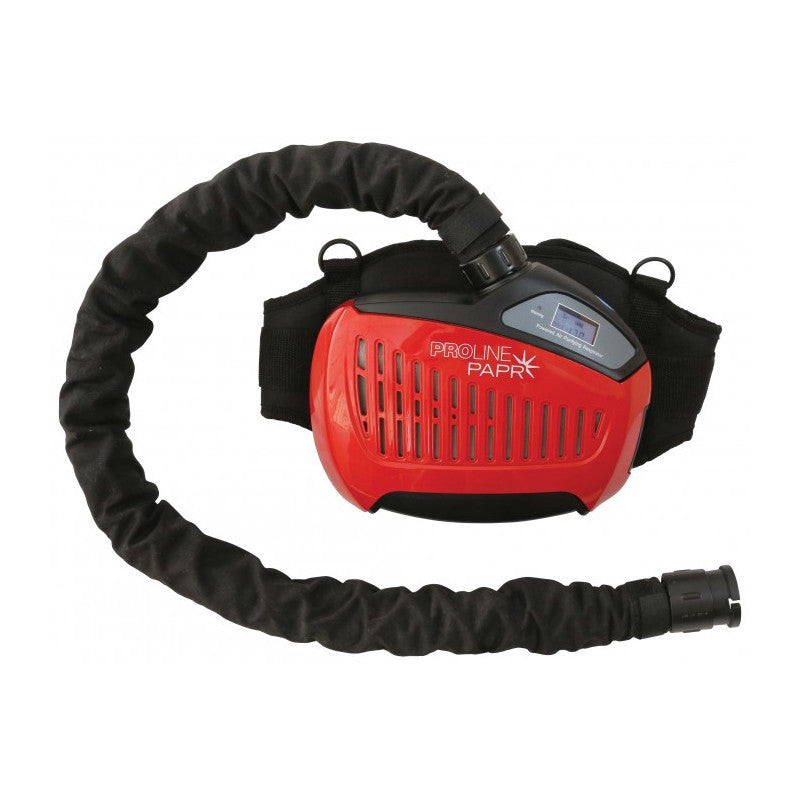

Battery and Power:

• Powered by a Li-ion 12V 4400mAh battery.

• Offers up to 10 hours of continuous operation on the lowest airflow setting.

• Features an LCD screen for monitoring airflow, battery life, and filter status.
• Automatic shutdown after 30 minutes of inactivity to save power.

Safety Features: Includes a vibration, audio, and flashing light alarm system to alert the user to a low battery, a jammed filter, or insufficient airflow.

• The helmet shell has a high-impact resistance rating.

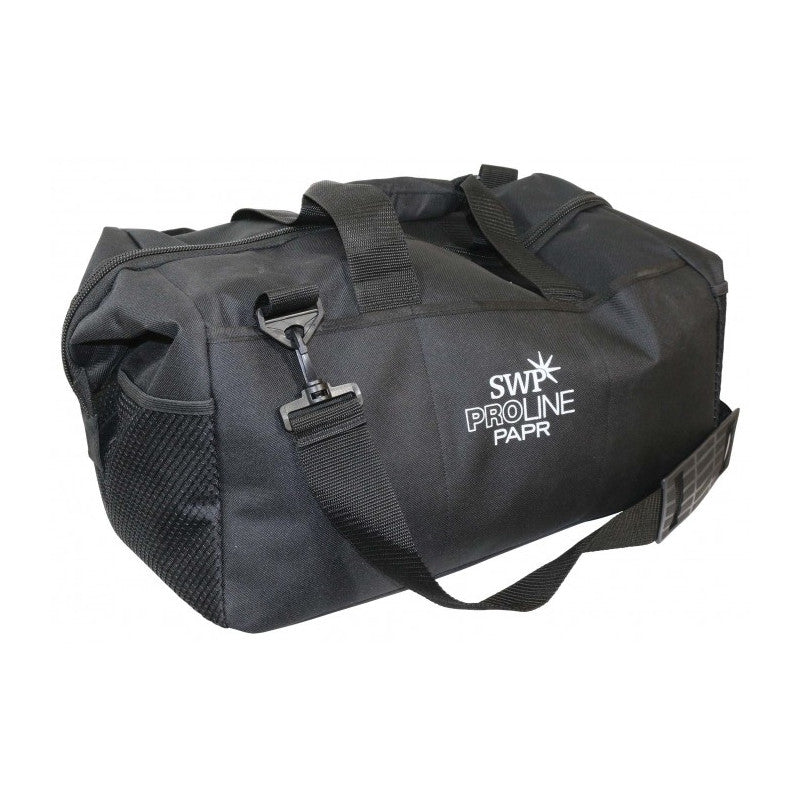

Package Contents: The complete package includes the helmet, PAPR unit, standard waistband, a P3 filter, a carry bag, and a 2-year warranty.
