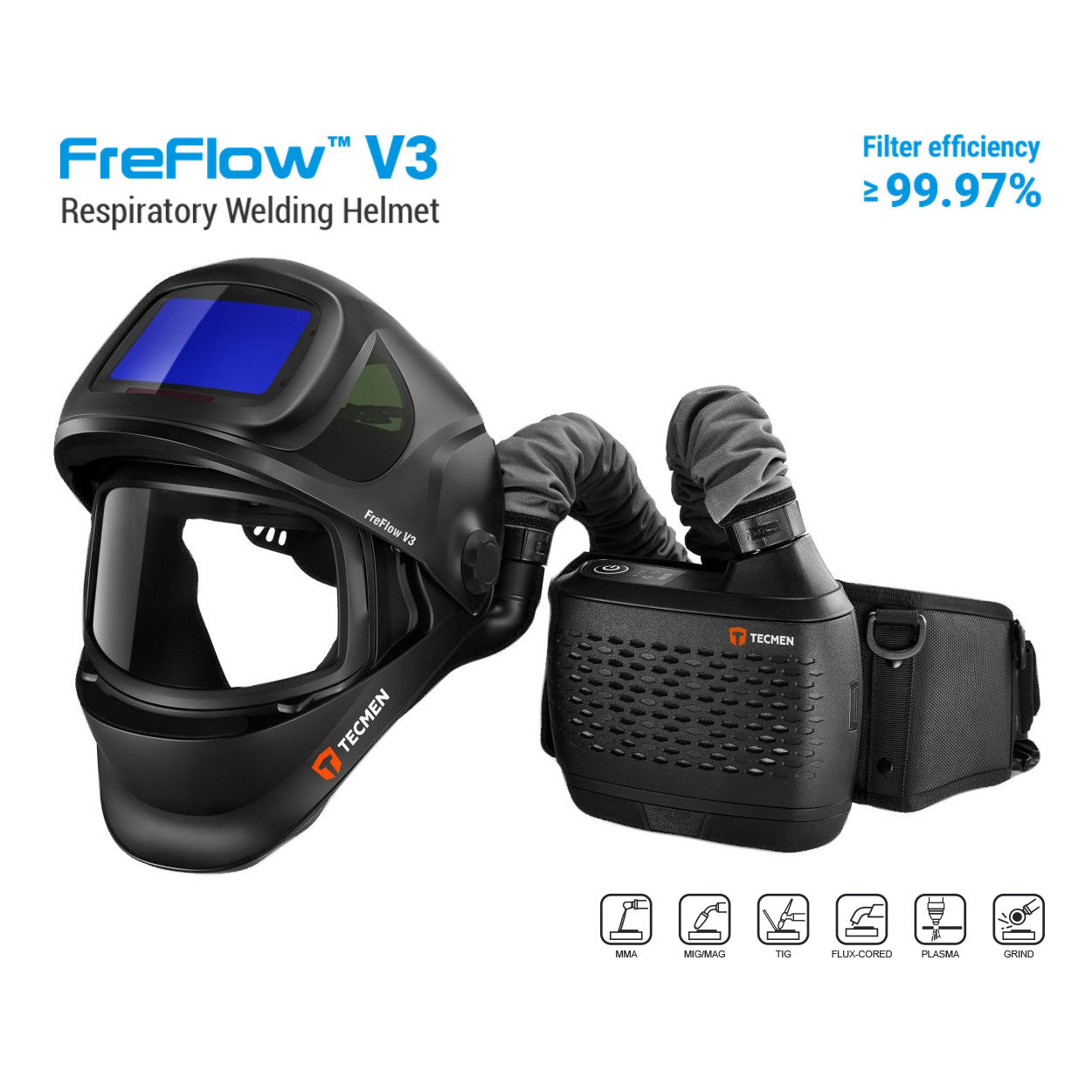

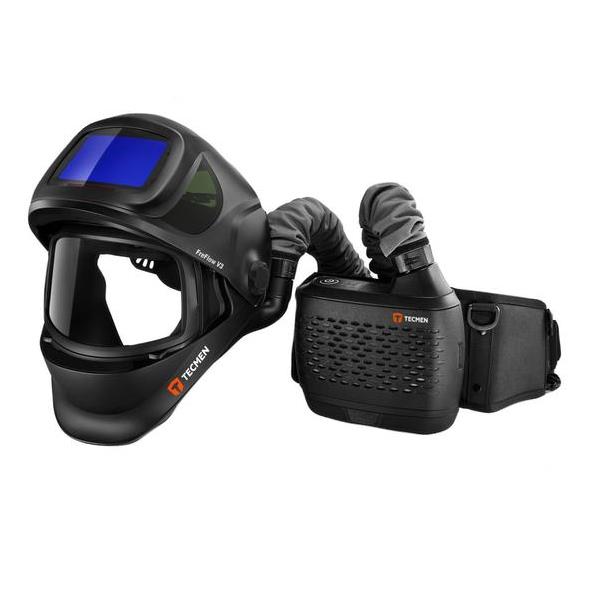

The Tecmen V3 PAPR FreFlow respirator system protects from inhalation of dust, pollutants, fine particles and other contaminates in the workplace.

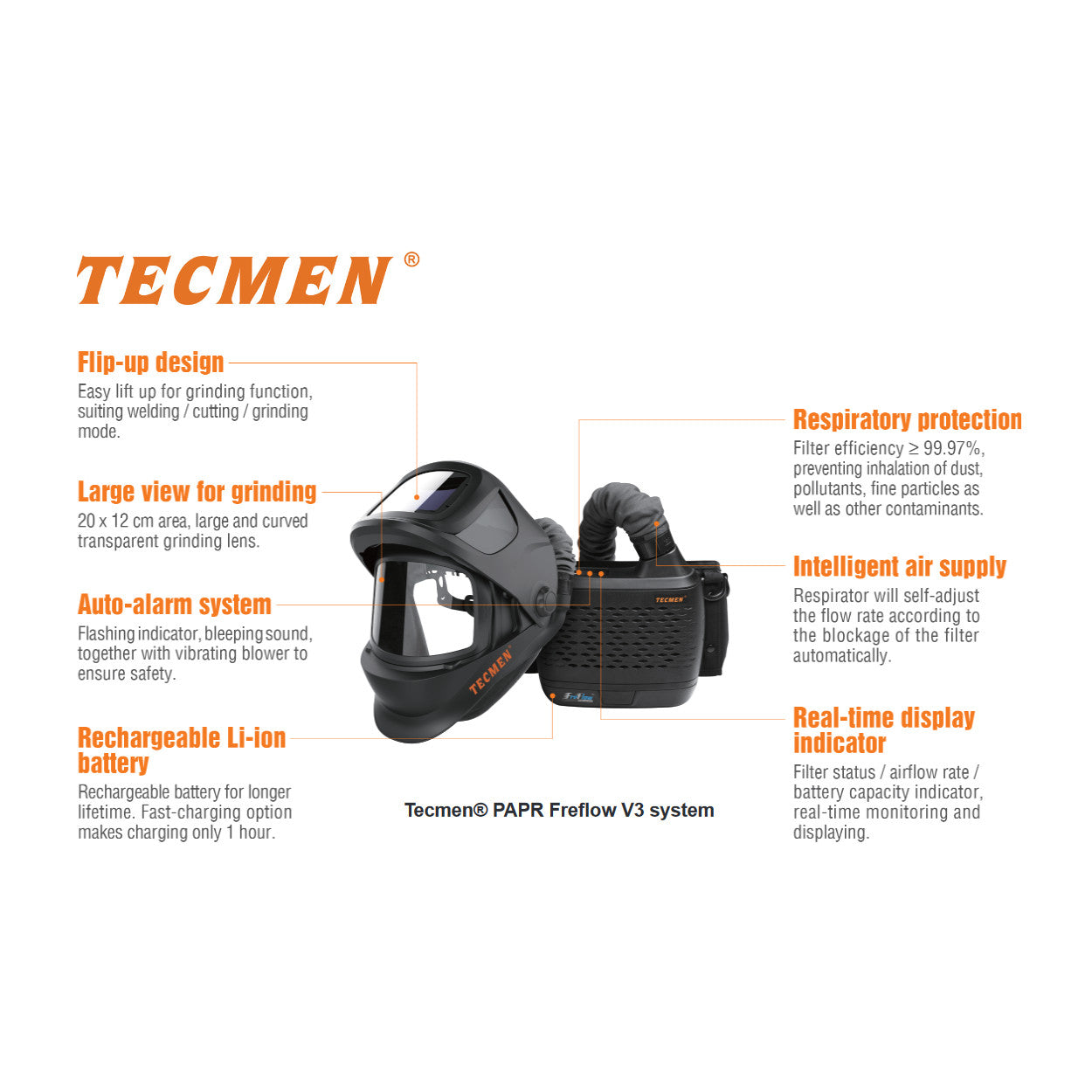

Welding helmet features include a flip up design with optical class 1/1/1/1 ADF950S iEXP and curved grinding visor with 20 x 12cm viewing area.

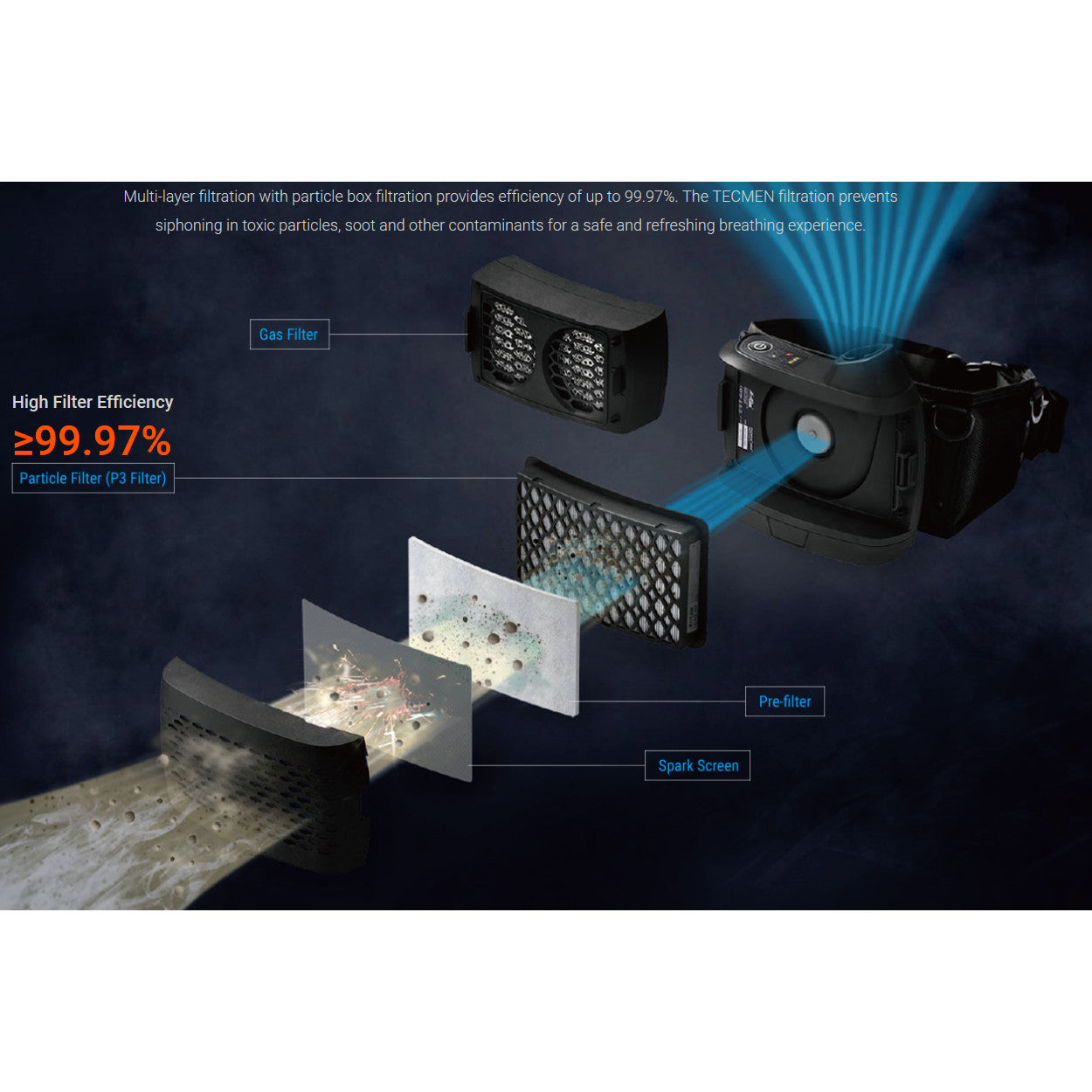

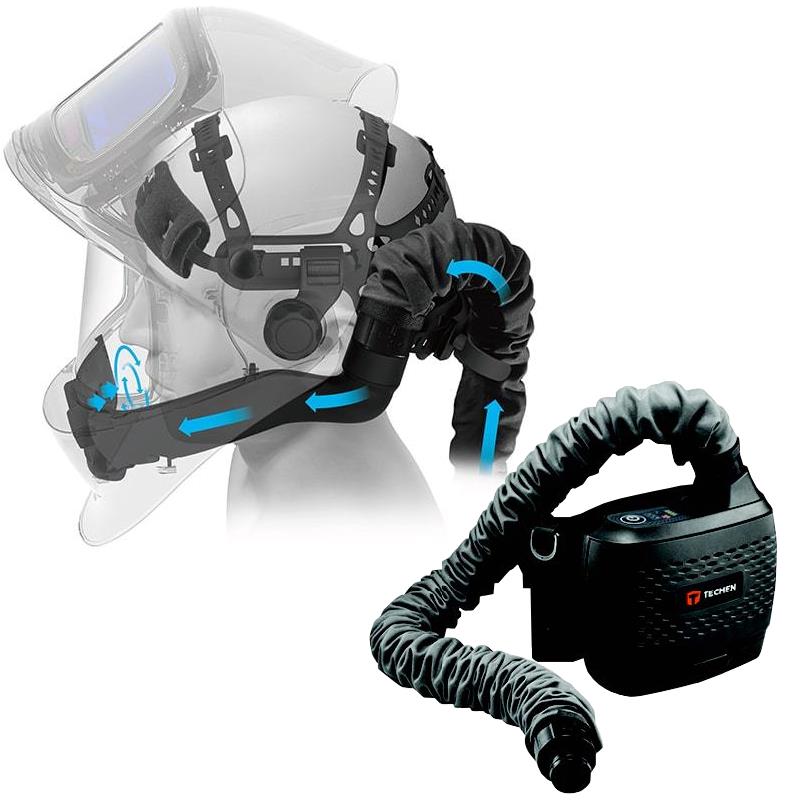

Tecmen Freflow powered air purifying respirator (PAPR) filter efficiency is ≥99.97. Blower unit features include real time digital display indicator and a rechargeable Li-ion battery for up to 9 hours use @ 170 litres per minute.
Safety features include audible, flashing and vibration alarms; designed to alert the operator of potential problems.
A full range of replacement parts for the Tecmen V3 helmet and FreFlow blower unit are available from stock.
Tecmen FreFlow PAPR Specification:
- Airflow Rate (LPM): Low (170) / High (210)
- Battery: Rechargeable Li-ion
- Standard Battery (Hours): Low (9)/ High (5-6)
- Heavy Duty Battery (Hours): Low (15)/ High (9)*
- Battery Charge: 1hr Std / 2hr Heavy Duty
- Battery Life: 550 charges
- Particle Filter P3
- Filter Efficiency: 99.97%
- Auto Alarms: Visible, Audible, Vibrate
- Operating Temp: -5°c to 55°c (23° to 131° F)
- Weight (Blower Unit & Battery): 1.2kg
Tecmen V3 Helmet Specification:
- Optical Class: 1/1/1/1
- Viewing Area: 107 x 75mm
- Cartridge: 156 x 123 x 33mm
- Grinding Lens View: 20 x 12cm
- Modes: Welding/Cutting/Grinding
- Arc Sensor: 4
- Light State: DIN 3.5
- Dark State: DIN 5-8 / 9-13
- Shade Control: Internal, Digital Display
- Power: Manually On/Off, Auto Off
- Sensitivity Control: Low-High, Digital Display
- UV/IR Protection: Up to DIN16
- Power Supply: Solar cell, 2 x CR2450 lithium battery
- Switching Time: 1/25,000 s light to dark
- Delay (Dark to Light): 0.1 ~ 1.0s by dial control
- Low Amperage TIG rated (AC - DC): ≥ 2 amps
- Applications: MMA, TIG, TIG Pulse, MIG Pulse, Plasma Cutting/Welding, Air Arc Gouging, Grinding
- FreFlow Blower Unit: EN12941 TH2, NIOSH 42 CFR84 AS/NZS 1716
- ADF950S iEXP Helmet: DIN plus, CE, ANSI Z87.1, CSAZ94.3, AS/NZS 1338.1
* Optional extra, sold separately
Part Number (SKU) SAFE4033
